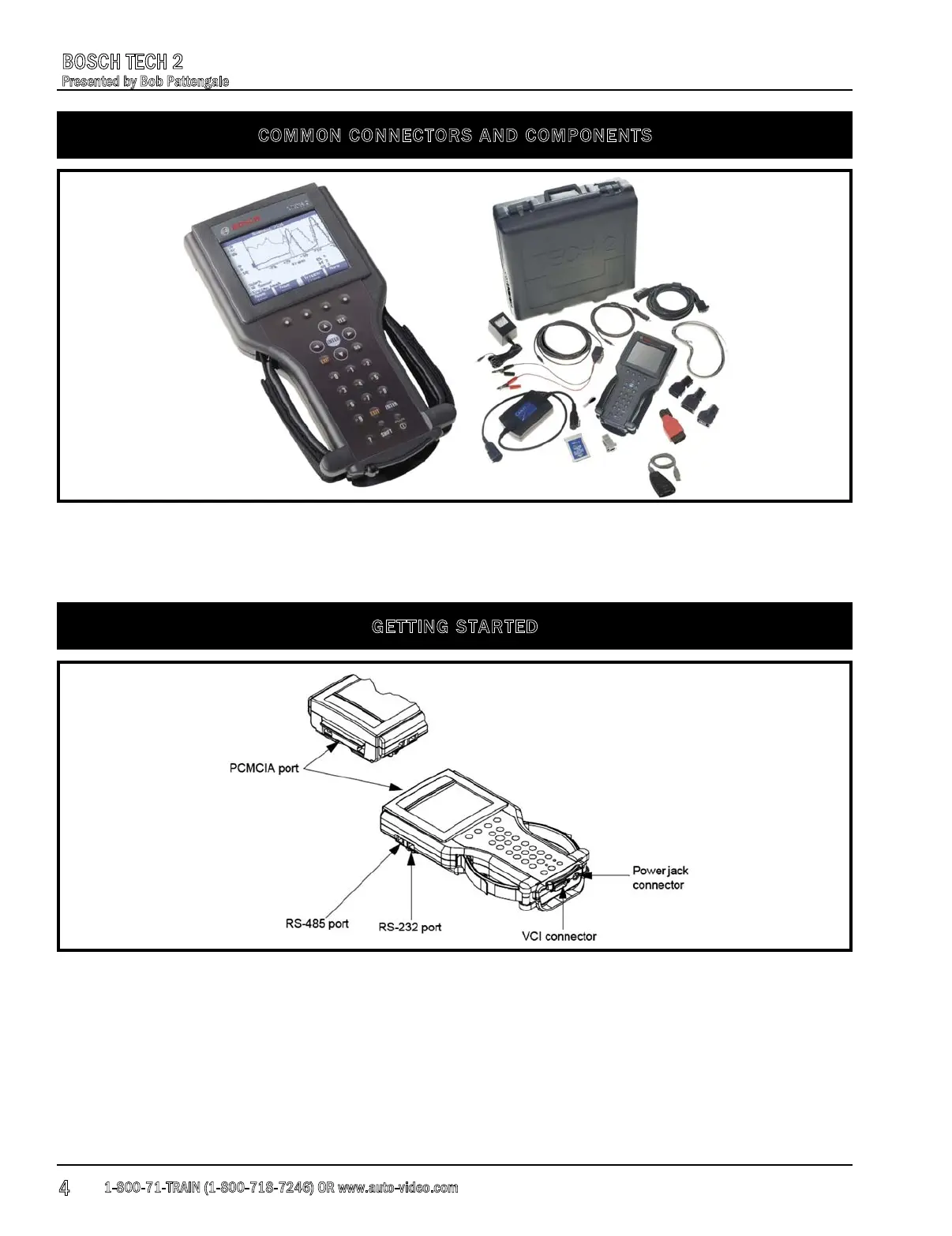

COMMON CONNECTORS AND COMPONENTS
Whey you purchase a Tech 2, you will find that it comes with many cables, components, and
connectors. The most critical pieces that you will use most are the Tech 2 itself, the data link
cable, the OBD II connector, and for the newer vehicles the CANDi module.
GETTING STARTED
The Tech 2 is ready to go right out of the box. There is a 32 MB data card inside of the tool that
has software already pre-loaded onto it. It may not be the most current software available, but it
will be ready to start working on vehicles.
The first thing you will want to do is make the cable connections to the tool and to the vehicle
that you will be working on. Connect the data link cable to the Tech 2, then the OBD II connector
to the data link cable. Once you have the tool connected to the cable, locate the data link
connector on the vehicle and plug the data link cable into the vehicle connector.
