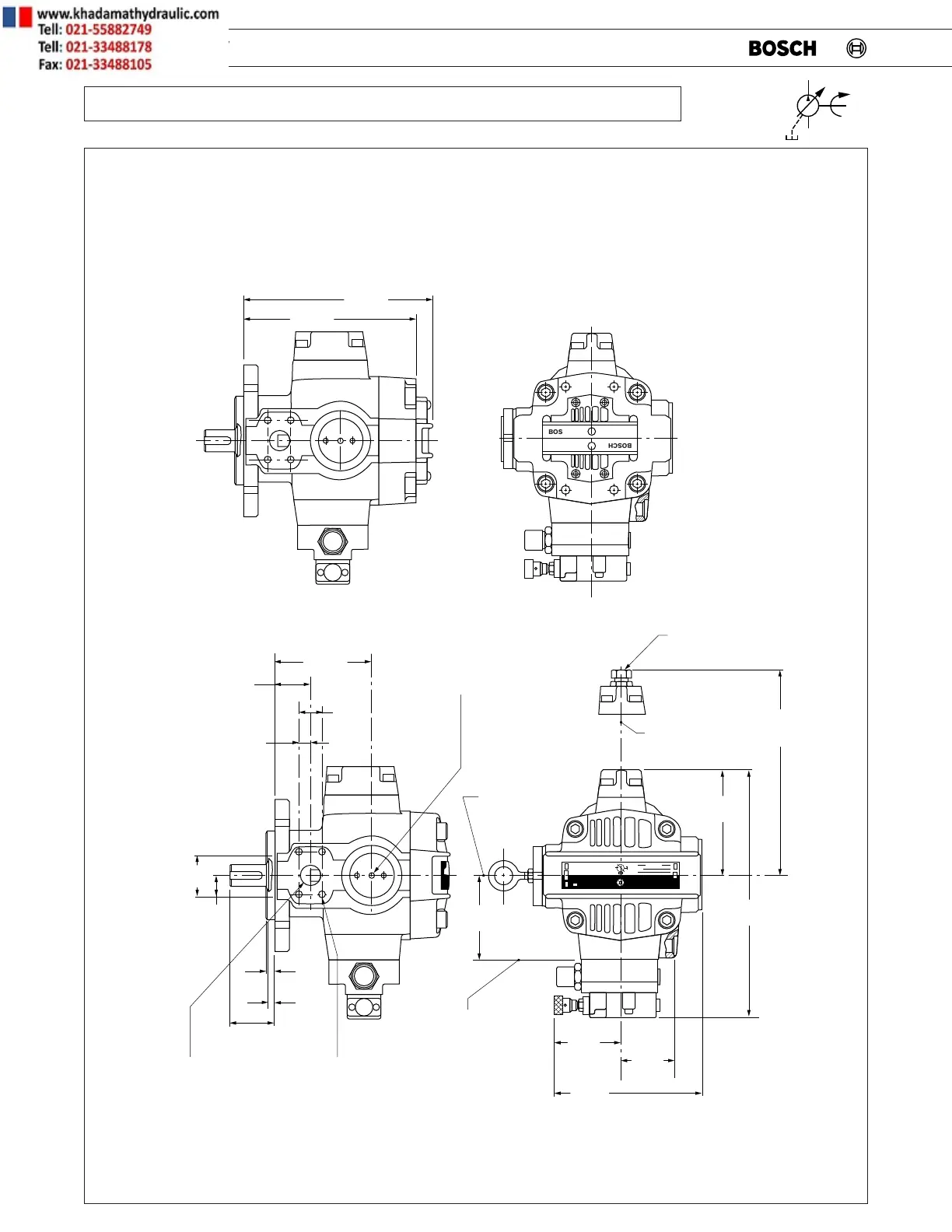

38 VPV Vane Pump
VPV 45/63/80, Single pump, Metric flange, RH Rotation, (continued)
BOSCH
OUT
IN
|
,y
,,yy
BOSCH
BOSCH
8.13
(206.7)
2.95
(75.0)
13.95
(354.5)
5.96
(151.4)
4.72
(120.0)
6.89
(174.9)
max.
Pump control
mounting Datum "T"
Pump centerline
Pump centerline
Optional volume control
(CW rotation reduces flow)
Support (Lift) point
M10 X 1.5-6H X 11.25 deep TH'D
5.36
(136.2)
10.55
(267.9)
Optional combination capable pump
with end cover (P1 Version)
9.64
(244.9)
2.04
(51.7)
1.19
(30.2)
0.59
(15.1)
2.31
(58.7)
1.16
(29.4)
2.70
(68.5)
0.36
(9.2)
0.41
(10.5)
Std. SAE 1-1/4" pad
pressure 1.25
dia.
(31.8)
M12
x
1.75 - -6H TH'D
4 holes
3.76
(95.7)
Inches (millimeters)
