Bosch VPV 16 - 3000 PSI Repair Parts

90 VPV Vane Pump
REPAIR KITS
SIZE SAE METRIC SAE “P1” METRIC “P1”
16 9 511 230 606 9 511 230 607 9 511 230 608 9 511 230 609
25 9 511 230 598 9 511 230 599 9 511 230 623 9 511 230 622
32 9 511 230 598 9 511 230 599 9 511 230 623 9 511 230 622
SEAL KITS
SIZE SAE METRIC
16 9 511 230 605 9 511 230 605
25/32 9 511 230 558 9 511 230 597
DESCRIPTION QTY
Key 1
Rotor shaft 1
Vane kit 1
Port plate, cover side 1
Roll pin 4
Thrust block kit 1
Bearing 2
Spacer ring 1
Pressure ring 1
Port plate, body side 1
Repair kits consists of:
Viton seal kits consist of:
3000 PSI Repair Parts – VPV 16/25/32
4
6
1
3
7
2
5
REF DESCRIPTION QTY
1 O-ring, (-011/75) 1
2 Back up ring 1
3 Piston 1
4 Body 1
5 Adjusting screw 1
6 Jam nut 1
7 O-Ring ASA-113 1
Repair kits consists of:

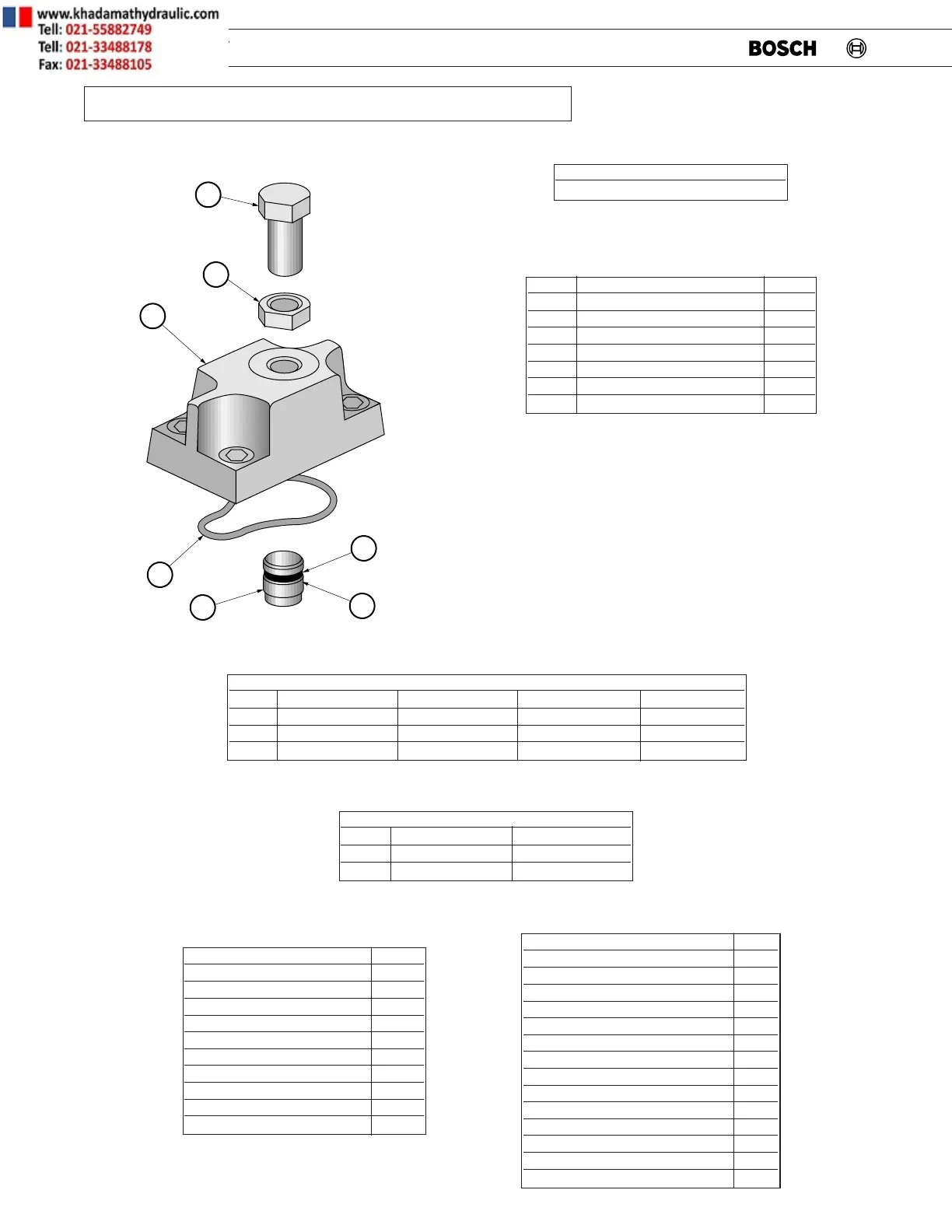

VOLUME CONTROL ASSEMBLY
9 537 232 004
(All o-rings durmoeter rating = 75)
Desc., VPV16/(VPV25/32) QTY
O-ring, ASA-111 / (ASA-111) 1
O-ring, ASA-110 / (ASA-110) 1
O-ring, ASA-127 / (ASA-136) 2
O-ring, ASA-128 / (ASA-128) 1
O-ring, ASA-026 / (ASA-028) 2
O-ring, ASA-151 / (ASA-152) 2
O-ring, ASA-031 / (ASA-031) 1
O-ring, ASA-156 / (ASA-160) 1
Back up ring 2
Shaft seal 1
O-ring, ASA-011 1
Back up ring 1
Control piston 1
Bias piston 1
