Bosch VPV 16 - Adapter Kits for VPV Combinations Using P1 Pumps

VPV Vane Pump 81

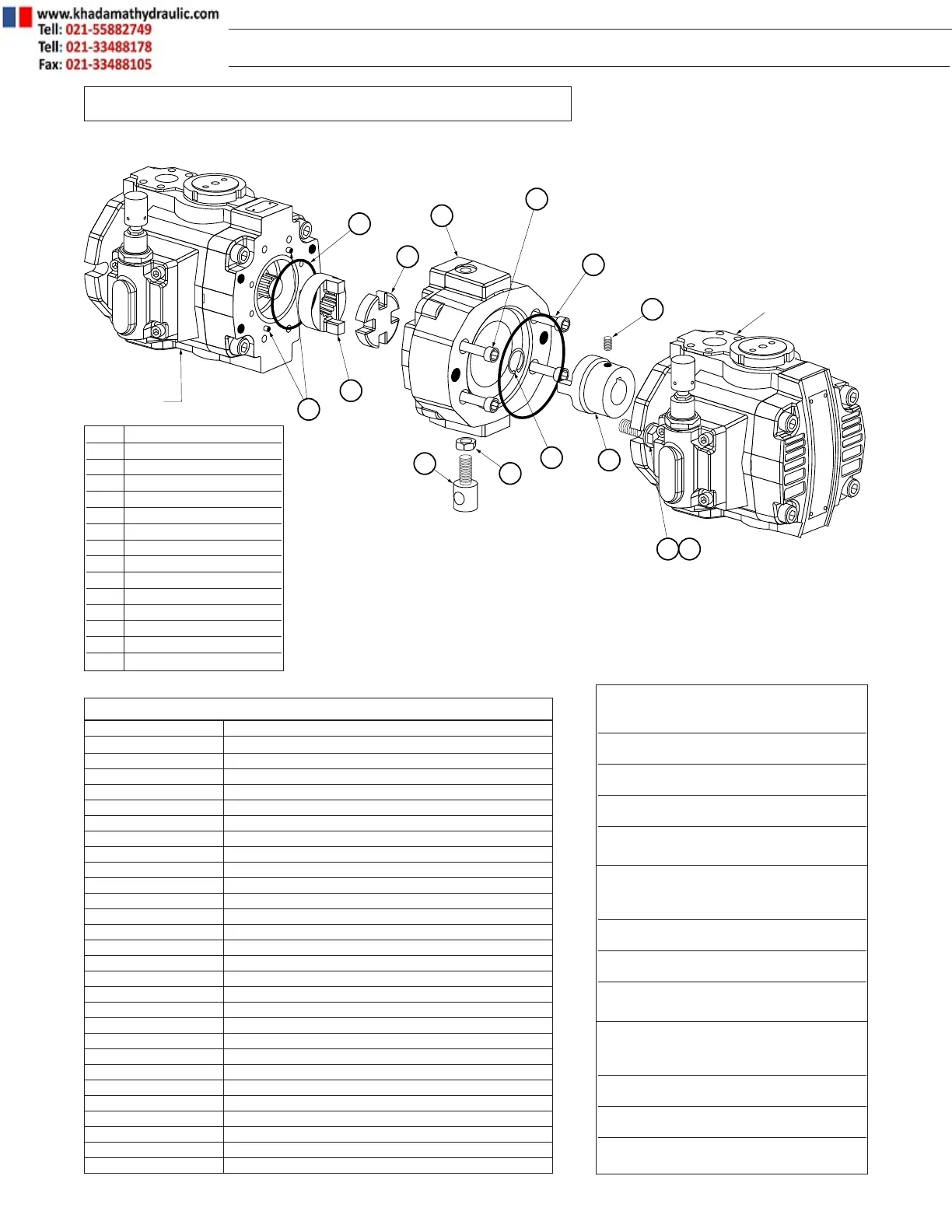

Adapter Kits for VPV Combinations Using “P1” Pumps
Lead pump
37
32
42
41
34
35
39 40
44
38
43
45
36
33
Trailing pump
See torque note #3
See torque note #2
See torque note #1
LIST NUMBER DESCRIPTION
9 511 230 518 VPV 16 to VPV 16 SAE
9 511 230 520 VPV 16 to VPV 16 Metric
9 511 230 521 VPV 16 to SAE “F” Gear
9 511 230 522 VPV 25/32 to VPV 25/32 Metric
9 511 230 523 VPV 25/32 to VPV 25/32 SAE
9 511 230 524 VPV 25/32 to VPV 16 Metric
9 511 230 525 VPV 25/32 to VPV 16 SAE
9 511 230 526 VPV Metric/SAE 25/32 to SAE “F” Gear
9 511 230 527 VPV 45/63/80 to VPV 45/63/80 Metric
9 511 230 528 VPV 45/63/80 to VPV 45/63/80 SAE
9 511 230 529 VPV 45/63/80 to VPV 25/32 Metric
9 511 230 530 VPV 45/63/80 to VPV 25/32 SAE
9 511 230 531 VPV 45/63/80 to VPV 16 Metric
9 511 230 532 VPV 45/63/80 to VPV 16 SAE
9 511 230 533 VPV Metric/SAE 45/63/80 to SAE “F” Gear
9 511 230 534 VPV Metric/SAE 45/63/80 to SAE “G” Gear
9 511 230 535 VPV Metric 100/130/164 to VPV 100/130/164
9 511 230 536 VPV SAE 100/130/164 to VPV 100/130/164
9 511 230 537 VPV Metric 100/130/164 to VPV 45/63/80
9 511 230 538 VPV SAE 100/130/164 to VPV 45/63/80
9 511 230 539 VPV Metric 100/130/164 to VPV 25/32
9 511 230 540 VPV SAE 100/130/164 to VPV 25/32
9 511 230 541 VPV Metric 100/130/164 to VPV 16
9 511 230 542 VPV SAE 100/130/164 to VPV 16
9 511 230 543 VPV Metric/SAE 100/130/164 to SAE “F” Gear
9 511 230 554 VPV Metric/SAE 32/25 to SAE “G” Gear
9 511 230 594 VPV Metric/SAE 100/130/164 to SAE “G” Gear
9 511 230 590 VPV Metric/SAE 100/130/164 to SAE “B” Spline
ADAPTER KITS
REF DESCRIPTION
32 Coupling half, spline
33 Coupling disc
34 Retaining ring
35 Coupling half, combo
36 Set screw
37 Roll pin
38 Adapter
39 Washer
40 Hex head cap screw
41 Jam nut
42 Support
43 Soc. head cap screw
44 O-ring, ASA-043
45 O-ring
Torque Note #1
Torque to 2000 lb/in
(Torque to 225 Nm)
“VPV 100/130/164”
Torque to 1800 lb/in
(Torque to 204 Nm)
“VPV 45/63/80”
Torque to 1050 lb/in
(Torque to 119 Nm)
“VPV 25/32”
Torque to 780 lb/in “VPV 16” & Type
(Torque to 88 Nm) ‘G’ gear pump
Torque to 550 lb/in
(Torque to 62 Nm)
Type ‘F’ gear pump
Torque Note #2
Torque to 2300 lb/in
(Torque to 260 Nm)
“VPV 100/130/164”
Torque to 850 lb/in
(Torque to 96 Nm)
“VPV 45/63/80”
Torque to 550 lb/in “VPV 25/32” & Type
(Torque to 62 Nm) ‘G’ gear pump
Torque to 400 lb/in “VPV 16” & Type
(Torque to 46 Nm) ‘F’ gear pump
Torque Note #3
Torque to 800 lb/in
(Torque to 90 Nm)
“VPV 100/130/164”
Torque to 330 lb/in
(Torque to 37 Nm)
“VPV 45/63/80”
Torque to 280 lb/in “VPV 25/32” & Type
(Torque to 31.5 Nm) ‘G’ gear pump
Torque to 200 lb/in
(Torque to 22.5 Nm)
Type ‘F’ gear pump
