Bosch VPV 16 - 2000 PSI Repair Parts

84 VPV Vane Pump
2000 PSI Repair Parts – VPV 16/25/32
REPAIR KITS
SIZE SAE METRIC
16 9 511 230 504 9 511 230 505
25 9 511 230 506 9 511 230 507
32 9 511 230 506 9 511 230 507
SEAL KITS
SIZE SAE METRIC
16 9 511 230 500 9 511 230 500
25 9 511 230 501 9 511 230 501
32 9 511 230 501 9 511 230 501

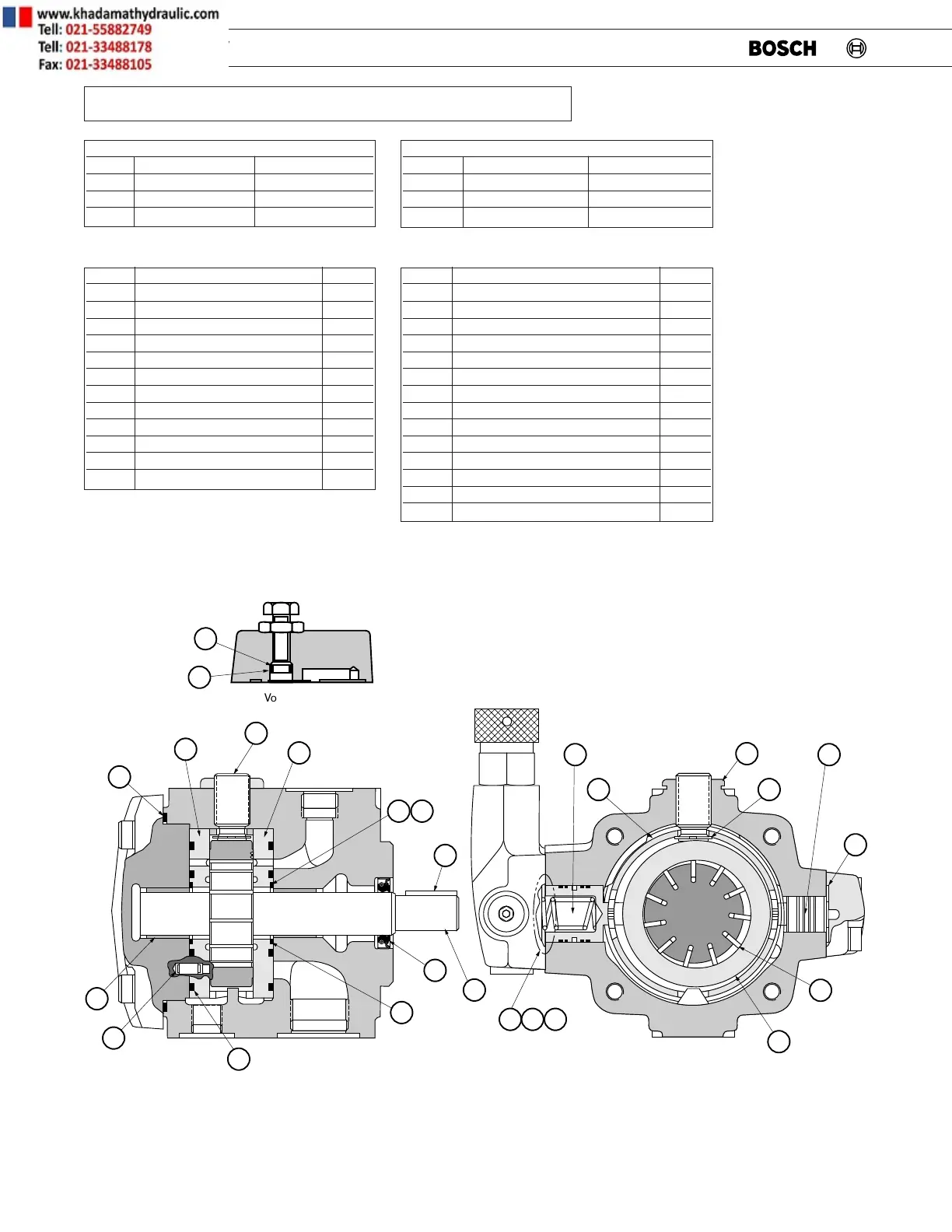

REF DESCRIPTION QTY
1 Key 1
2 Roll pin 4
3 Vane set 1
4 Spacer ring 1
5 Pressure ring 1
6 Port plate, body 1
7 Port plate, cover 1
8 Thrust screw 1
9 Lock nut 1
10 Shaft 1
11 Retaining ring (VPV 16) 1
12 Bearing 2
Repair kits consists of:
REF DESC., VPV16/(VPV25/32) QTY
13 O-ring, ASA-111 / (ASA-111) 1
14 O-ring, ASA-110 / (ASA-110) 1
15 O-ring, ASA-127 / (ASA-136) 2
16 O-ring, ASA-128 / (ASA-128) 1
17 O-ring, ASA-026 / (ASA-028) 2
18 O-ring, ASA-151 / (ASA-152) 2
19 O-ring, ASA-031 / (ASA-031) 1
20 O-ring, ASA-156 / (ASA-160) 1
21 Back up ring 2
22 Shaft seal 1
23 O-ring, ASA-011 1
24 Back up ring 1
25 Control piston 1
26 Bias piston 1
Repair kits consists of:
(All O-rings durometer rating = 75)
,
Volume control
24
23
7
8
6
21 18
1
4
25 26
9
11
19
3
5
13 14 16
22
10
17
15
2
12
20
