VPV Vane Pump 85

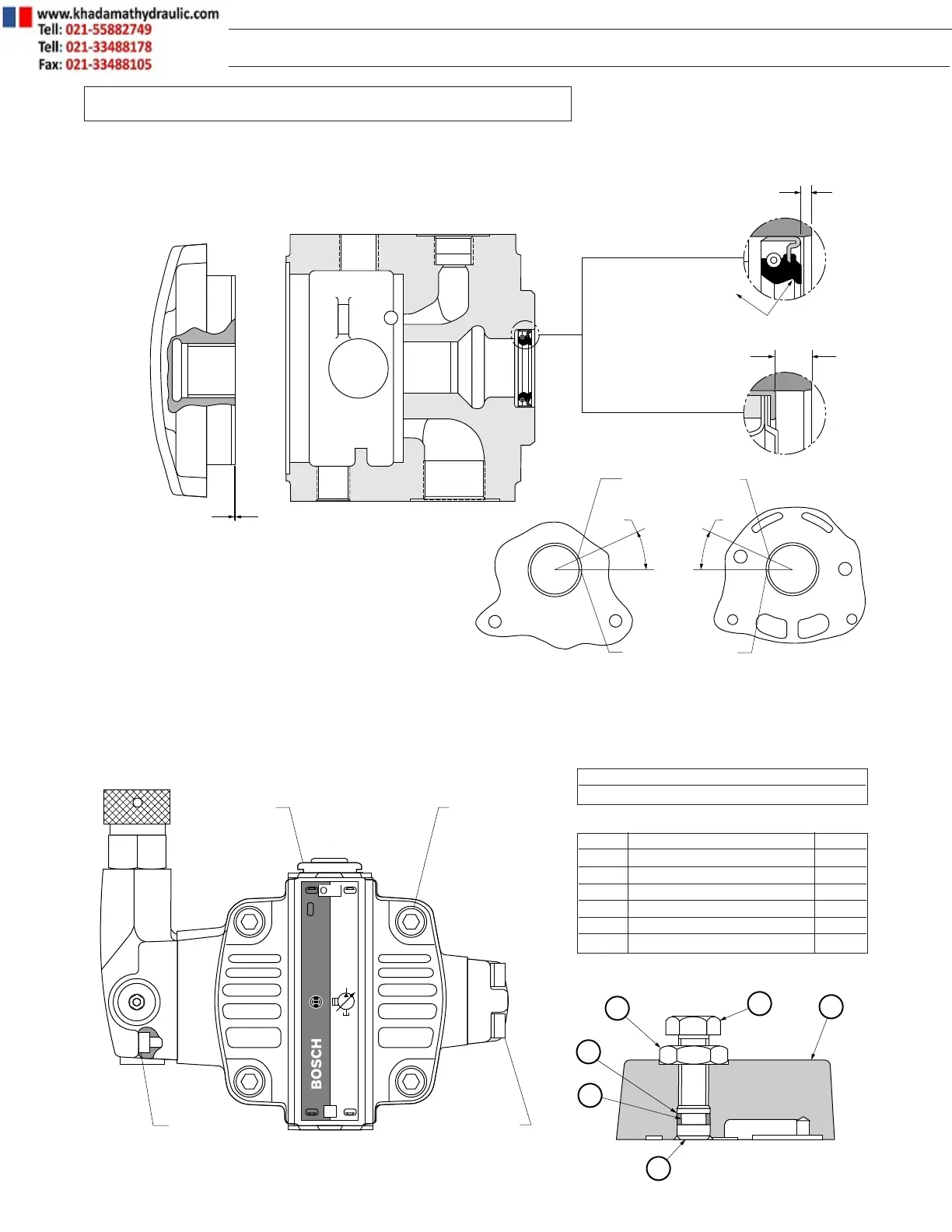

2000 PSI Repair Parts – VPV 16/25/32
INSTALL BEARINGS
FLUSH ±0.25mm with
LUBRICATING OIL
(For cover & body)
25°25°
Orientation of bearing
lube slot
Orientation of bearing
seam assemblyslot
2.0±0.5mm
6.7±0.5mm
Pack grease into space
between oil lip & dust lip.
Rec. MOBILUX EP2
#44-002=-0011
(VPV16 ONLY)
VPV 25/32
VPV 16
Apply loctite sealant #569
to bore & inistall to depth
shown.
COVER BEARING BODY BEARING
INSTALLATION NOTES

OUT
IN
883
TORQUE TO
300 LB-IN
(34 Nm)
TORQUE TO
300 LB-IN
(34 Nm)
TORQUE TO
700 LB-IN
(79 Nm)
TORQUE TO
960 LB-IN
(108 Nm)
4
5
6
2
1
3
TORQUE RATINGS
REF DESCRIPTION QTY
1 O-ring (-011 / 75) 1
2 Back up ring 1
3 Piston 1
4 Body 1
5 Adjusting screw 1
6 Jam nut 1
Assembly consists of:
VOLUME CONTROL ASSEMBLY
9 537 232 000
Contact technical support for
recommended tool for pulling
bearings.
(414) 554-8595 ext 630 or 701.
