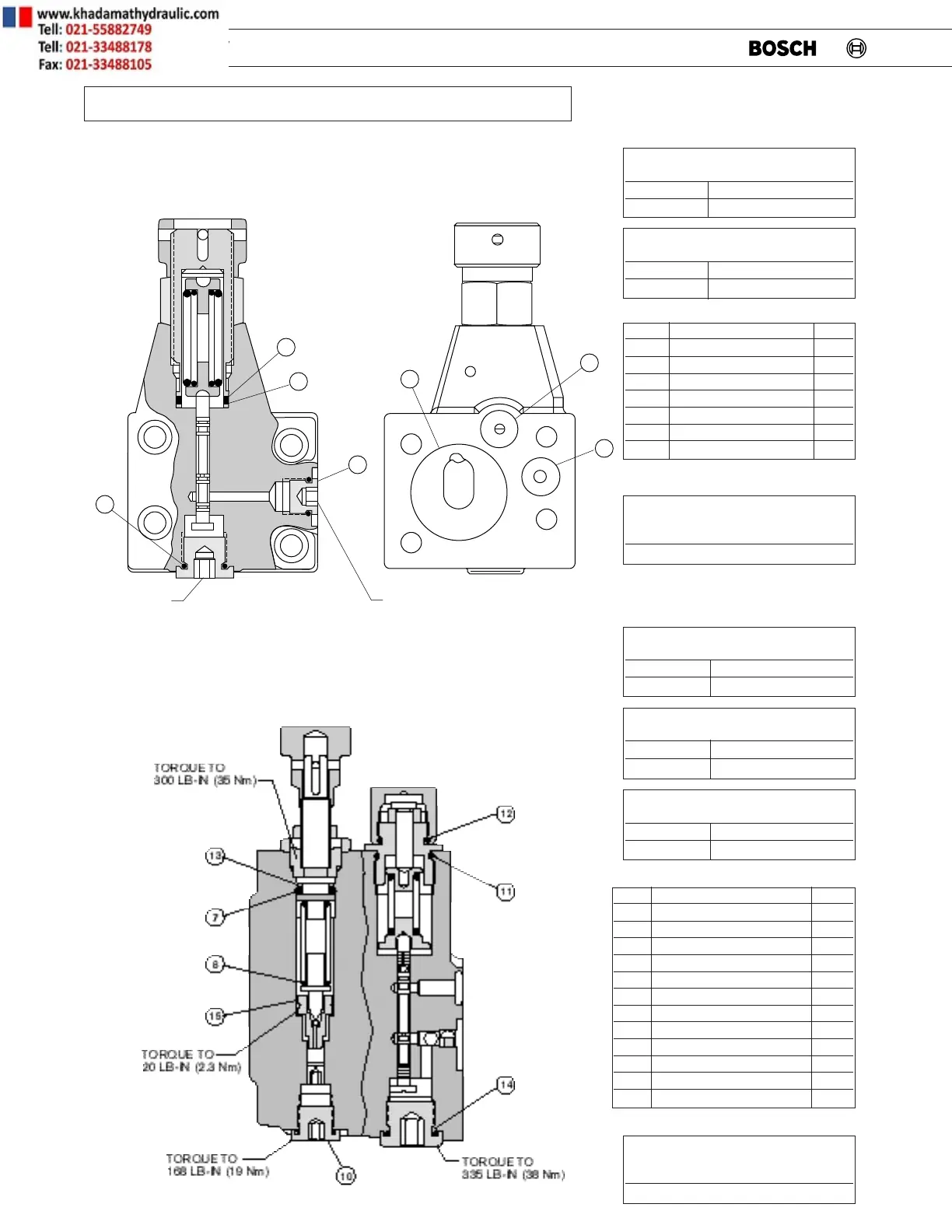

86 VPV Vane Pump
2000 PSI Repair Parts – VPV 16/25/32
7
6
4
2
5
3
1
TORQUE TO
335 LB-IN (38 Nm)
TORQUE TO
168 LB-IN (19 Nm)
REF DESCRIPTION QTY
1 O-ring (-011 / 75) 1
2 Plug w/ O- ring 1
3 O-ring (-110 / 75) 1
4 O-ring (-018 / 75) 1
5 O-ring (-128 / 75) * 1
6 Back up ring 1
7 O-ring 1
COMPLETE ASSSEMBLY FOR
SINGLE STAGE COMPENSATOR
SAE 9 511 230 513
METRIC 9 511 230 512
REPAIR KIT FOR
SINGLE STAGE COMPENSATOR
SAE 9 511 230 624
METRIC 9 511 230 510
Repair kit consists of:
REF DESC. (ASA#/durometer) QTY
1* O-ring (-111 / 75) 2
2* Plug w/ O-ring 1
3* O-ring (-110 / 75) 1
5* O-ring (-128 / 75) 1
7 O-ring (-111 / 75) 1
8 Poppet second stage 1
10 Plug w/ O-ring 1
11 O-ring (-910 / 75) 1
12 O-ring (-908 / 75) 1
13 Back up ring 1
14 O-ring 1
15 Poppet seat w/ O-ring 1
COMPLETE ASSSEMBLY FOR
TWO-STAGE COMPENSATOR
SAE 9 511 230 514
METRIC 9 511 230 515
COMPLETE ASSEMBLY FOR
LOAD SENSE
SAE 9 511 230 600
METRIC Consult factory
REPAIR KIT FOR
TWO-STAGE COMPENSATOR
SAE 9 511 230 624
METRIC 9 511 230 516
Repair kit consists of:
TWO-STAGE COMPENSATOR
SINGLE STAGE COMPENSATOR
*=See above view for location of Ref. #1, 2, 3,5
*=If O-ring is teardrop shape
use 9 511 230 511 (SAE)
BOLT KIT FOR
MOUNTING SINGLE STAGE
TO VPV 16/25/32 (M8 X 1.25 X 25)
9 539 232 012
BOLT KIT FOR MOUNTING TWO STAGE
& SOLENOID COMPENSATORS TO
VPV 16/25/32 (M8 X 1.25 X 45)
9 539 232 013
