Bosch VPV 16 - Page 92

VPV Vane Pump 91

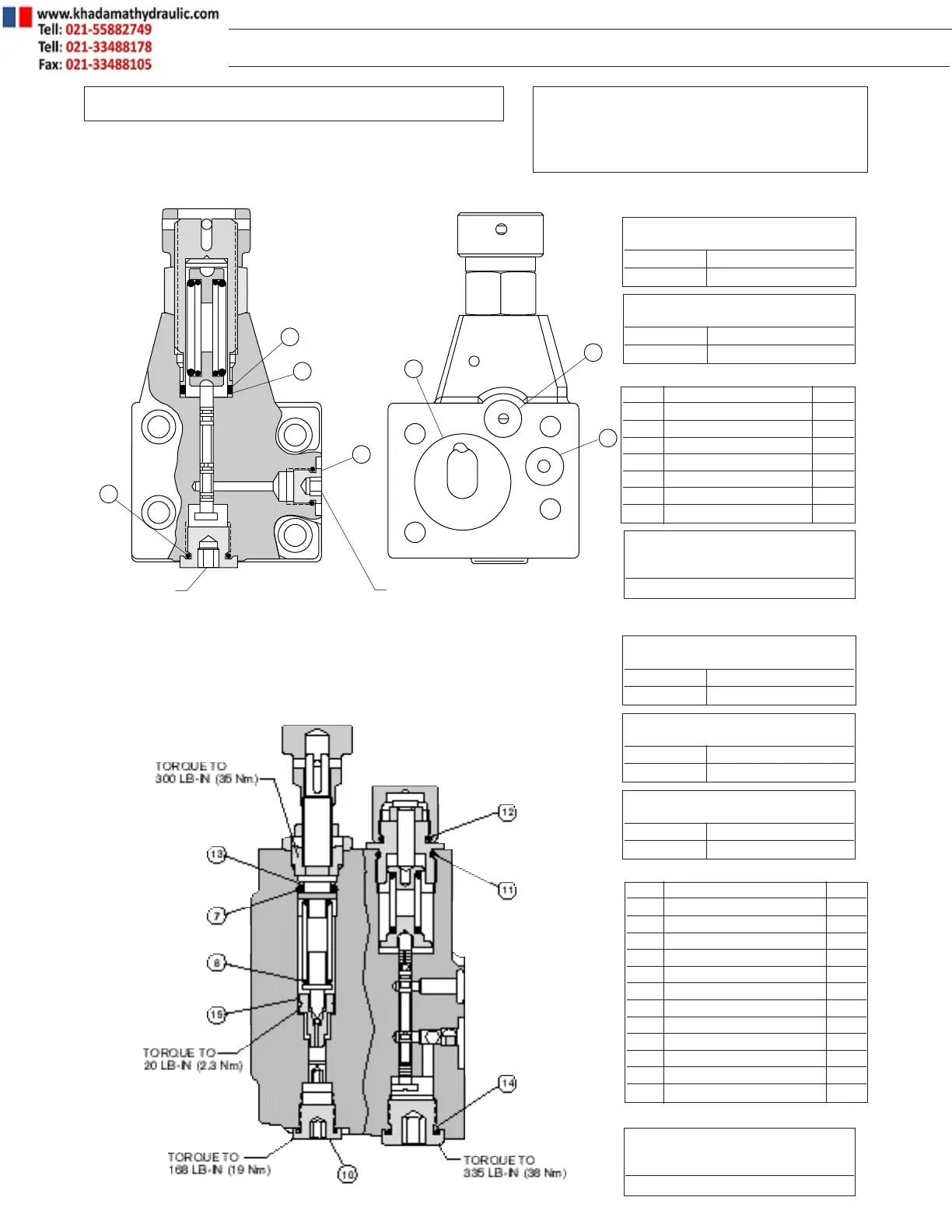

3000 PSI Repair Parts – VPV 16/25/32
7
6
4
2
5
3
1
TORQUE TO
335 LB-IN (38 Nm)
TORQUE TO
168 LB-IN (19 Nm)
REF DESCRIPTION QTY
1 O-ring (-011 / 75) 1
2 Plug w/ O- ring 1
3 O-ring (-110 / 75) 1
4 O-ring (-018 / 75) 1
5 O-ring (-128 / 75) 1
6 Back up ring 1
7 O-ring 1
COMPLETE ASSSEMBLY FOR
SINGLE STAGE COMPENSATOR
SAE 9 511 230 595
METRIC 9 511 230 596
REPAIR KIT FOR
SINGLE STAGE COMPENSATOR
SAE 9 511 230 625
METRIC 9 511 230 626
Repair kit consists of:
REF DESC. (ASA#/durometer) QTY
1* O-ring (-111 / 75) 2
2* Plug w/ O-ring 1
3* O-ring (-110 / 75) 1
5* O-ring (-128 / 75) 1
7 O-ring (-111 / 75) 1
8 Poppet second stage 1
10 Plug w/ O-ring 1
11 O-ring (-910 / 75) 1
12 O-ring (-908 / 75) 1
13 Back up ring 1
14 O-ring 1
15 Poppet seat w/ O-ring 1
COMPLETE ASSSEMBLY FOR
TWO-STAGE COMPENSATOR
SAE 9 511 230 601
METRIC 9 511 230 602
COMPLETE ASSEMBLY FOR
LOAD SENSE
SAE 9 511 230 603
METRIC 9 511 230 604
REPAIR KIT FOR
TWO-STAGE COMPENSATOR
SAE 9 511 230 627
METRIC 9 511 230 628
Repair kit consists of:
TWO-STAGE COMPENSATOR
SINGLE STAGE COMPENSATOR
*=See above view for location of Ref. #1, 2, 3,5
ATTENTION: These compensators are rated for 210
bar (3000 psi) operation. Install only on pumps rated at
210 bar (3000 psi). Activating shock clipper is highly
recommended on all applications greater than 140 bar
(2000 psi). Install unrestricted line back to tank.
BOLT KIT FOR
MOUNTING SINGLE STAGE
TO VPV 16/25/32 (M8 X 1.25 X 25)
9 539 232 012
BOLT KIT FOR MOUNTING TWO STAGE
& SOLENOID COMPENSATORS TO
VPV 16/25/32 (M8 X 1.25 X 45)
9 539 232 013
