VPV Vane Pump 65
VPV 100/130/164 to VPV 16 (continued)
{
|
BOSCH
,y
BOSCH
OUT
IN
ø6.30
(ø160.0)
.36
(9.25)
.40
(10.1)
3.62
(92.1)
ø6.00
(ø152.4)
.32
(8.1)
0.49
(12.45)
2.96
(75.1)

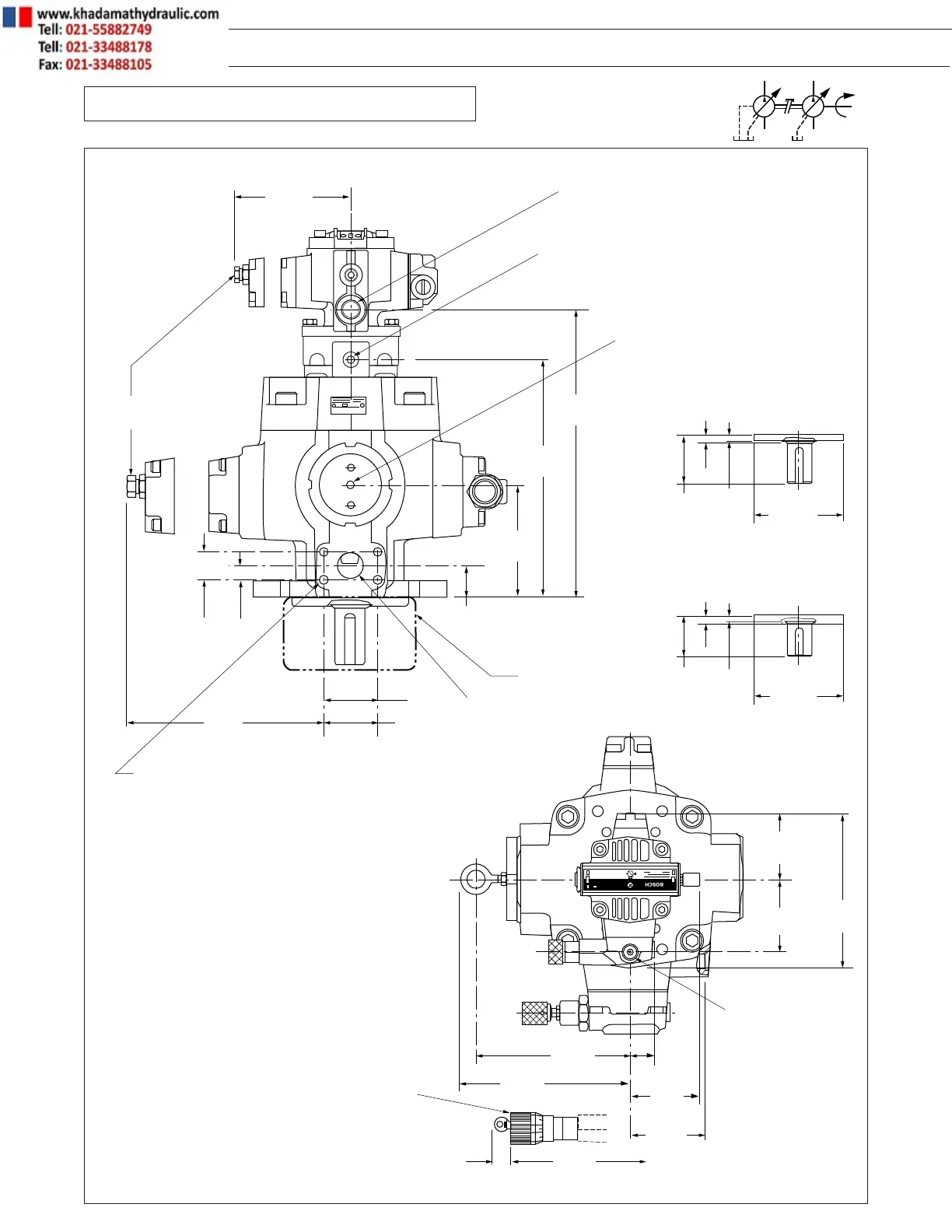

Detail SAE1
Detail METRIC1
View A-A
(SH.1 @ P-1)
3.84
(97.6)
1.35
(34.4)
4.15
(105.5)
4.46
(113.4)
4.65
(118.0)
8.41
(213.7)
9.24
(234.7)
9.90
(251.5)
View B-B
(SH.1 @ G-1)
1.41
(35.7)
.70
(17.9)
6.20
(157.4)
12.87
(326.9)
15.99
(406.1)
Support (Lift) point
"SAE" 3/8"-16 UNC-2B TH'D X .59
deep
(15.0)
"METRIC" M10 x 1.5-6H TH'D X .59
deep
(15.0)
Optional volume control
(CW rotation reduces flow)
Outlet port
Std. S.A.E. 1-1/2" pad
ø1.46
(ø37.1)
4.81
(122.3)
max.
1.86
(47.3)
2.75
(69.9)
1.38
(34.9)
"SAE" 1/2"-13UNC-2B TH'D X 1.10
deep
"METRIC" M12 X 1.75-6H TH'D (28.0)
See detail
"SAE1/METRIC1"
.94
(23.8)
6.50
(165.1)
Optional VPV25/32
single stage
compensator with
locking device
Control drain
“SAE” #6 S.A.E.
“METRIC” 3/8-19 BSPP
Outlet port
“SAE” #12 SAE
“METRIC” 1/2-14 BSPP
Support (Lift) point
“SAE & METRIC”
M10 X 1.5-6H TH’D
X
.43
deep
(11.0)
8.57
(217.7)
max.
Inches (millimeters)
