Bose 3-2-1 SERIES II User Manual

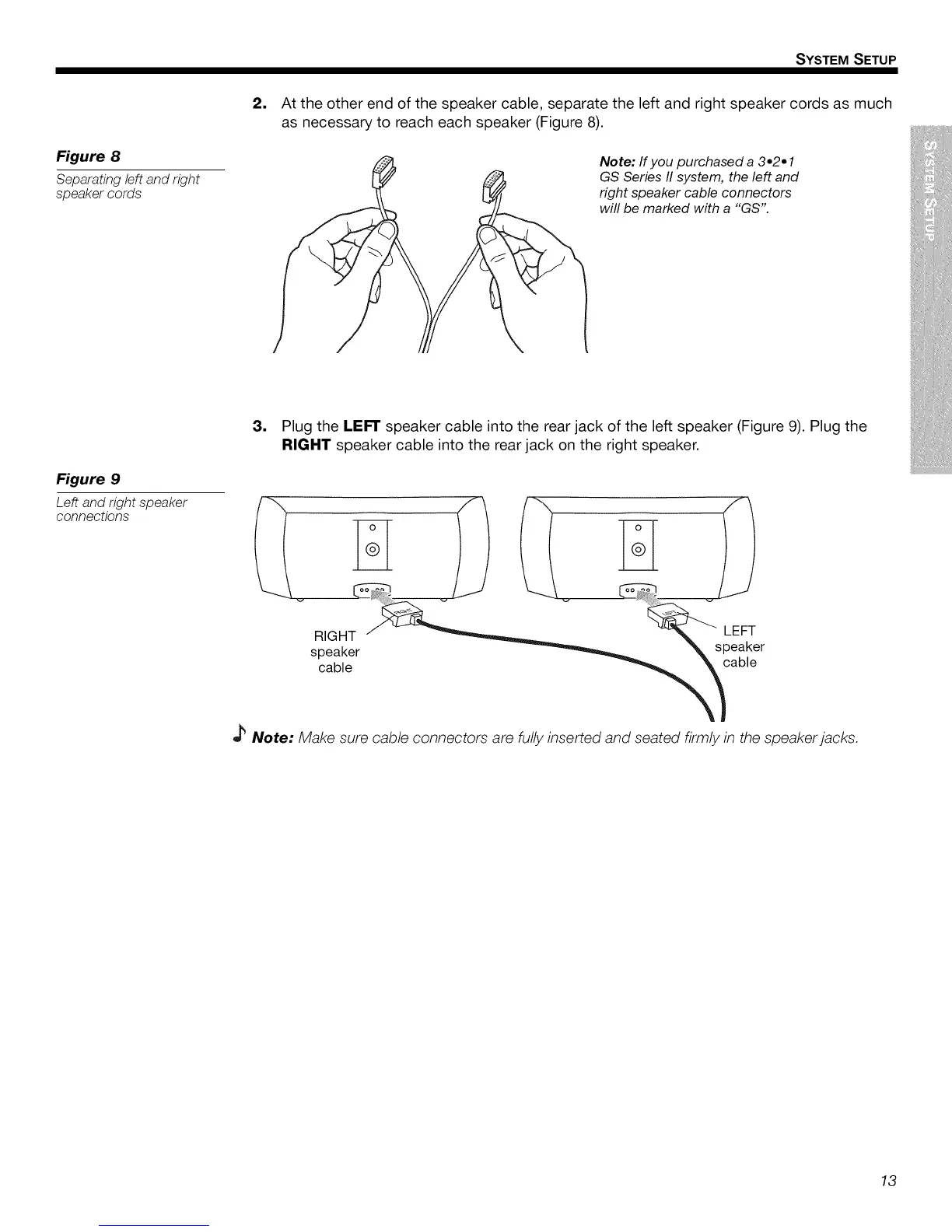

SYSTEM SETUP
Figure 8
Separating left and right
speaker cords
=
At the other end of the speaker cable, separate the left and right speaker cords as much
as necessary to reach each speaker (Figure 8).
Note: If you purchased a 3.2.1
GS Series II system, the left and
right speaker cable connectors
will be marked with a "GS".
\
Figure 9
Left and right speaker
connections
3. Plug the LEFt speaker cable into the rear jack of the left speaker (Figure 9). Plug the
RIGHT speaker cable into the rear jack on the right speaker.
RIGHT _ - _ LEFT
speb_er ___ _SPce b_er
Note: Make sure cable connectors are fully inserted and seated firmly in the speaker jacks.
13

Bose 3-2-1 SERIES II Specifications

General

Number of Speakers	2
Subwoofer	Acoustimass Module
AM/FM Tuner	Yes
Remote Control	Yes
Audio Channels	2.1
System Type	2.1 Home Theater System
Media Playback	DVD, CD
Outputs	Composite Video
