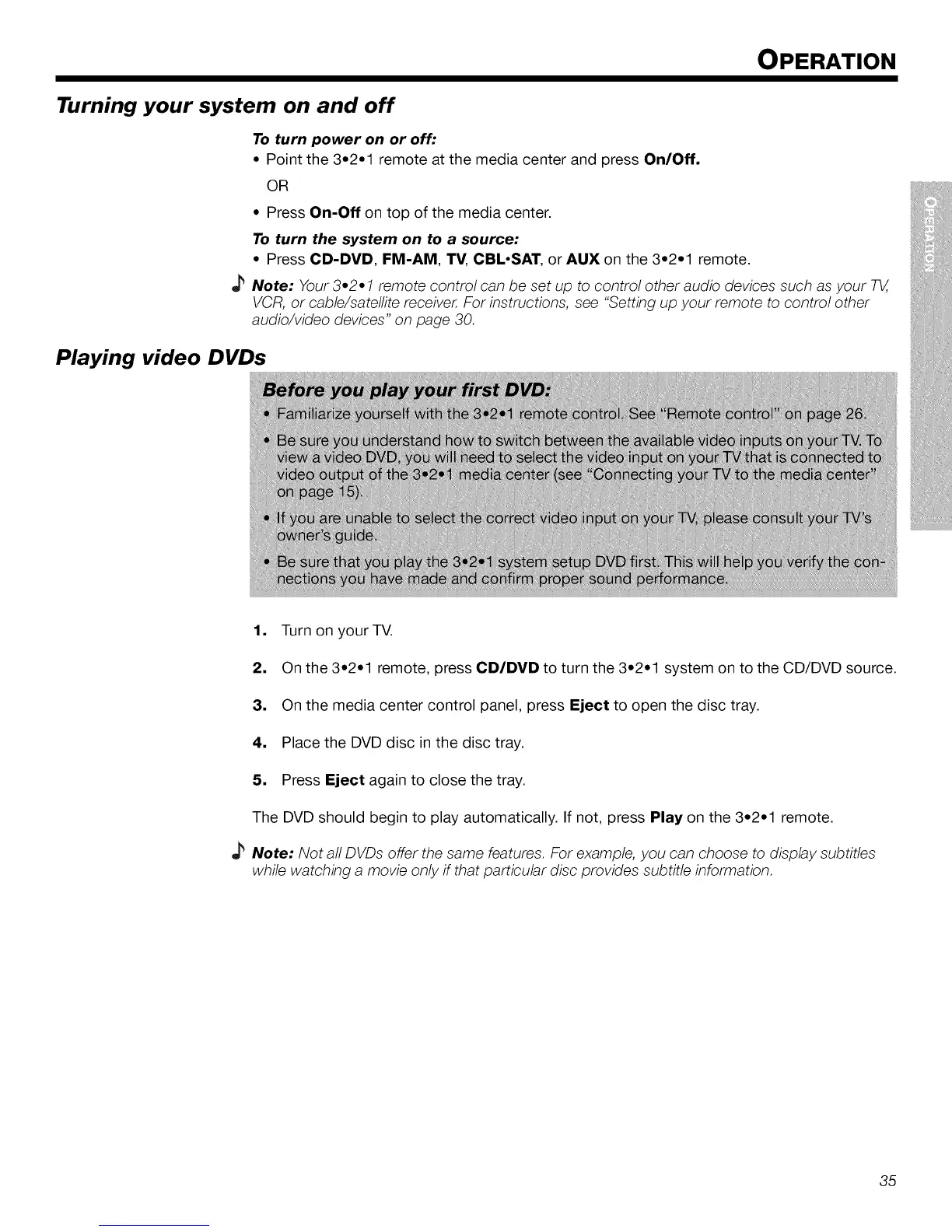

OPERATION
Turning your system on and off
To turn power on or off:
Point the 3.2.1 remote at the media center and press On/Off.
OR
Press On-Off on top of the media center.
To turn the system on to a source:
Press CD-DVD, FM-AM, TV, CBL.SAT, or AUX on the 3.2.1 remote.
ob Note: Your 3.2.1 remote control can be set up to control other audio devices such as your 7V,,
VCR, or cable/satellite receiver. For instructions, see "Setting up your remote to control other
audio/video devices" on page 30.
Playing video DVDs
eristaa;i#
hei!:ii_2
to sere
1. Turn on your TV.
2. On the 3.2.1 remote, press CD/DVD to turn the 3.2.1 system on to the CD/DVD source.
3. On the media center control panel, press Eject to open the disc tray.
4. Place the DVD disc in the disc tray.
5. Press Eject again to close the tray.
The DVD should begin to play automatically. If not, press Play on the 3.2.1 remote.
Note: Not all DVDs offer the same features. For example, you can choose to display subtitles
while watching a movie only if that particular disc provides subtitle information.
35
