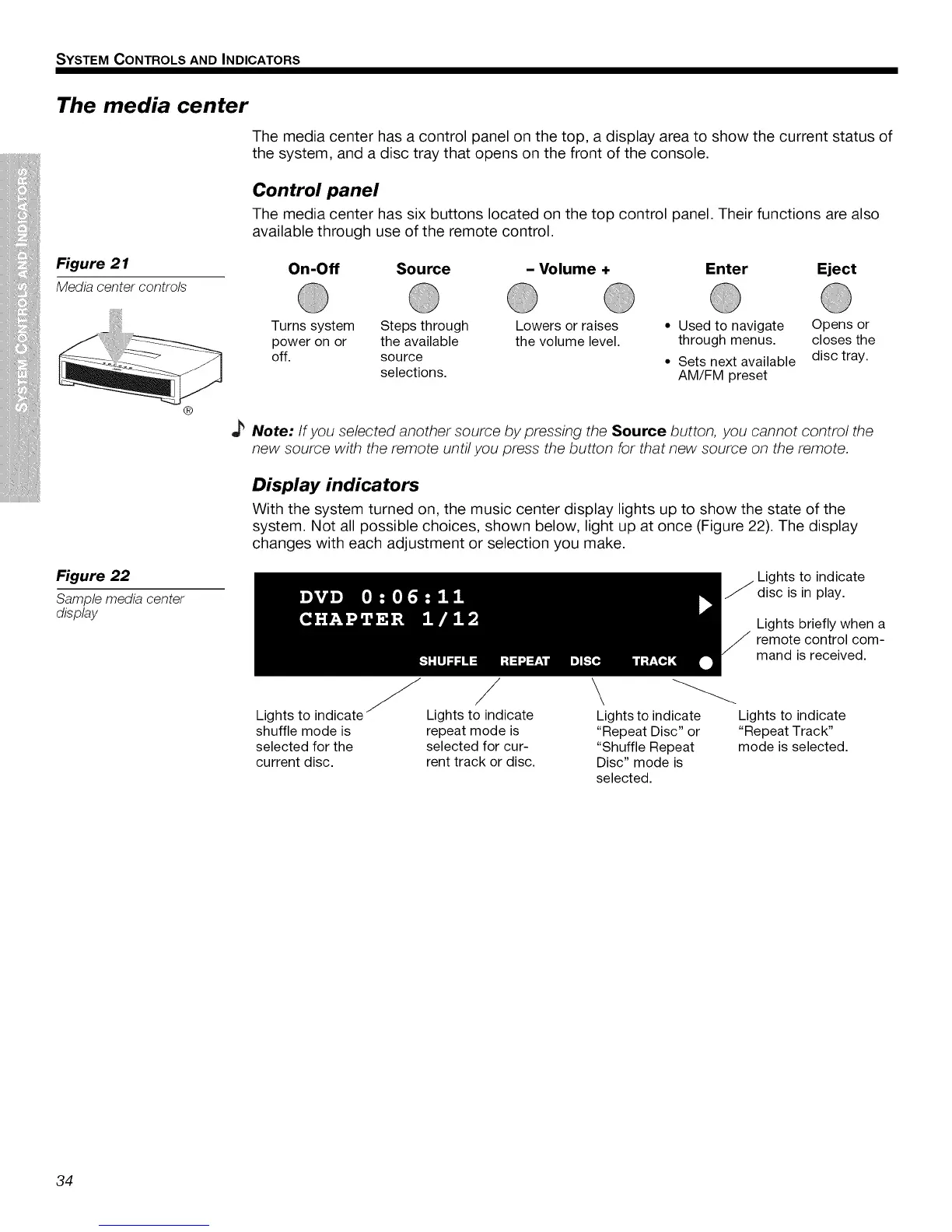

SYSTEM CONTROLS AND INDICATORS
The media center
The media center has a control panel on the top, a display area to show the current status of
the system, and a disc tray that opens on the front of the console.
Control panel
The media center has six buttons located on the top control panel. Their functions are also
available through use of the remote control.
Figure 21
Mediacenter controls
On-Off Source - Volume + Enter Eject
®
Figure 22
Sample media center
display
Turns system Steps through Lowers or raises ° Used to navigate Opens or
power on or the available the volume level, through menus, closes the
off. source ° Sets next available disc tray.
selections. AM/FM preset
Note:/fyou selected another source by pressing the Source button, you cannot control the
new source with the remote until you press the button for that new source on the remote.
Display indicators
With the system turned on, the music center display lights up to show the state of the
system. Not all possible choices, shown below, light up at once (Figure 22). The display
changes with each adjustment or selection you make.
hts to indicate
disc is in play.
Lights briefly when a
remote control com-
mand is received.
Lights to indicate Lights to indicate
shuffle mode is repeat mode is
selected for the selected for cur-
current disc. renttrack or disc.
Lights to indicate Lights to indicate
"Repeat Disc" or "Repeat Track"
"Shuffle Repeat mode is selected.
Disc" mode is
selected.
34
