Bose 3-2-1 SERIES II User Manual

SYSTEM SETUP

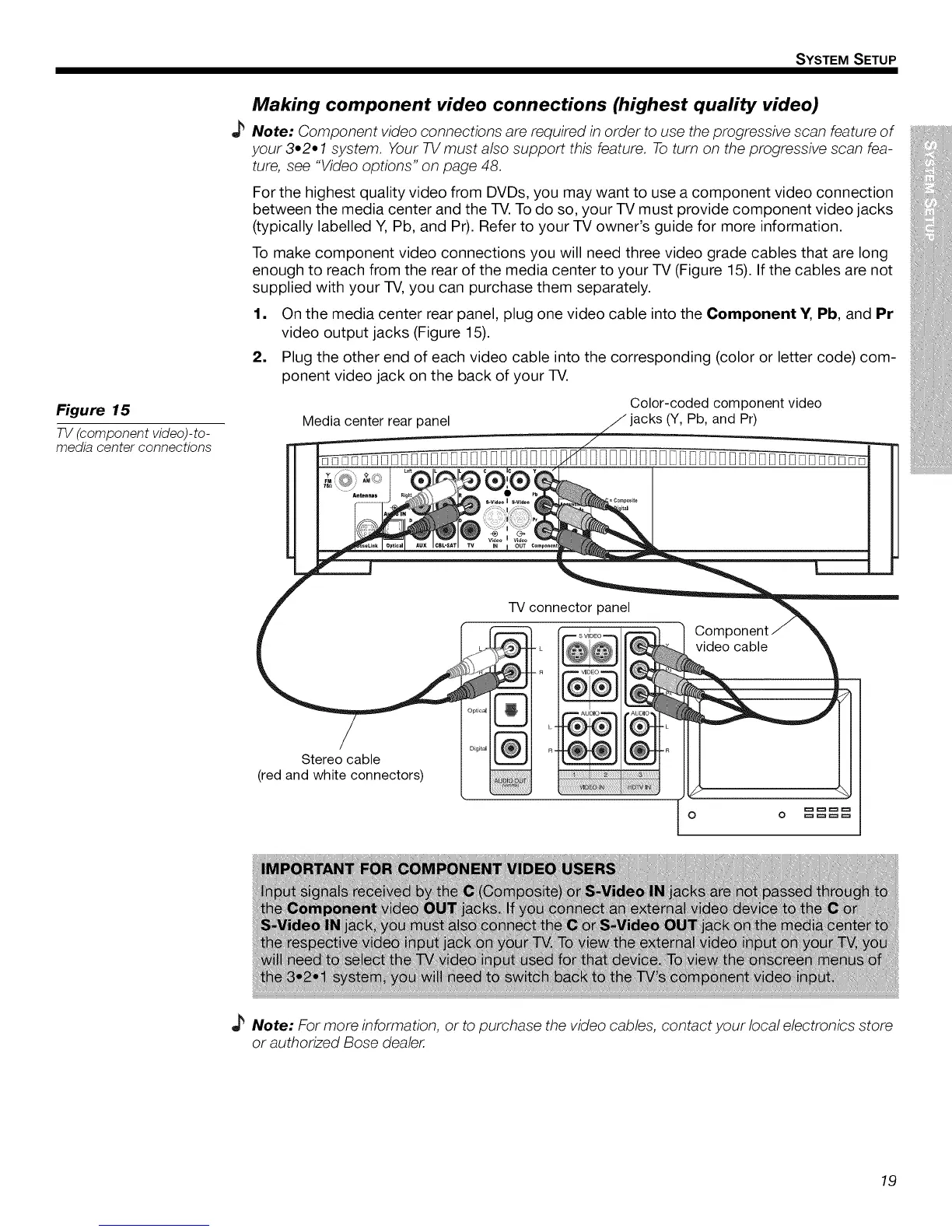

Figure 15
TV (component video)-to-
media center connections
Making component video connections (highest quality video)
Note: Component video connections are required in order to use the progressive scan feature of
your 3.2.1 system. Your TV must also support this feature. To turn on the progressive scan fea-
ture, see "Video options" on page 48.
For the highest quality video from DVDs, you may want to use a component video connection
between the media center and the TV.To do so, your TV must provide component video jacks
(typically labelled Y, Pb, and Pr). Refer to your TV owner's guide for more information.
To make component video connections you will need three video grade cables that are long
enough to reach from the rear of the media center to your TV (Figure 15). If the cables are not
supplied with your TV, you can purchase them separately.
1, On the media center rear panel, plug one video cable into the Component Y, Pb, and Pr
video output jacks (Figure 15).
2. Plug the other end of each video cable into the corresponding (color or letter code) com-
ponent video jack on the back of your TV.
Color-coded component video
Media center rear panel J j_cks (Y,Pb, and Pr)
000@00 O000000- E]OOOOOooooosoooos
Anlenu5
Stereo cable
(red and white connectors)
TV connector panel
l
@
@
.AUDIO,
®
@
Component
video cable
_se,
rie_
in
'ee
Note: For more information, or to purchase the video cables, contact your local electronics store
or authorized Bose dealer.
19

Bose 3-2-1 SERIES II Specifications

General

Number of Speakers	2
Subwoofer	Acoustimass Module
AM/FM Tuner	Yes
Remote Control	Yes
Audio Channels	2.1
System Type	2.1 Home Theater System
Media Playback	DVD, CD
Outputs	Composite Video
