1. Holding the power stand vertically on the floor (Figure A), grasp one leg and swing it out
as far as it will go. Notice that the other legs swing out automatically. The legs must be fully
open before you can plug the L1 Cylindrical Radiator
®
bottom section into the power
stand.
2. Lay the power stand flat on the floor in the desired position (Figure B).
WARNING: DO NOT move the completely assembled system as a unit. This could result in
personal injury and/or damage to the product. Position the power stand on the floor in the
chosen location before assembling the system.
Assembling the L1 model II Cylindrical Radiator
®
loudspeaker
Note: If you plan to mount the
T1 ToneMatch
®
audio engine
on the L1 model II system,
see “Adding a T1 ToneMatch
audio engine” before installing
the top section of the loud-
speaker.
1. Hold the L1 bottom so that
the grille faces front and plug
it into the power stand (Figure
A). Be sure to fully insert it
into the socket to assure
stability and a good connec-
tion.
2. Align the bayonet on the L1
top with the channel on the
back of the L1 bottom, and
lower
the L1 top onto the L1 bottom
until it is flush (Figure B).
Setting up the L1
®
model II power stand

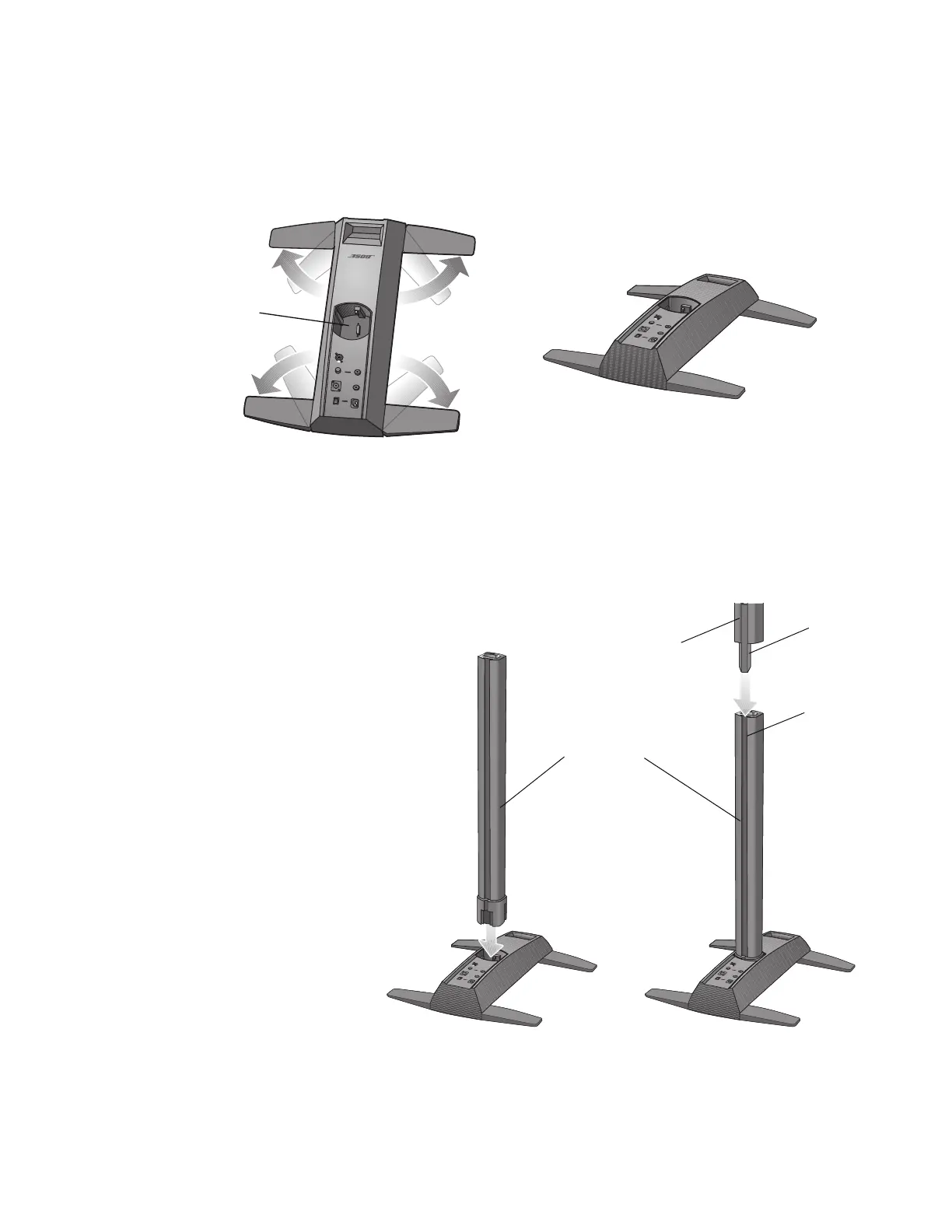

A
B
Socket for
L1 bottom
L1 top
L1 bottom
Bayonet
Channel
AB
Front of
system
