Bose PowerMatch PM8500 User Manual

English User Guide Page 19
pro.Bose.com User Guide

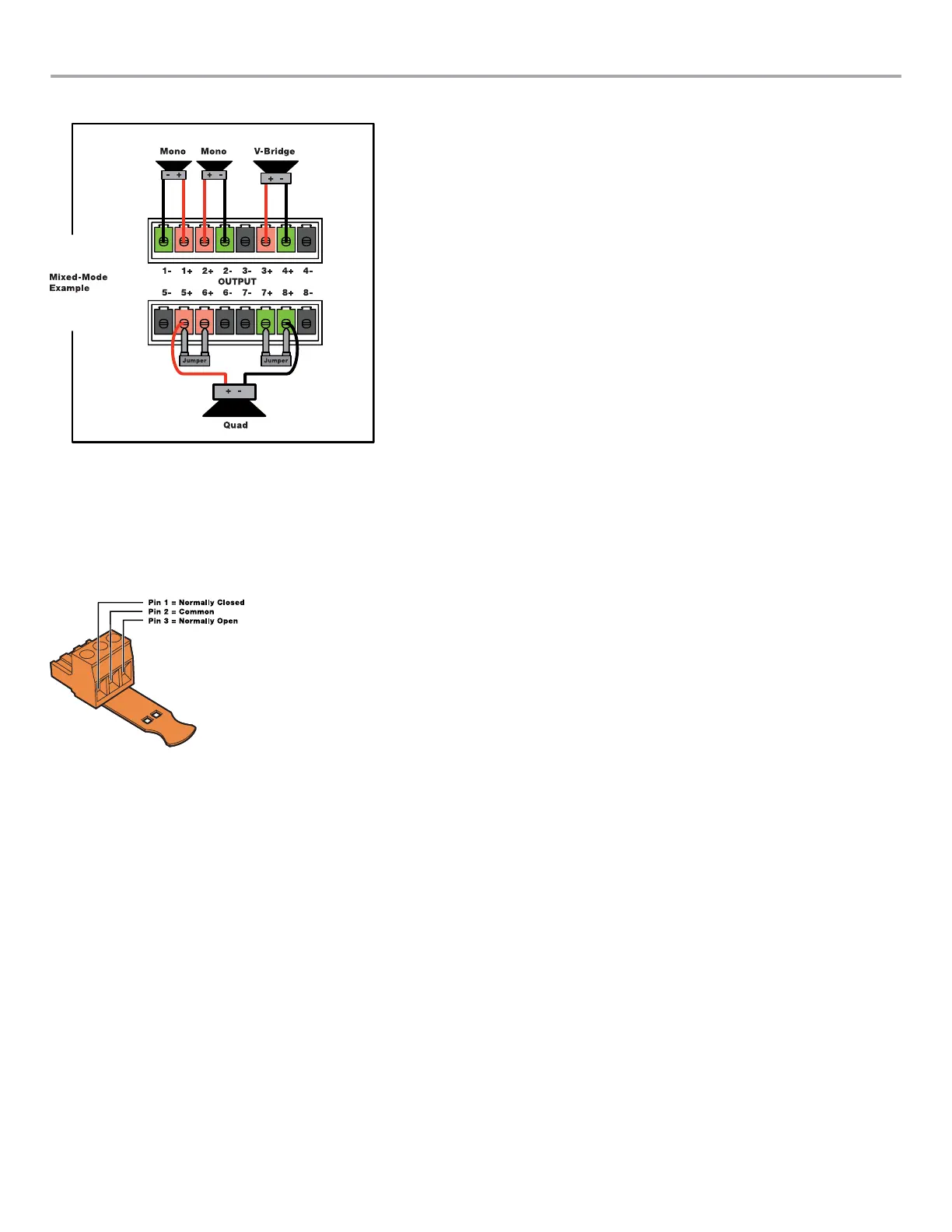

Figure 9. Output wiring showing mixed configuration
Note: Changing the output configuration will automatically place the unit in Standby Mode to allow the safe installation of loudspeaker
cable connections to the rear-panel output terminal blocks.
Fault Notification Output
The PM8500 features a hardware fault notification circuit. This circuit drives a normally open or normally closed contact closure (1A, 30
VDC maximum). The fault output, using the orange-colored 3-pin terminal block (Phoenix Contact #1976010, supplied), is intended to
provide an external connection to a remote system monitor for fault notification purposes. Pin assignments are noted in Figure 10.
Figure 10. Fault Notification output connector

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
