Sample Output Configurations for Different Loudspeaker Loads
This table should help you select the appropriate output mode for a given loudspeaker load.

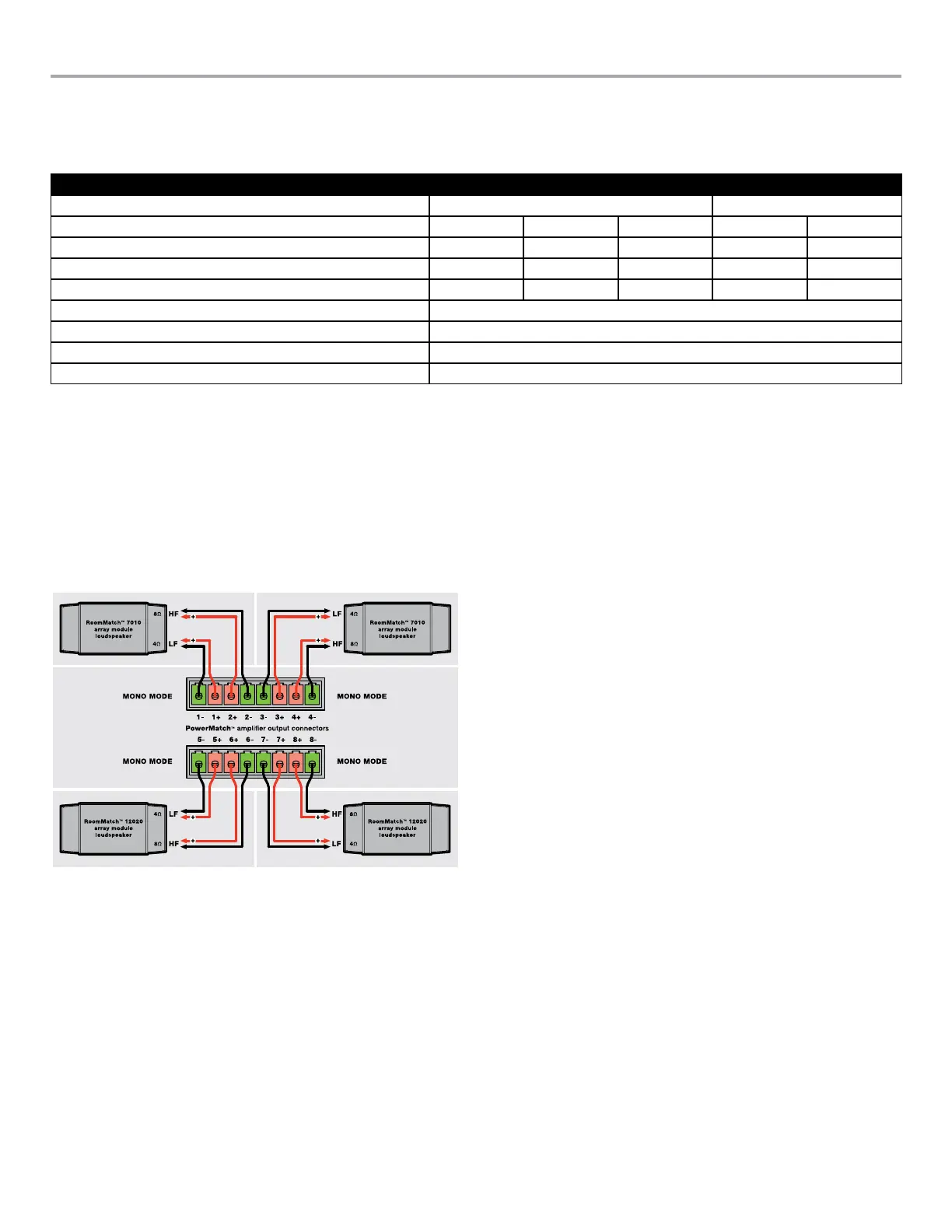

Figure 14. Loudspeaker load output configurations
Power Rating (20 - 20 kHz) 2 Ω 4 Ω 8 Ω 70 V 100 V
THD For Power Rating <0.1% THD 1% THD
Mono Mode: 8 channels (per channel) 500 W 500 W 300 W not available not available
V-Bridge Mode: 4 channels (per channel) 500 W
(1)
1000 W 1000 W 800 W 1000 W
I-Share Mode: 4 channels (per channel) 1000 W 500 W
(1)
300 W
(1)
not available not available
Quad Mode: 2 channels (per channel) 1000 W
(1)
2000 W 1000 W
(1)
1600 W 2000 W
Maximum Rated Power, Total All Channels 4000 W
Peak Output Voltage (Mono/V-Bridge/Quad modes) 71 / 142 / 142 V
Voltage Gain (Mono/V-bridge/I-Share/Quad modes) 33 / 36 / 33 / 36 dB
Notes for Power Ratings
(1)
Configuration not optimal/not recommended
For reference, the following two examples illustrate two different output configurations using RoomMatch™ array module loudspeakers.
Front panel configuration settings are provided. While not covered in this documentation, ControlSpace
®
Designer™ software provides
additional configurability to these examples. Further information on this software can be found on pro.Bose.com.
Configuration of a RoomMatch ™ Four-Module Array (Example 1)
In this example, four full-range RoomMatch array modules are connected to one PowerMatch™ amplifier, arranged as follows:
(2) Bose® RoomMatch 7010 array module loudspeakers (70° H x 10° V)
(2) Bose RoomMatch 12020 array module loudspeakers (120° H x 20° V)
(1) Bose PowerMatch PM8500 configurable professional power amplifier
Figure 15. RoomMatch four-module array configuration
Note: All RoomMatch loudspeaker connections use Neutrik NL4 speakON-type cable connectors. Please refer to RoomMatch
loudspeaker documentation for further details.
Front Panel Configuration Menu Settings:
1. MAIN MENU < CONFIG < OUTPUT CONFIG
Set the output configuration for channels 1-8 to MONO mode.
2. MAIN MENU < DSP < SPEAKER PRESETS
For channels 1, 3, 5, and 7 set SERIES to “RoomMatch” and MODEL to “RM_Array LF.”
For channels 2, 4, 6, and 8 set SERIES to “RoomMatch” and MODEL to “RM_Array HF.”
3. MAIN MENU < DSP < ARRAY EQ
For each input channel (A-H) that is routed to an output channel, set the MODULES value to 4 and the V-Angle parameter to
60 degrees, which is the total vertical angle of the four shown modules. Ensure that the state of the Array EQ is toggled to ON.

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
