Bose PowerMatch PM8500 User Manual

English User Guide Page 23
pro.Bose.com User Guide

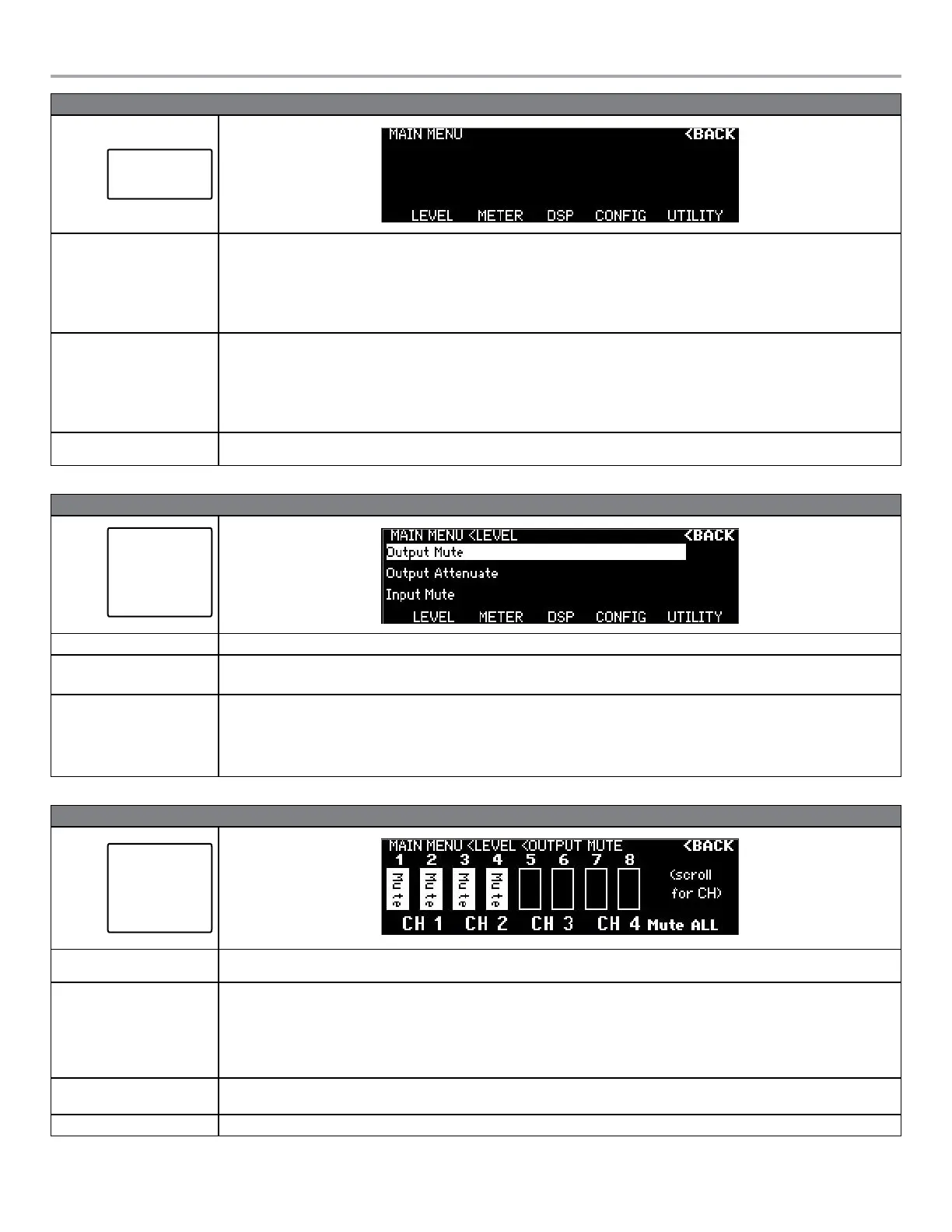

MAIN MENU
OPERATING
Mute All
Main Menu
Description The MAIN MENU offers five areas of control:
• Level
• Meter
• DSP
• Configuration
• Utility
Available Controls Navigation Soft Key: Back to OPERATING display.
• Menu Soft Key #1: Enters LEVEL menu.
• Menu Soft Key #2: Enters METER Menu.
• Menu Soft Key #1: Enters DSP Menu.
• Menu Soft Key #1: Enters CONFIG Menu.
• Menu Soft Key #1: Enters UTILITY Menu.
Notes Users can set the Power Up State in the ControlSpace
®
Designer™ software to enable “Restore Last Settings.” If this has been set, a message will
display on first entry to the Main Menu.
MAIN MENU < LEVEL
LEVEL
Output Mute
Output Attenuate
Input Mute
Input Sensitivity
Input Source
Description The LEVEL menu allows access to the input and output level and type parameters.
Available Controls Navigation Soft Key: Back to MAIN MENU.
Menu Soft Key #1-5: Changes menu to respective category.
Options Output Mute
Output Attenuate
Input Mute
Input Sensitivity
Input Source
MAIN MENU < OUTPUT MUTE
LEVEL
Output Mute
Output Attenuate
Input Mute
Input Sensitivity
Input Source
Description This display allows each configured output channel to be muted. For channels set to output modes other than Mono, as in the case shown with
channels 1-4 above, muting control is bound by the configured groupings.
Available Controls To access Output Mute, use the rotary encoder dial from the LEVEL menu to highlight, then press to select.
Navigation Soft Key: Back to LEVEL MENU.
Rotary Encoder: Scrolls through output channels as displayed under the eight indicator boxes.
Menu Soft Key #1-4: Toggles the mute state for each channel listed above each button. Note that some keys may not have channels listed.
Menu Soft Key #5: Enables/disables muting of all channels.
Options Mute enabled/disabled per channel.
Mute ALL enabled/disabled for all channels.
Notes Output channels can also be (all) muted from the MAIN MENU and MAIN MENU < METER < OUTPUT VOLTS screens.
➞
➞
➞

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
