English User Guide Page 25
pro.Bose.com User Guide
MAIN MENU < LEVEL < INPUT SOURCE
LEVEL
Output Mute
Output Attenuate
Input Mute
Input Sensitivity
Input Source

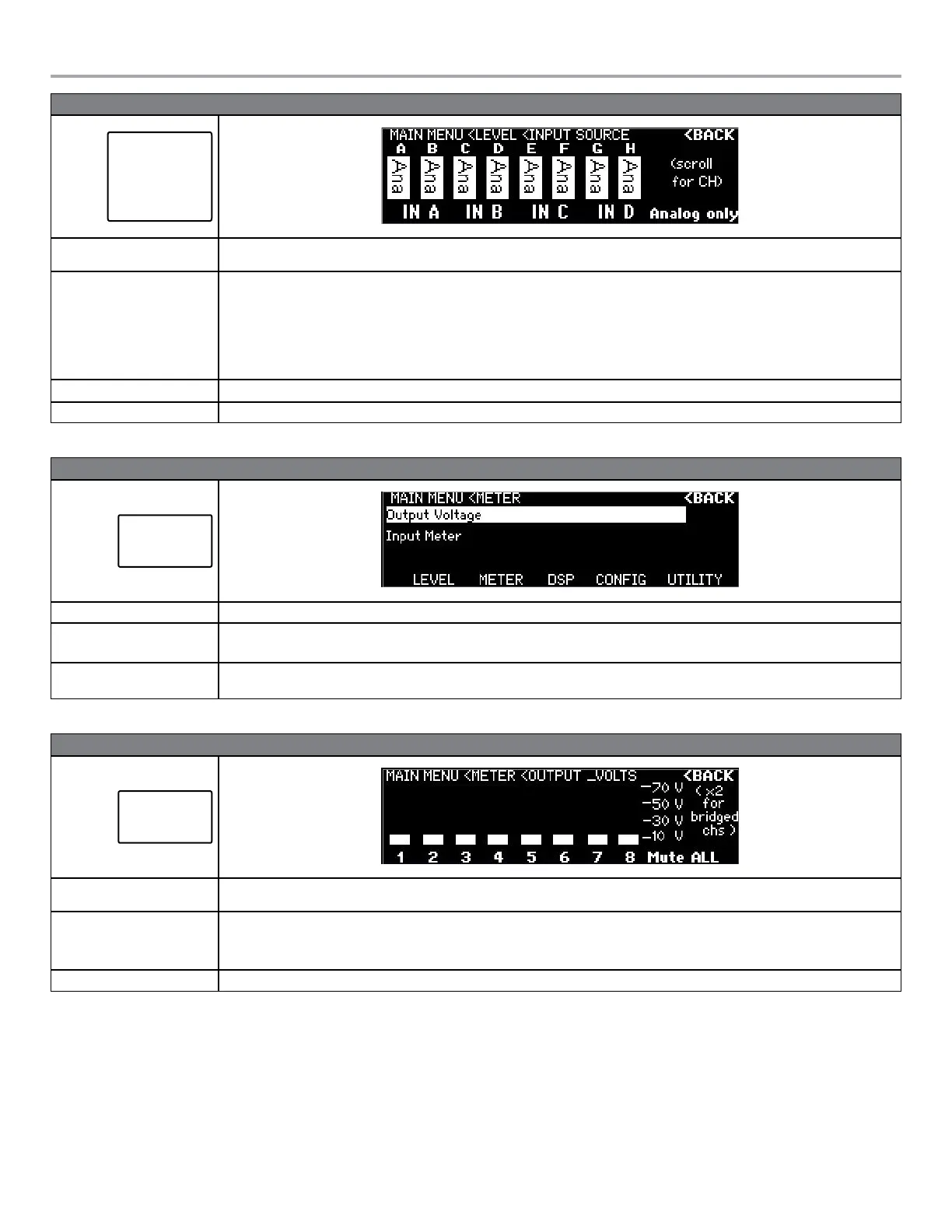

Description This display allows you to select an analog or digital audio source for each input channel. No parameters can be modified if the amplifier is without
a digital input card.
Available Controls To access Input Source, use the rotary encoder dial from the LEVEL menu to highlight, then press to select.
Navigation Soft Key: Back to LEVEL menu.
Rotary Encoder: Allows the scrolling of two pages of four input channels.
Menu Soft Key #5: Toggles between forcing all channels to be Analog and all channels to be Digital. For amplifiers without an input card installed,
the inactive button caption reads “Analog only.”
Menu Soft Key #1-4: Toggle between input type analog or digital for each displayed channel.
Options “Ana” (Analog), “Dig” (Digital).
Notes Options only available when input card is installed.
MAIN MENU < METER
METER
Output Voltage
Input Meter
Description The METER menu allows you to view the status of both input and output channels.
Available Controls Navigation Soft Key: Back to LEVEL menu.
Menu Soft Key #1-5: Changes menu to respective category.
Options Output Voltage
Input Meter
MAIN MENU < METER < OUTPUT VOLTS
METER
Output Voltage
Input Meter
Description This display allows you to monitor each configured output channel voltage. For channels set to output modes other than Mono, metering is bound
by the configured groupings. You can also mute all output channels.
Available Controls To access Output Voltage, use the rotary encoder dial from the METER menu to highlight, then press to select.
Navigation Soft Key: Back to METER menu.
Menu Soft Key #5: Enables/disables muting of all output channels.
Options Mute ALL, Unmute ALL.
