Bowflex PR1000 - Parts, Hardware, and Setup; Component Identification

NOTICE: Knob must be fully engaged.

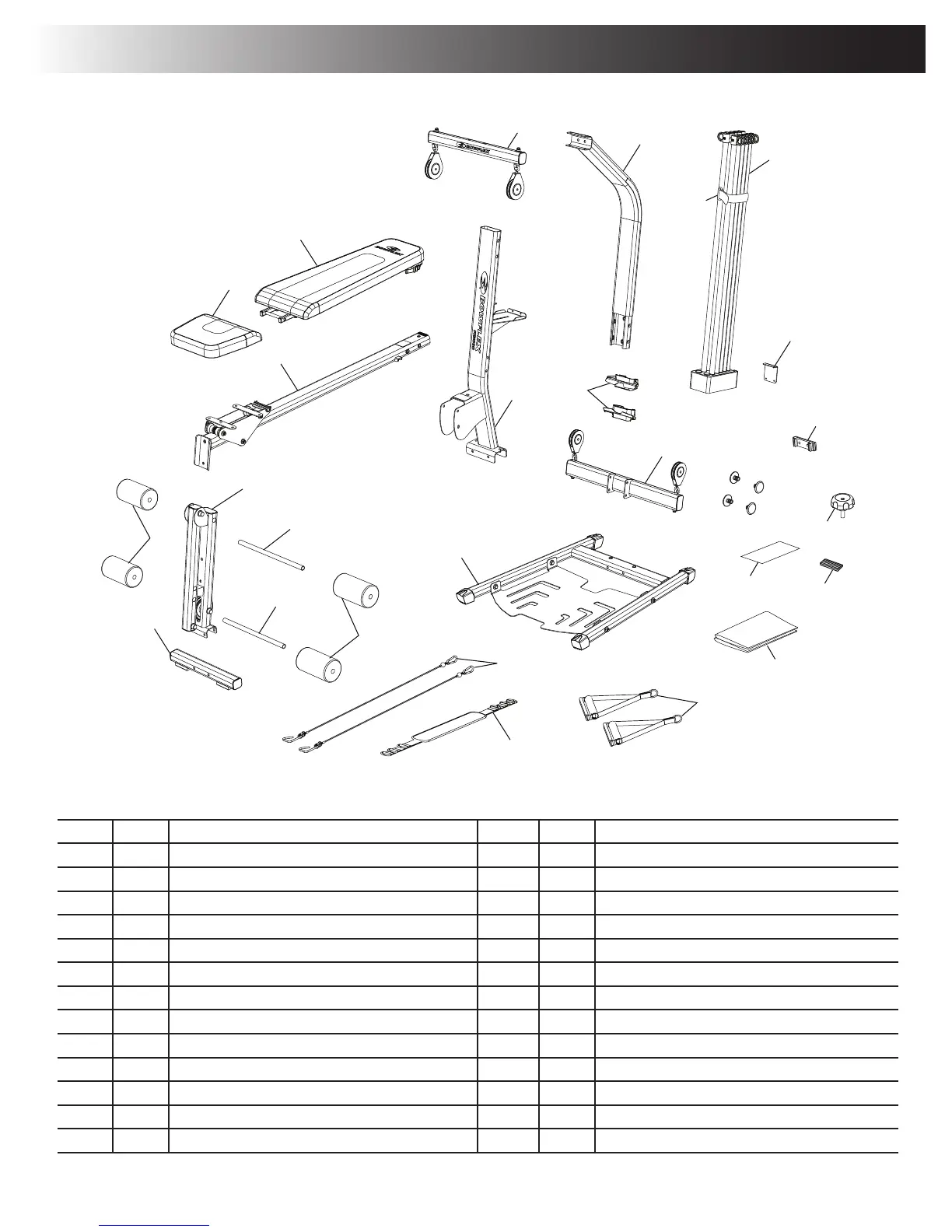

Parts
Item Qty Description Item Qty Description
1 1 Top Cross Bar 14 1 Short Roller Tube
2 1 Upper Lat Tower 15 1 Leg Extension Base
3 1 Rod Pack 16 1 Base Platform
4 1 Rod Box End Plate 17 2 Cable, Rod to Chest Cross Bar Pulley
5 1 Chest Cross Bar 18 1 Belt, Leg Press
6 2 Media Tray 19 2 Handgrip
7 1 Lower Lat Tower 20 1 Rod Strap, Binding
8 1 Bench 21 1 Manual Kit
9 1 Seat 22 1 Hardware Card
10 1 Seat Rail Assembly 23 1 Rubber Pad
11 1 Leg Extension 24 1 Seat Rail Securing Knob
12 4 Foam Roller Pad 25 1 Upper Cable Clip
13 1 Long Roller Tube 26 4 Plug
2
3
7
10
1
4
5
8
9
12
16
6
11
15
12
18
17
19
22
21
14
13
20
23
24
25
26
Assembly Manual
