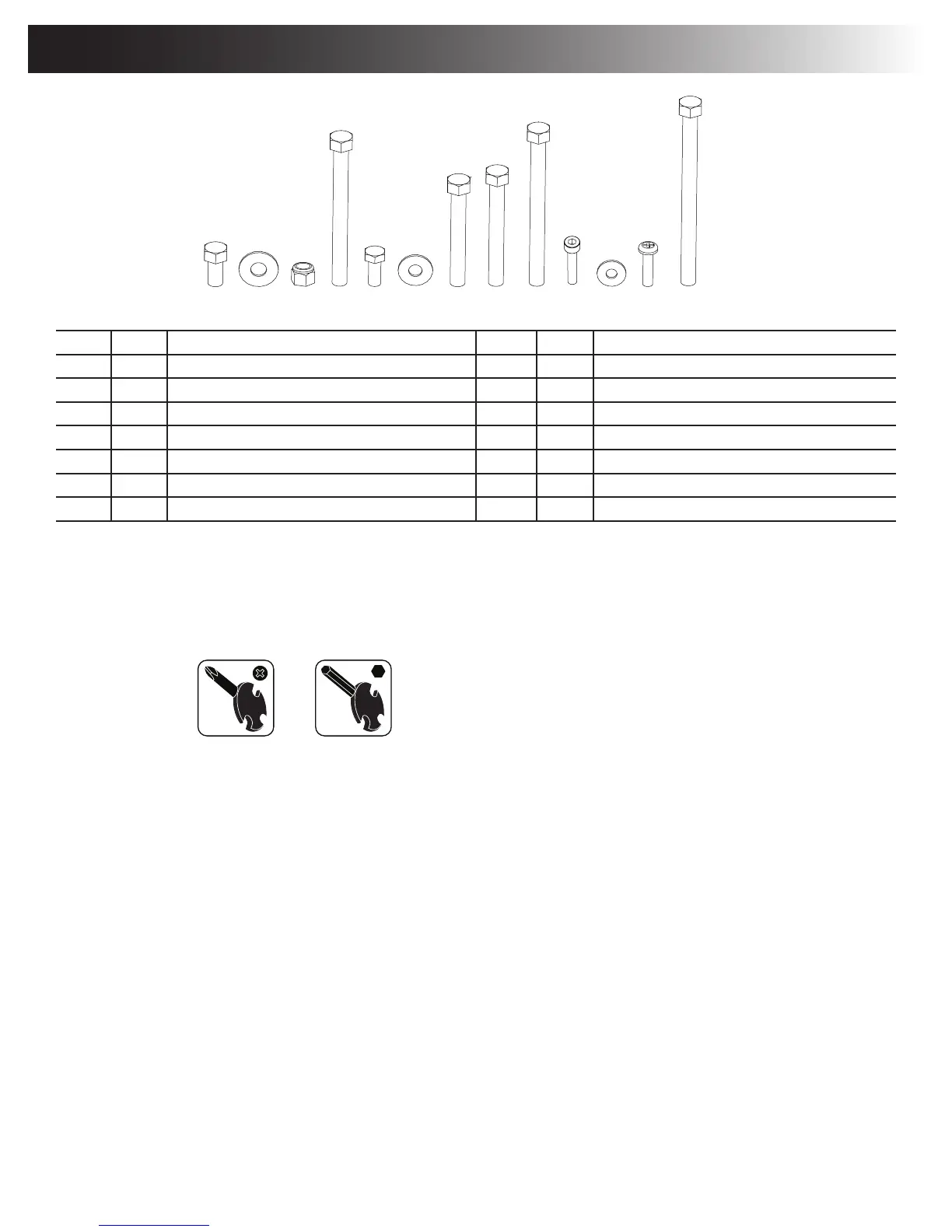

Hardware / Tools / Before Assembly
Item Qty Description Item Qty Description
A 8 Hex Head Screw, 3/8” x 3/4” H 4 Hex Head Screw, 3/8” x 3”
B 29 Flat Washer, 3/8” I 1 Hex Head Screw, 3/8” x 4-1/4”
C 10 Securing Nut, 3/8” Nylock J 3 Socket Head Screw, M5 x 25
D 2 Hex Head Screw, 3/8” x 4” K 5 Flat Washer, 1/4”
E 4 Hex Head Screw, 5/16” x 3/4” L 2 Pan Phillips Head Screw, 1/4” x 1”
F 4 Flat Washer, 5/16” M 2 Hex Head Screw, 3/8” x 5”
G 2 Hex Head Screw, 3/8” x 2-3/4”
Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remaining Hardware
after the proper assembly of your machine.
Tools
Included
A B C D E F G H I J K L M
Before Assembly
Select where you are going to locate your Bowflex
®
home gym carefully. The best location is on a hard, level surface that is not outdoors, or in
a moist or wet location, and does not experience extreme temperatures. For best results, assemble your home gym in the location where you
intend to use it. For safe operation, allow a workout area of at least 127” x 82” (3.3m x 2.1m) of free space.
Follow these basic tips when assembling your home gym
.
1. Collect all the pieces needed for each assembly step.
2. Turn all the bolts and locknuts toward the right to tighten
. Turn towards the left to loosen.
3. Use a combination wrench to grip the locknut when you tighten a bolt that has a locknut to make sure it is tight.
4.
You may nd the use of a utility knife or scissors bene cial during the unpacking and assembly process.
5. Carefully lift pieces when attaching. Look through the bolt holes to help guide bolt placement.
6. Assembly requires 2 people.
NOTICE: Leave all of the cables wrapped and bagged until the Bowflex
®
home gym is completely assembled.
Assembly Manual
6
To Next Page
