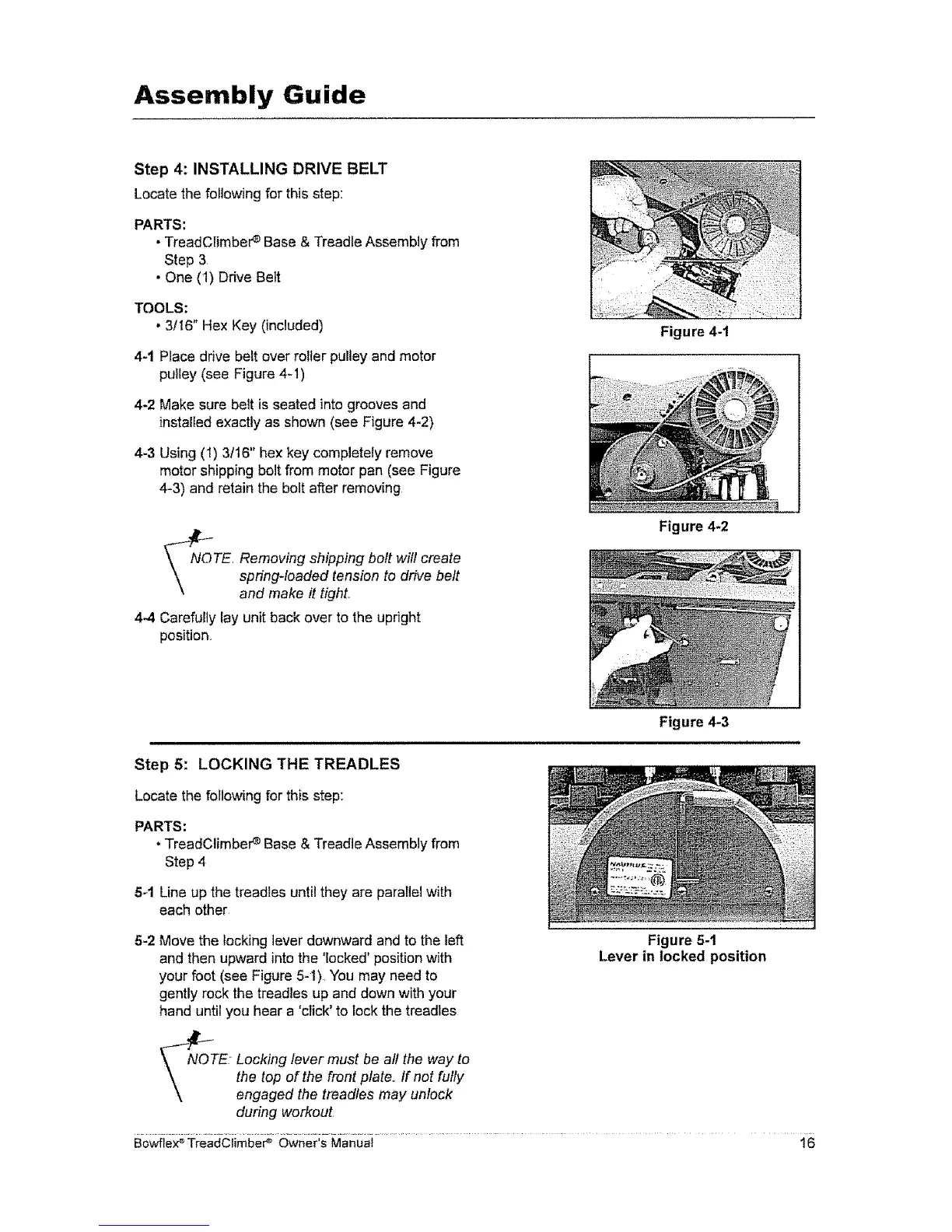

Assembly Guide
Step 4: INSTALLING DRIVE BELT
Locate the following for this step:
PARTS:
• TreadClimber _ Base & Treadle Assembly from
Step 3
• One (1) Drive Belt
TOOLS:
• 3116"Hex Key (included)
4-1 Place drive belt over roller pulley and motor
pulley (see Figure 4-1)
4-2 Make sure belt is seated into grooves and
installed exactly as shown (see Figure 4-2)
4-3 Using (1) 3/16" hex key completely remove
motor shipping bolt from motor pan (see Figure
4-3) and retain the bolt after removing
NOTE, Removing shipping bolt will create
spring-loaded tension to drive belt
and make it tight,
4-4 Carefully lay unit back over to the upright
position
Step 5: LOCKING THE TREADLES
Locate the following for this step:
PARTS:
*TreadClimber _ Base & Treadle Assembly from
Step 4
5-1 Line up the treadles until they are parailel with
each other
Figure 4-1
Figure 4-2
Figure 4-3
Figure 5-1
Lever in locked position
5-2 Move the locking lever downward and to the left
and then upward intothe 'locked' position with
your foot (see Figure 5-1), You may need to
gently rock the treadles up and down with your
hand until you hear a 'click' to lockthe treadles
NOTE Locking lever must be all the way to
the top of the front plate., If not fully
engaged the treadles may unlock
during workout
Bowflex _TreadClimber _ Owner's Manual 16
