Assembly Guide

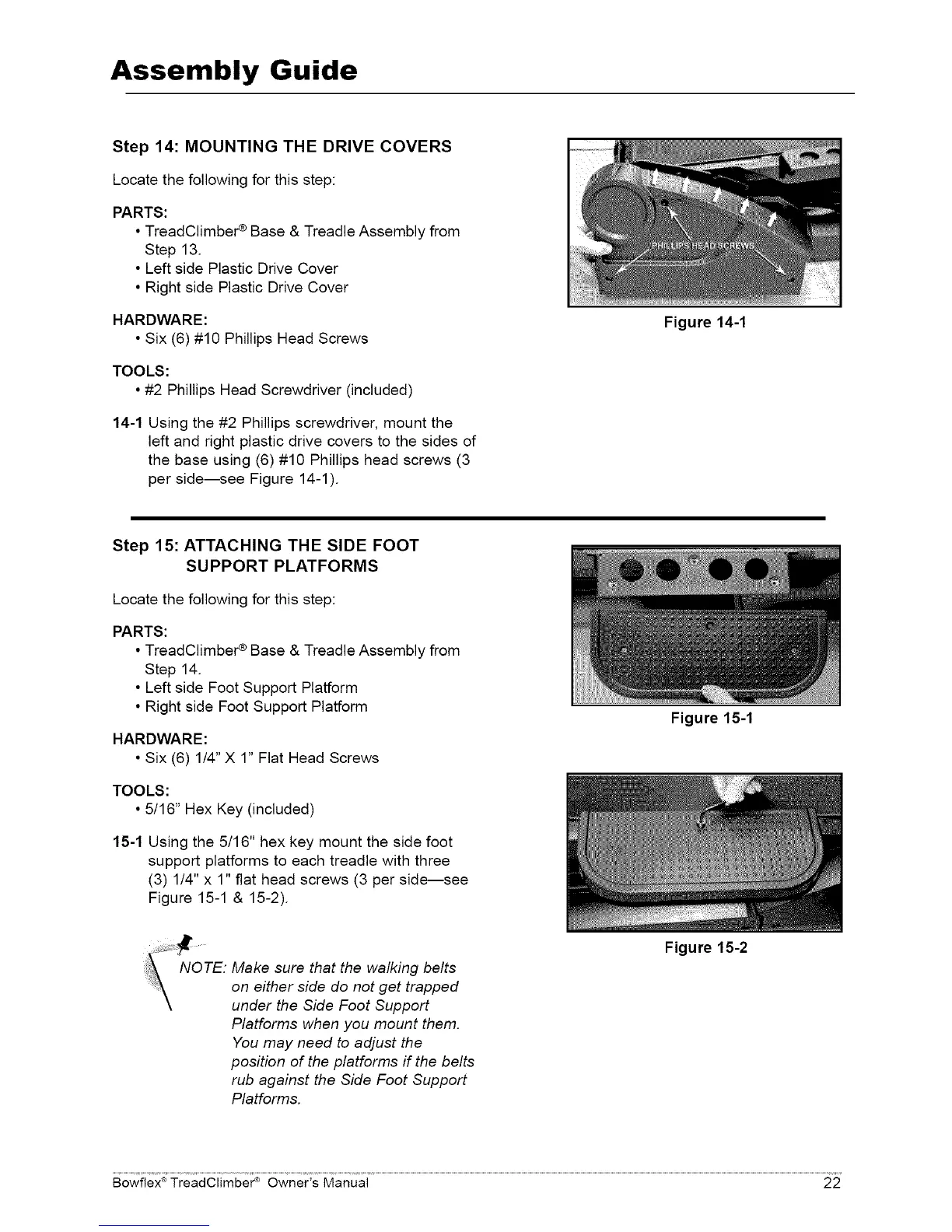

Step 14: MOUNTING THE DRIVE COVERS
Locate the following for this step:
PARTS:
• TreadClimber ® Base & Treadle Assembly from
Step 13
• Left side Plastic Drive Cover
• Right side Plastic Drive Cover
HARDWARE:
• Six (6) #10 Phillips Head Screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
14-1 Using the #2 Phillips screwdriver, mount the
left and right plastic drive covers to the sides of
the base using (6) #10 Phillips head screws (3
per side--see Figure 14-1)
Step 15: ATTACHING THE SIDE FOOT
SUPPORT PLATFORMS
Locate the following for this step:
PARTS:
• TreadClimber ¢ Base & Treadle Assembly from
Step 14
• Left side Foot Support Platform
• Right side Foot Support Platform
HARDWARE:
• Six (6) 1/4" X 1" Flat Head Screws
TOOLS:
• 5/16" Hex Key (included)
15-1 Using the 5/16" hex key mount the side foot
support platforms to each treadle with three
(3) 1/4" x 1" fiat head screws (3 per side--see
Figure 15-1 & 152)
NOTE: Make sure that the walking belts
on either side do not get trapped
under the Side Foot Support
Platforms when you mount them.
You may need to adjust the
position of the platforms if the belts
rub against the Side Foot Support
Platforms.
Figure 14-1
Figure 15-1
Figure 15-2
®
Bowfiex TreadClimbe¢ _ Owner's Manual 22
