Assembling Your Bowflex Ultimate
®
2

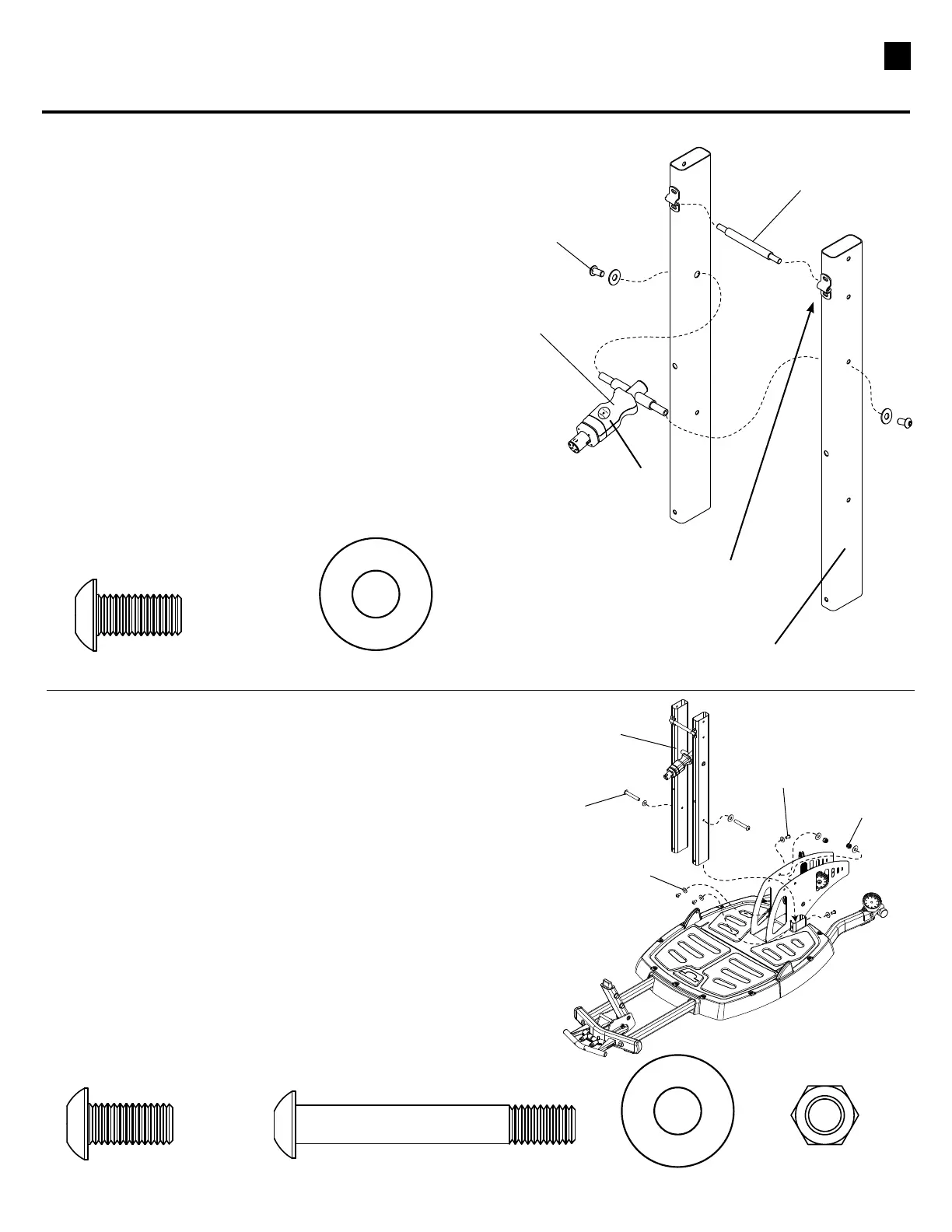

STEP 8
Parts:
 •LowerLatTowerUprights(Box4)
 •SquatHolder(Box4)
 •CrossBrace(Box4)
Tool:
 •HexKey(7/32”)
8-1 InsertCrossBraceandSquatHolderintoLower
LatTowerUprights.MakesuretheSquatHolder
faces the the front of the Uprights. The label is on
the front and the screw holes are on the back of
the holder.
8-2 Install but
do not tighten thehardwareuntil
Step9.
Hardware (1:1):
Squat Holder
Pan Head Allen
Bolt
2 Pan Head Allen Bolt (3/8” X 3/4”)
2 Washers (3/8”)
8 Washers (3/8”)
Hardware (1:1):
STEP 9
Parts:
 •LowerLatTowerAssembly(from step 8)
 •BaseAssembly
Tools:
 •HexKey(7/32”)
 •Wrench(9/16”) - or Adjustable Wrench
9-1 PlaceLowerLatToweroverextrusionson
BaseAssembly.
9-2 Installandcompletelytightenthehardware
fromsteps8and9.
Pan Head Allen Bolt
3/4”
Lower Lat Tower
Assembly
Washer
Pan Head Allen Bolt
2 1/2”
Nylock Nut
4 Pan Head Allen Bolt (3/8” X 3/4”) 2 Pan Head Allen Bolt (3/8” X 2 1/2”) 2 Nylock Nuts (3/8”)
(Rod Pack Not Shown
For Clarity)
Label
The Cross Brace is on the
front of the Uprights
Cross Brace
(Do Not Tighten The Hardware For This Step Until Step 9 )
Lower Lat Tower Uprights
