Assembling Your Bowflex Ultimate
®
2

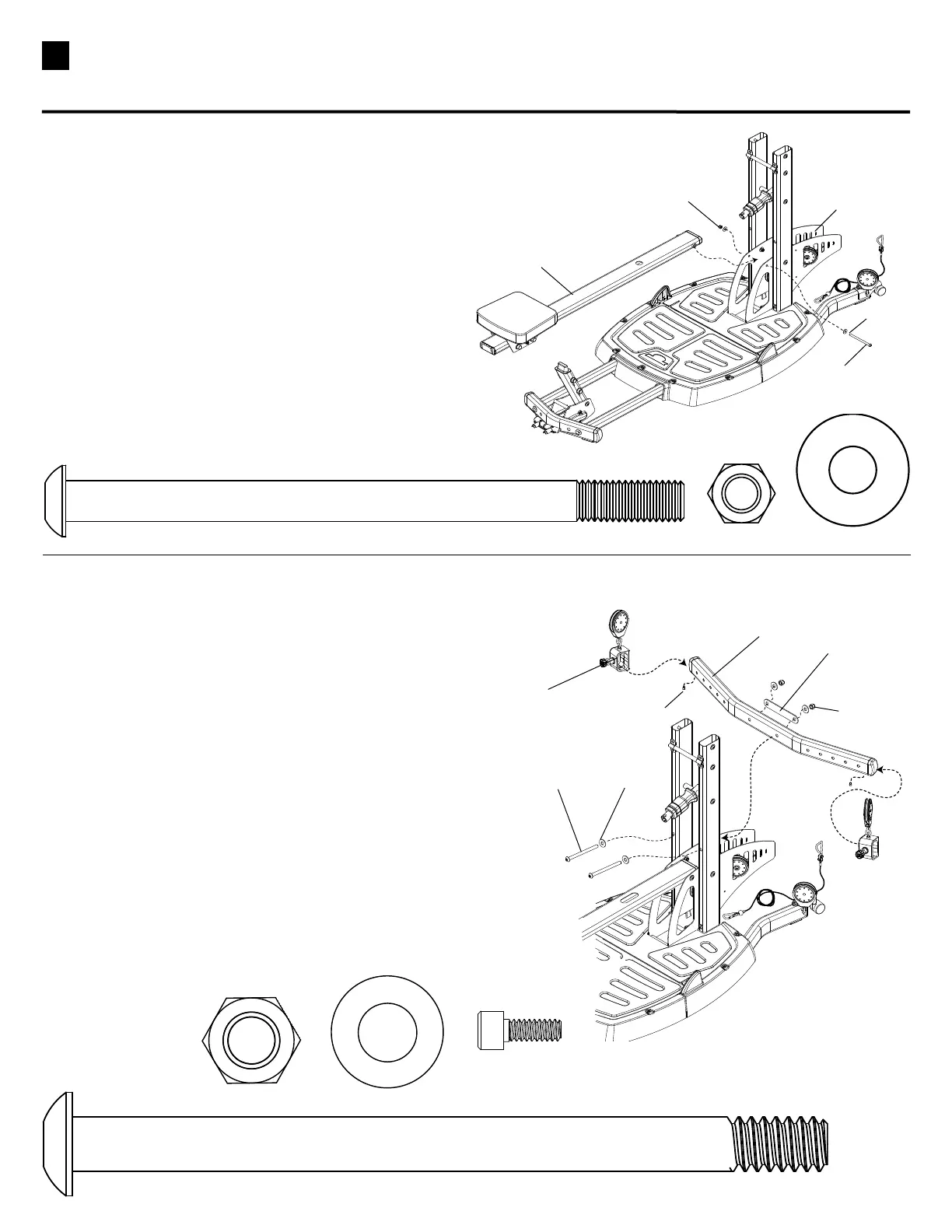

STEP 10
Parts:
 •SeatRailAssembly(Box5)
 •BaseAssembly
Tool:
 •HexKey(7/32”)
 •Wrench(9/16”) - or Adjustable Wrench
10-1 Align holes on Seat Rail with holes
inRodBoxAssembly.
10-2Installandcompletelytightenthehardware.
1 Pan Head Allen Bolt (3/8” X 5 1/2”)
2 Washers (3/8”)
Hardware (1:1):
Pan Head Allen
Bolt
Washer
Hex Nut
Seat Rail Assembly
Rod Box
Assembly
4 Washers (1/2”)
Hardware (1:1):
Pan Head Allen
Bolt
Washer
Hex Nut
Chest Bar
Pulley Slider
2 Pan Head Allen Bolt (1/2” X 6 3/4”)
2 Nylock Nut (1/2”)
STEP 11
Parts:
 •ChestBar(Box4)
 •PulleySliders(Box4)
 •WasherPlate(Box4)
Tools:
 •HexKey(5/16”)
 •Wrench(3/4”)- or adjustable wrench
11-1 AlignholesinChestBar,WasherPlateandLatTower
Uprights.
11-2 InstallandcompletelytightentheChestBarhardware.
11-3
SlidethePulleySliderson(withpulleysfacingupandpull
knobfacingtheseatrail)theninstallandtightenthe
1/4”x1/2”StopScrews.
Washer Plate
(Rod Pack Not Shown
For Clarity)
Stop Screw
1 Nylock Nut (3/8”)
(Rod Pack Not Shown
For Clarity)
2 Cap Screw (1./4 x 1/2”)
