B+K precision 5490C Series - Rear Panel Overview

5

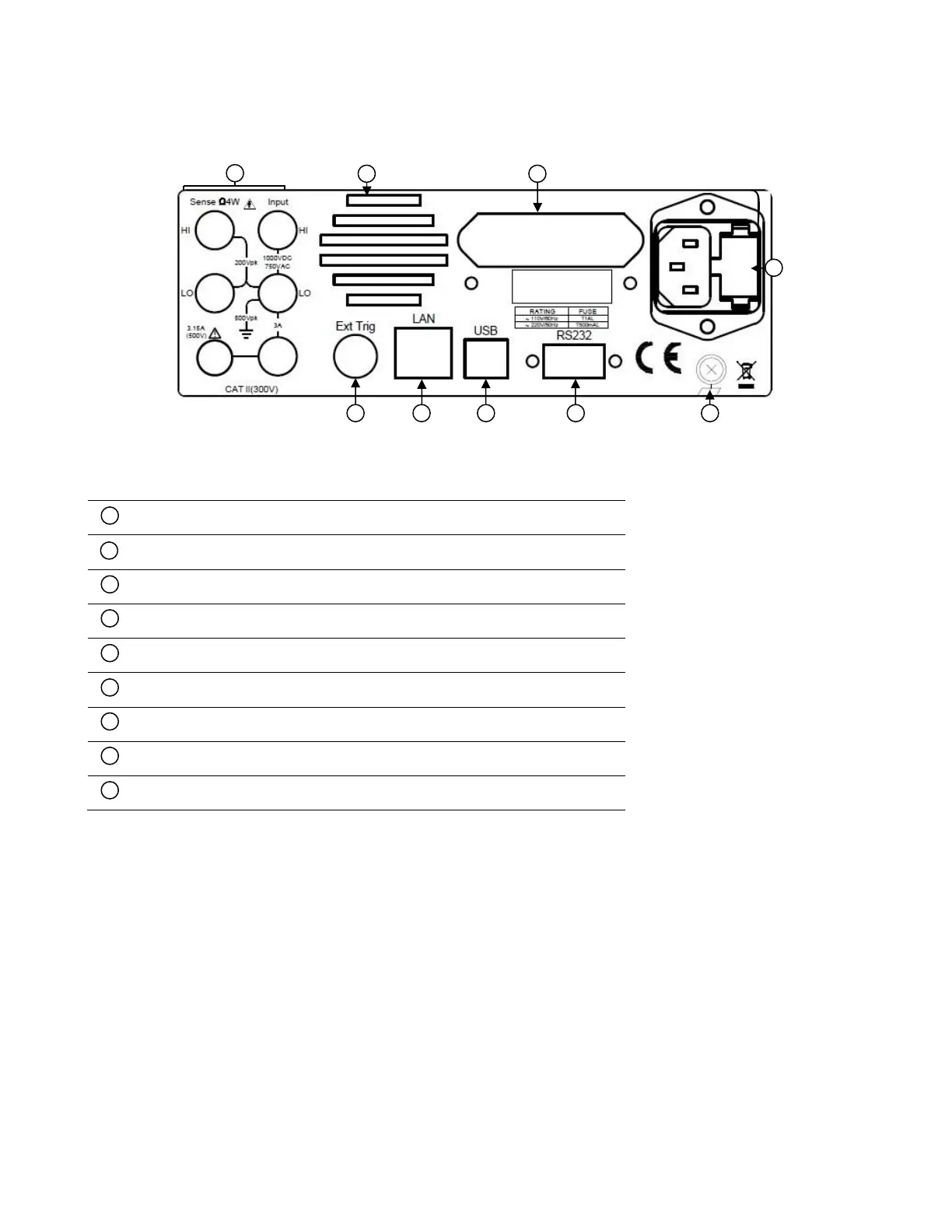

1.5 Rear Panel Overview
Rear Panel Description
Rear input terminals (6 ½-digit models only)
Cooling fan
GPIB interface (5492CGPIB/5493CGPIB models only)
AC power input receptacle & fuse box
External Trigger BNC connector
LAN interface
USB interface
RS232 interface
Chassis ground
