3.3.6 Resistance 2W (2-wire)

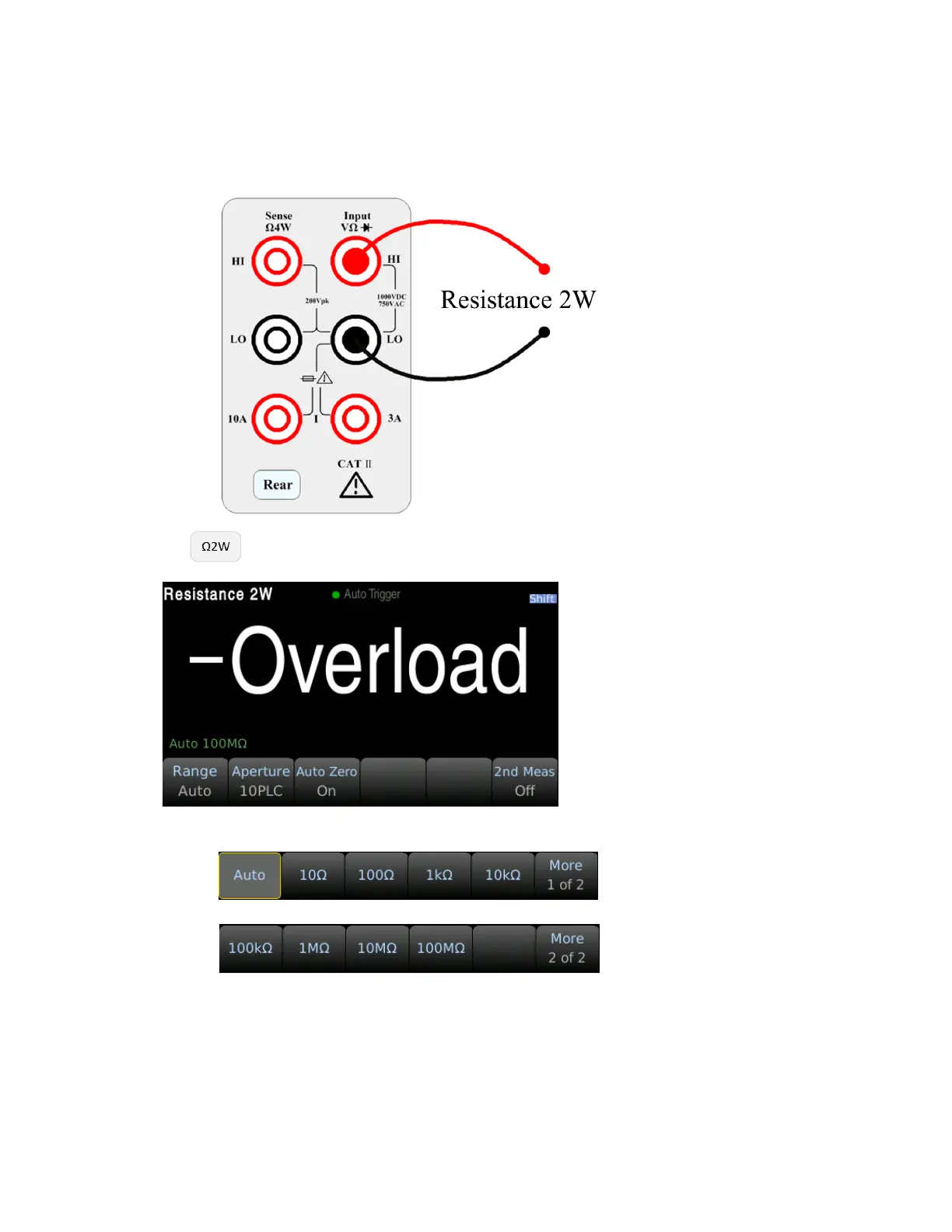

Step 1: Configure the test leads as follows:

Step 2: Press on the front panel to enter the two-wire resistance test interface.

Step 3: Select the range.

Press Range and select the range. Auto range (Auto) can automatically select the appropriate range for

measurement based on the input signal. The auto range is adjusted upwards to 110% of the existing

range and down to 10% of the existing range.

Step 4: Set the integration time.

The setting of the integration time affects the measurement speed and measurement accuracy. The
