Fig. 3
1 - POSITION

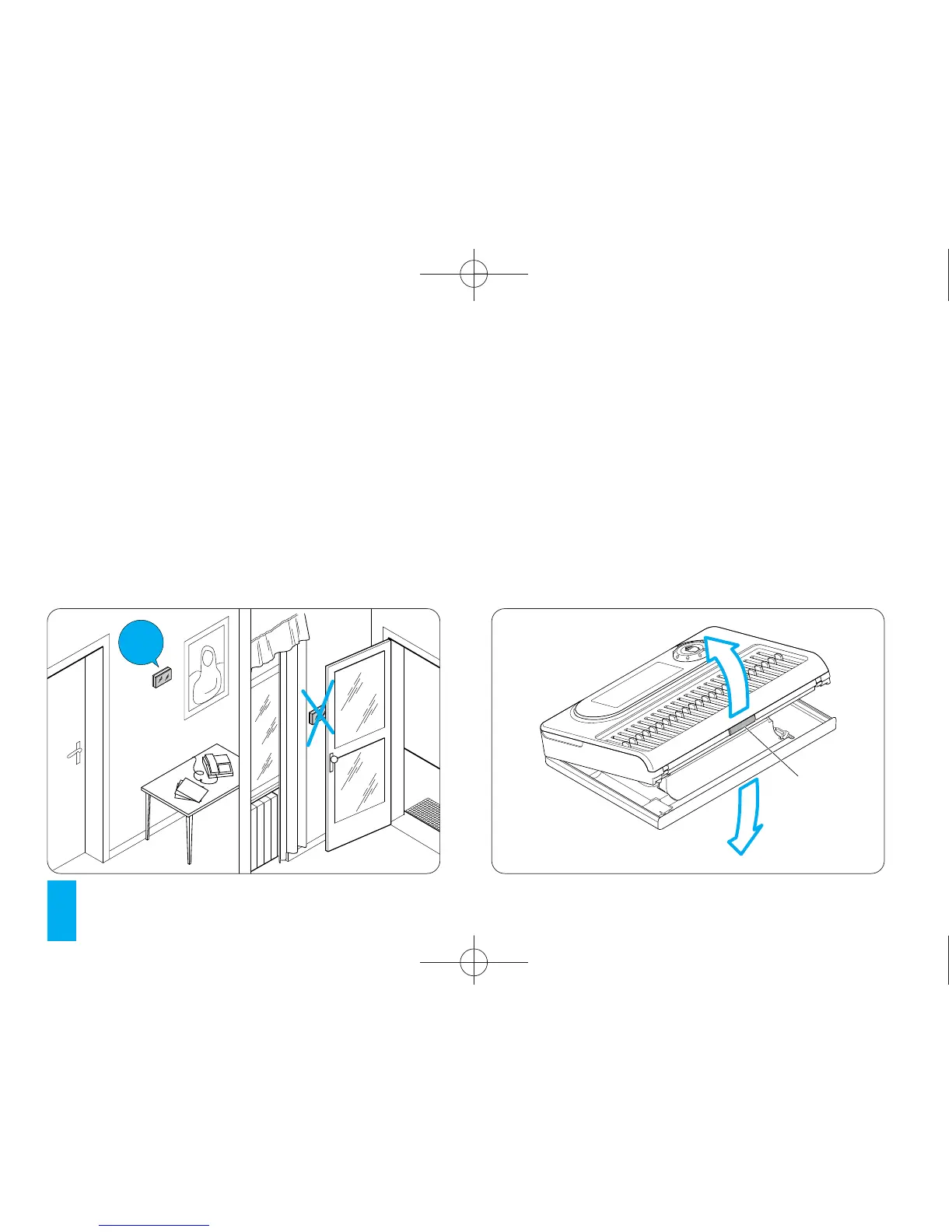

Install the unit on an internal wall (fig. 2) in a posi-
tion which is suitable for correct room temperature
measurement. Avoid installation in niches, behind
doors or curtains, or near heat sources.
2 - INSTALLATION
Open the unit by pressing button P (fig. 3) while at
the same time pulling in the direction of the arrows.
Remove the terminal block cover (fig. 4). Use the
two screws provided (fig. 5) to screw the back of
the unit to a rectangular recessed back-box.
Use the spacer provided (fig. 6) to screw the back
of the unit to a round recessed back-box.
To screw the back of the unit to a wall (fig. 7) use
the spacer, 2 screws and wall plugs provided.
