ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
176

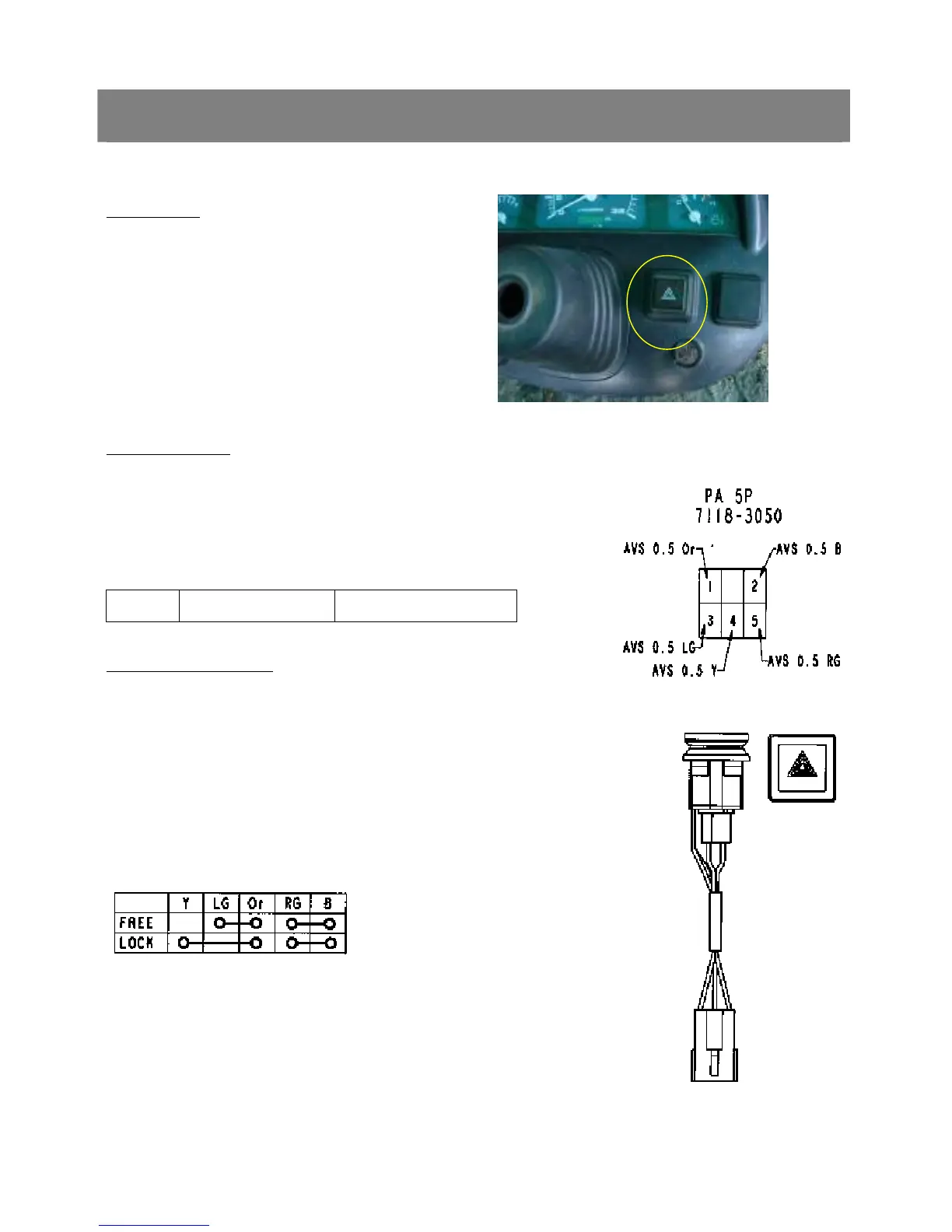

(9) Hazard Switch
Hazard Switch
1. Remove the meter panel and disconnecting the 4P
connector from hazard switch after disconnect
the battery negative code.
2. Remove the hazard switch.
3. Perform the following.
Connector Voltage
1. Connect the battery negative code, then measure the voltage with a
voltmeter across the a terminal and
chassis.
2. If the voltage differs from the battery voltage, the wiring harness is
faulty.
Voltage a terminal – Chassis Approx. battery voltage
Hazard Switch Continuity
1. Measure the resistance with ohmmeter across the a terminal and c
terminal, and across the d terminal and e terminal.
2. If the measurement is not as followed below, the hazard switch or the bulb is
faulty.
(1) Hazard Switch
(2) Bulb
8. CHECKING DISASSEMBLING AND SERVICING
