Branson 2100 - Flasher Unit; Flasher Unit Actuation Test

ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
177

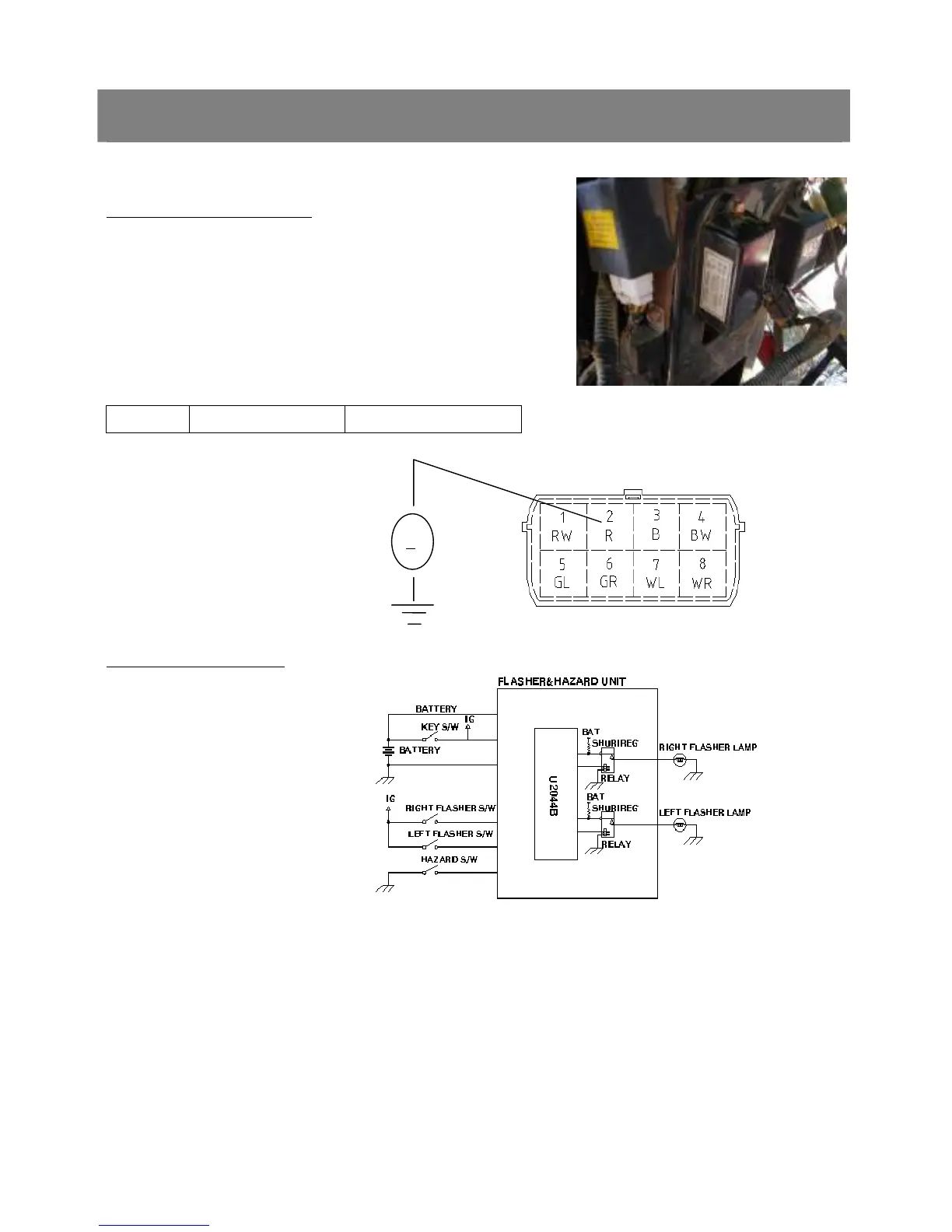

(10) Flasher Unit
Flasher Unit connector Voltage
1. Remove the instrument panel.
2. Disconnect the connector (2) from the flasher unit (1).
3. Measure the voltage with a voltmeter across the h terminal and
chassis.
4. If the voltage differ from the battery voltage, the wiring harness
is faulty.
Voltage 2 terminal – Chassis Approx. battery voltage
Flasher Unit Actuation Test
1. Set the hazard switch to the
ON position, and make sure
the hazard light gives 60 to 85
flashes for a minute.
2. With the main switch and the
hazard switch at the ON
positions, respectively, move
the turn signal switch to the
left. Make sure that the right-
hand light stays on and the
left - hand light gives flashes
earlier (by about 20 flashes) than when the hazard lamp is activated. Then move the turn signal switch to
the right and make sure the corresponding actions take place.
3. Now set the main switch to the ON position and move the turn signal switch alone.
Make sure the same action as above result.
8. CHECKING DISASSEMBLING AND SERVICING
