Branson DCX A Series - Table 5.1 DCX a Power Supply Benchtop Dimensional Drawing

44 100-412-197 REV. 07

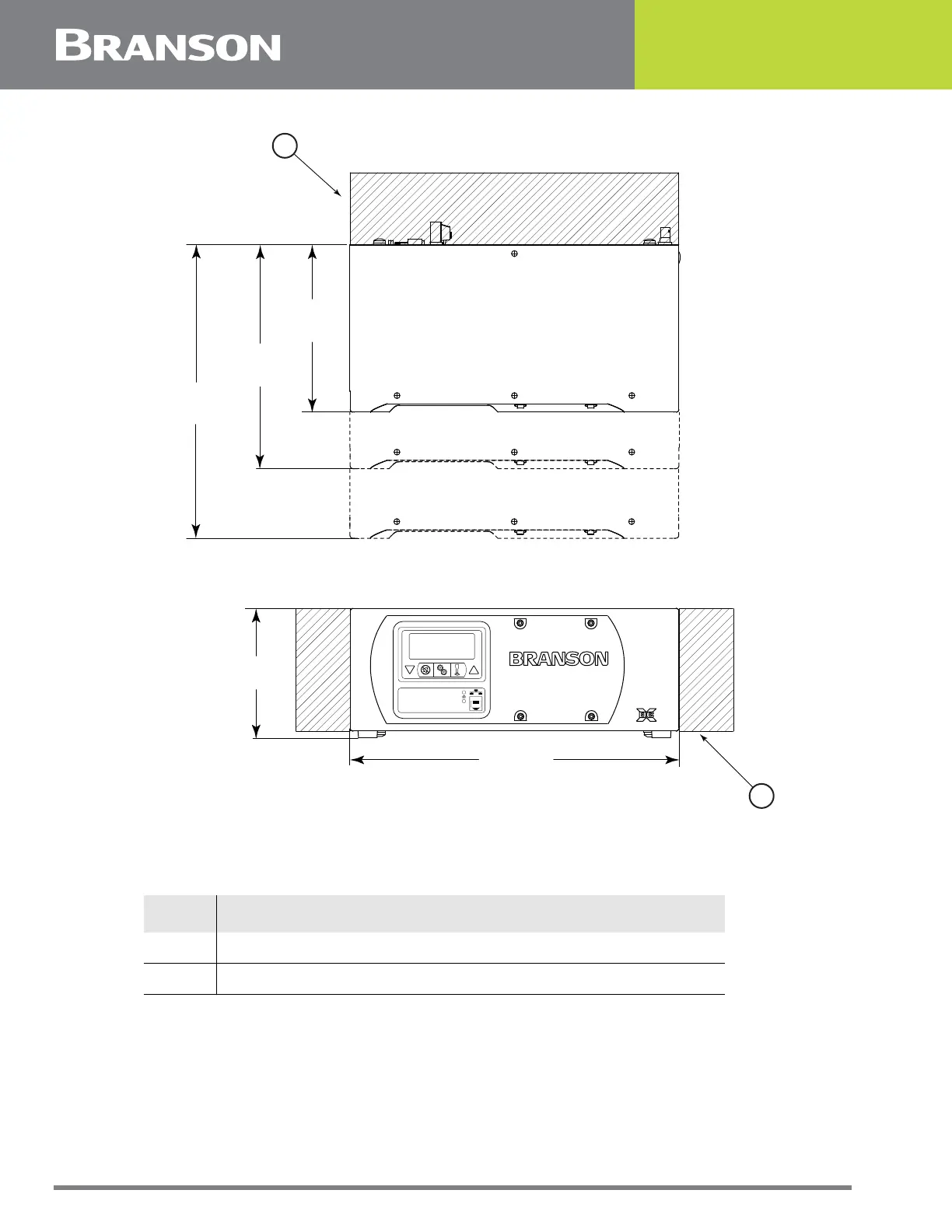

Figure 5.1 DCX A Power Supply Benchtop Dimensional Drawing
Table 5.1 DCX A Power Supply Benchtop Dimensional Drawing
Item Note
1 5.0 in (127 mm) recommended clearance for cables.
2 3.0 in (76 mm) recommended fan clearance (both sides).
5.53 in
(140.5 mm)
14.00 in
(355.6 mm)
24V
2
1
Small
7.38 in (187.4 mm)
400 W - 800 W
Medium
8.63 in (219.2 mm)
1250 W - 1500 W
Large
10.63 in (270 mm)
2500 W - 4000 W
