5.5.4 Connecting Tip to Horn
1. Ensure that the mating surfaces of the tip and horn are clean. Remove any foreign matter from
the threaded stud and hole.
2. Hand assemble the tip to the horn. Assemble dry. Do not use any silicone grease.
3. Use the spanner wrench and an open-end wrench (refer to
Figure 5.13 Connecting Tip to Horn)
and tighten to the following torque tip specifications:

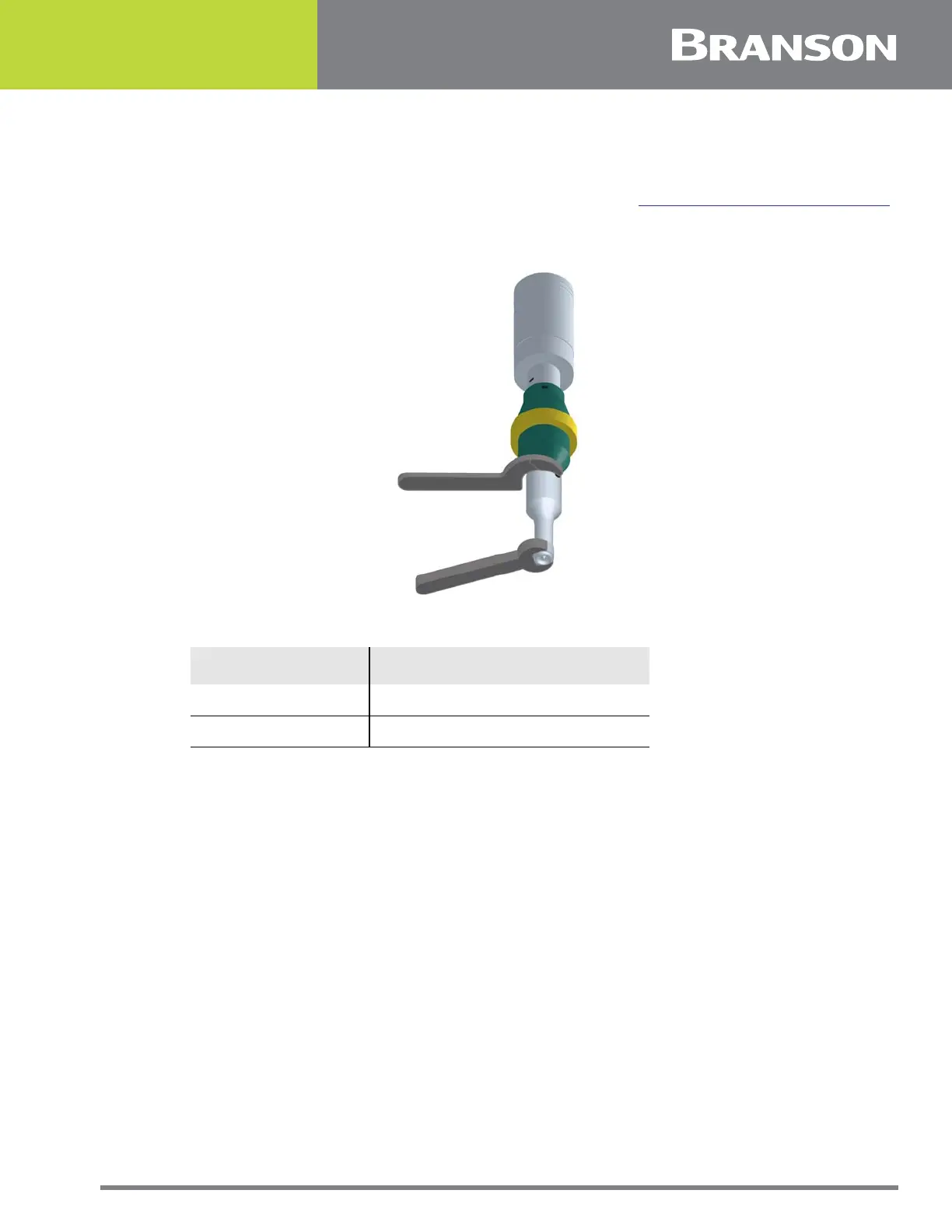

Figure 5.13 Connecting Tip to Horn
Table 5.25 Tip to horn torque values
Tip Thread Torque
1/4 - 28 110 in·lbs (12.42 N·m)
3/8 - 24 180 in·lbs (20.33 N·m)
