Branson DCX A Series - Figure 5.6 DCX a Power Supply Connections (Horizontal Model); Table 5.7 DCX a Power Supply Connections (Horizontal Model)

52 100-412-197 REV. 07
5.3.5 Electrical Connections

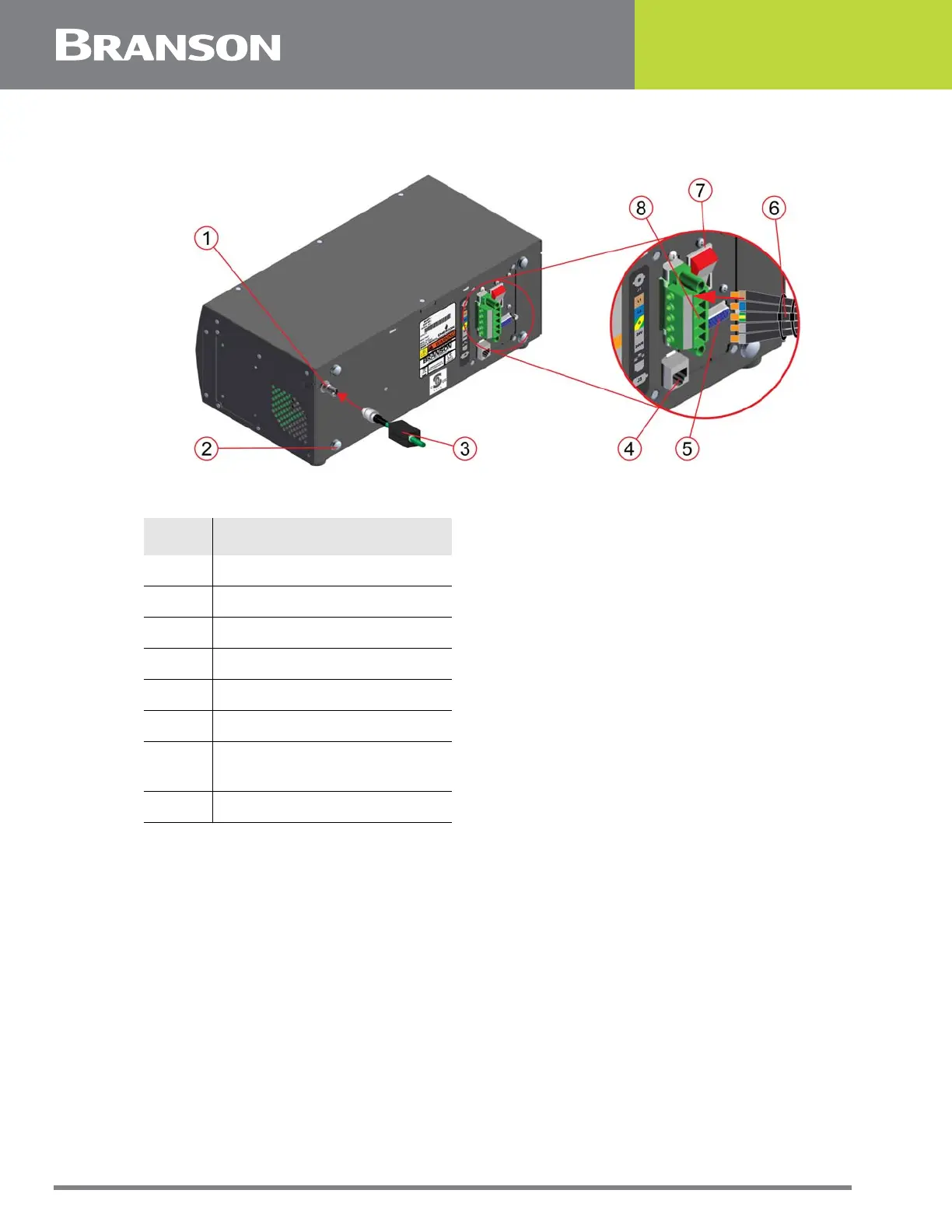

Figure 5.6 DCX A Power Supply Connections (Horizontal Model)
Table 5.7 DCX A Power Supply Connections (Horizontal Model)
Item Description
1 RF Connector
2 Ground Screw
3 RF Cable (Ferrite End)
4 Ethernet Port
5 User I/O Connectors
6 Line Cord
7
Circuit Breaker (On/Off
Switch)
8 Input Power Connector
