BRITAX Child Safety, Inc.

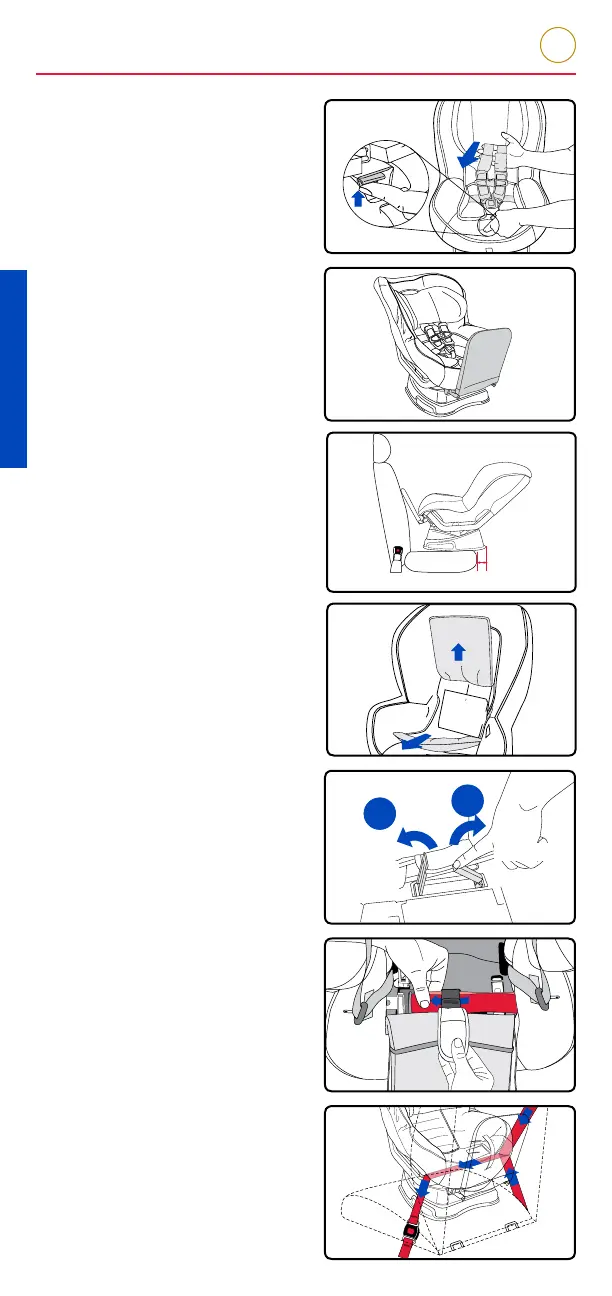

Lap-Shoulder Belt Installation
1. Loosen the harness.
a. Lift harness adjuster
lever and pull both
harness straps
forward.
b. Remove the infant
positioning pillow
and unbuckle the
harness.
2. The anti-rebound bar is
required for rear facing
installations. Attach the
anti-rebound bar (see
page 26).
IMPORTANT: Keep
fingers away from the anti-
rebound bar connection
points to avoid finger
entrapment or pinching.
3. Recline the unoccupied
child seat to position 3
and place rear-facing on
the vehicle seat (see page
24). Ensure that no more
than
7.5 cm (3 in.)
of the
base hangs over the edge
of the vehicle seat
.
4. Pull the head restraint/
head pad cover up,
then pull the seat cover
forward to access the
rear-facing belt path.
5. If applicable, open the
blue lock-o closest to
where the vehicle belt will
be buckled (see page 24).
a. Open the locking tab.
b. Open the clamp.
6. Route the vehicle belt
through the rear-facing
belt slots.
7. Buckle the seat belt.
NOTE: Ensure the vehicle
belt is not twisted.
5b
5a
Locking
Tab
Clamp
IMPORTANT • ALWAYS position the buckle in the inner
slot for rear-facing use. • The
vehicle belt must pass in front
of the buckle strap for
rear-facing use.
• NEVER leave the buckle in the
adjustment slot. • Use the outer
buckle slot when installing the
child seat forward-facing with a child weighing 30 lbs
(13.6 kg) and above or if the buckle is under the child in
INNER SLOT
OUTER SLOT
P405600_R1.05.10
ADJUSTMENT
SLOT
