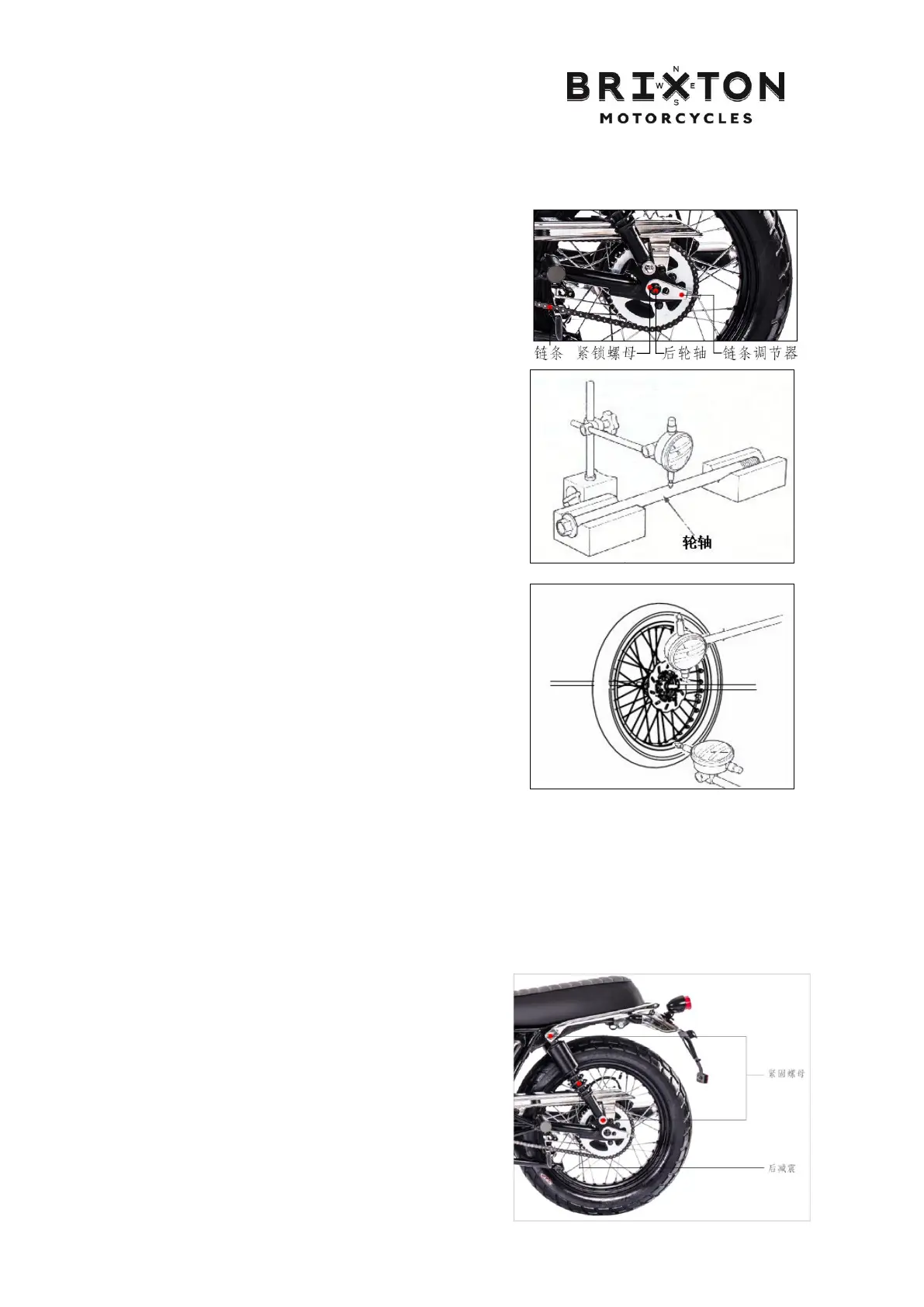

4.3 Rear Wheel
4.3.1 Removal
Release the adjuster.
Release rear axle nut.
Remove rear axle nut, and remove the chain from the sprocket seat.
Remove the rear axle.
Remove the rear wheel.
4.3.2 Inspection
4.3.2.1 Axle bending inspection
Place the axle on a V-seat, and measure eccentricity with
a micrometer gauge.
Allowable limit: replacing in case of exceeding 0.2mm
4.3.2.2 Wheel rim wobbling inspection
Rotate the rear wheel manually and measure eccentricity
with a micrometer gauge.
Allowable limit:
Longitudinal direction: replacing in case of exceeding
2. 0mm
Horizontal direction: replacing in case of exceeding 2.
0mm
If the rear wheel wobbling exceeds the allowable limit, the rear wheel bearing is loosened, and the
rear wheel is bent. Replace the rear wheel shaft after inspection.
4.3.3 Installation
Install the rear wheel in reverse sequence of disassembly and lock the nut.
Lock nut, rear wheel shaft
Torque value: 75-85N·m
4.4 Rear Shock Absorber
4.4.1 Removal
Remove the fixing screws of rear shock absorber.
Remove the rear shock absorber.
4.4.2 Inspection
