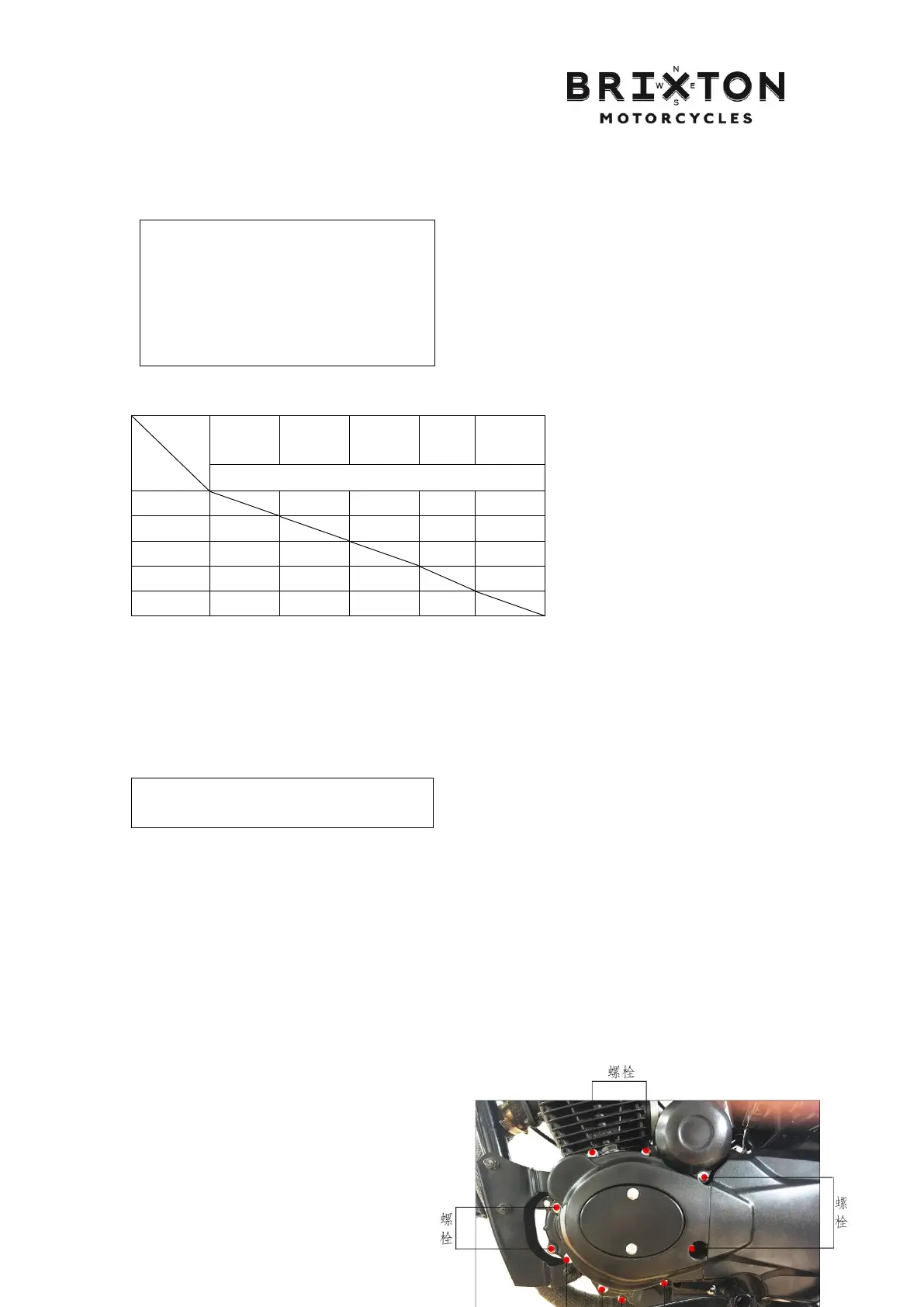

Brixton BX125 - Generator Charging and Lighting Coils

63
If the main wiring end is checked as completely normal, check whether the voltage and current
regulator plug is in proper contact, and measure the impedance values between the terminals of the
voltage and current regulator.
* Attentions
• Do not touch the metal part of
multimeter probe with your finger.
• Check with a multimeter. If impedance
values measured by different multimeters
are not the same, it indicates incorrect
inspection.
When impedance value between terminals is abnormal, voltage regulator shall be replaced.
Multimeter
Positive
Negative
Yellow
1
Yellow
2
Yellow
3
Black
Red
Unit: MΩ
Yellow 1
0.1~3
0.1~3
None
None
Yellow 2
0.1~3
0.1~3
None
None
Yellow 3
0.1~3
0.1~3
None
None
Black
None
None
None
None
Red
None
None
None
None
5.6 Generator Charging and Lighting Coils
* Attentions
Inspection of generator charging coil can
be performed on the engine.
Inspection
Disconnect the 4P connector on the generator.
Use a multimeter to measure impedance value between white coils of the generator and vehicle
block.
Standard value: 0.6-1Ω(20
℃)
测定值超过标准值时发电机线圈更换。
If measured value exceeds the standard value, the generator coiling shall be replaced.
