G720-Install-IG101 Installation Guide Brocade
®
G720 Switch Hardware Installation Guide

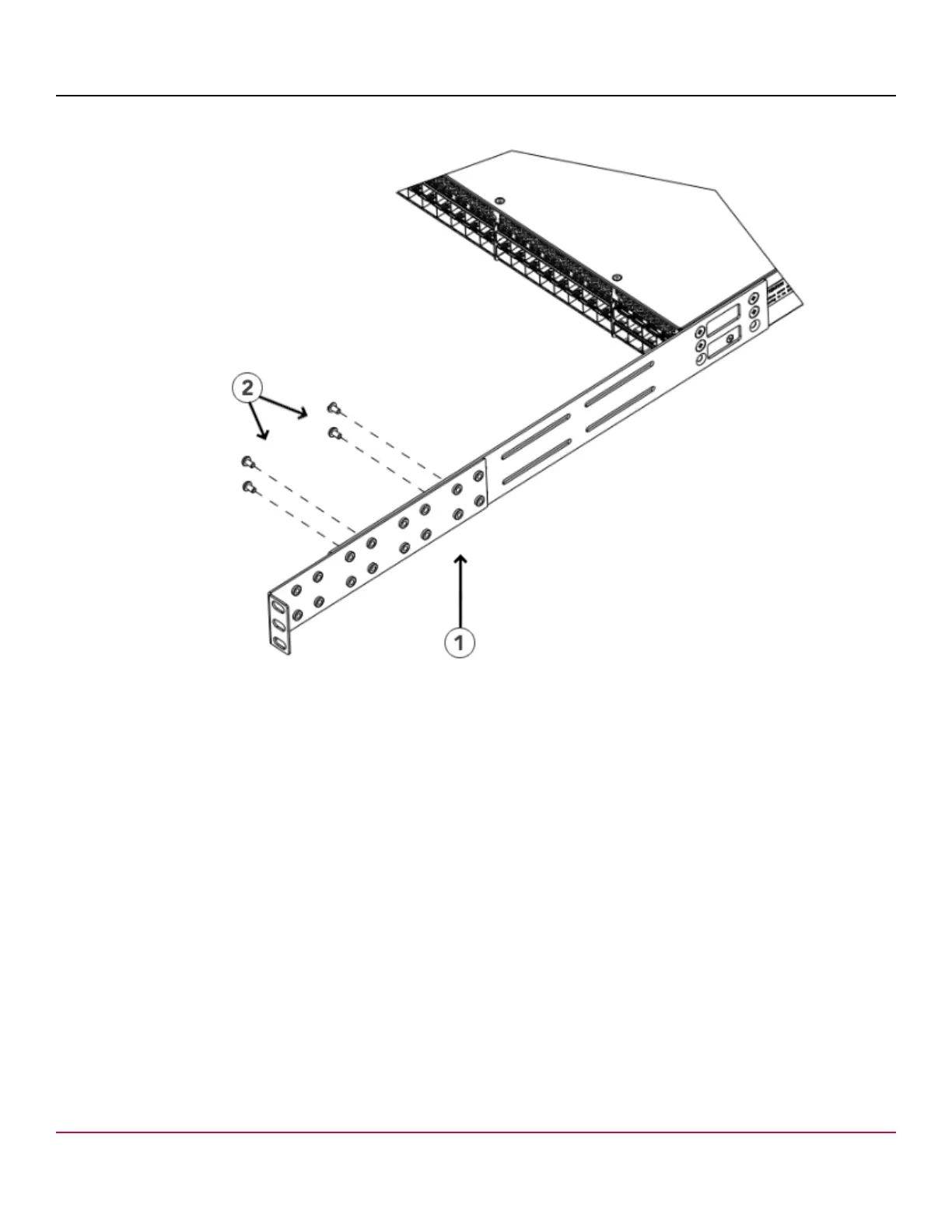

Figure 13: Attaching the Short or Long Rear Brackets to the Extensions
1. Rear Bracket, Short or Long
2. Screws, 6-32 x 1/4-in. Panhead Phillips
G720-Install-IG101
33
