Brocade NetIron CES Series 2024F-4X
The Brocade NetIron CES Series 2024F-4X has twenty-four 100/1000 MbE SFP ports plus four
combination 10/100/1000 MbE RJ45 ports, 4-port 10 GbE SFP+ module, one DB9 serial management
interface port labeled Console, one 10/100/1000 MbE RJ45 out-of-band management port, one resilient
six-unit fan tray, and two AC power supply bays for 1+1 redundancy with one 500W AC power supply
included.

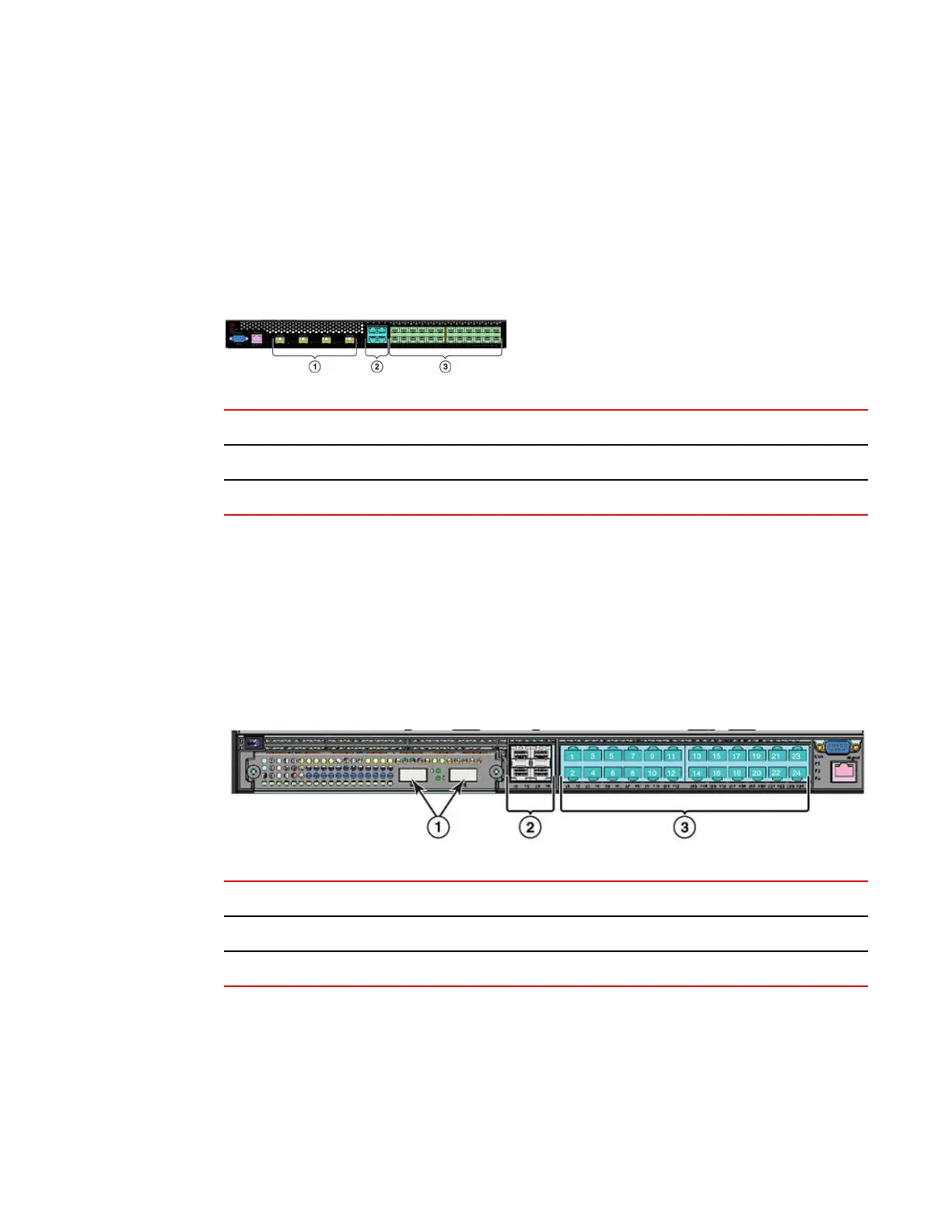

FIGURE 20 Brocade NetIron CES Series 2024F-4X device
1 10 GbE SFP+ ports
2 Four combination 10/100/1000 MbE RJ45 ports
3 Twenty-four 100/1000 MbE SFP ports
Brocade NetIron CES Series 2024C
The Brocade NetIron CES Series 2024C switch has twenty-four 10/100/1000 MbE RJ45 ports plus four
combination 100/ 1000 MbE SFP ports, one module slot for an optional field upgradable 2-port 10 GbE
XFP module, one DB9 serial management interface port labeled Console, one 10/100/1000 MbE RJ45
out-of-band management port, one resilient six-unit fan tray, and two AC power supply bays for 1+1
redundancy with one 500W AC power supply included.
FIGURE 21 Brocade NetIron CES Series 2024C device with the optional 2 ports of 10-G XFP uplink
1
Optional 10 GbE XFP ports
2 Four combination 100/1000 MbE SFP ports
3 Twenty-four 10/100/1000 MbE RJ45 ports
Brocade NetIron CES Series 2024F
The Brocade NetIron CES Series 2024F has twenty-four 100/1000 MbE SFP ports plus four
combination 10/100/1000 MbE RJ45 ports, one module slot for an optional field upgradable 2-port 10
GbE XFP module, one DB9 serial management interface port labeled Console, one 10/100/1000 MbE
Brocade NetIron CES Series 2024F-4X
Brocade NetIron CES 2000 Series and NetIron CER 2000 Series Hardware Installation Guide 23
53-1003823-01
