DANGER
The intra-building port or ports of the equipment or subassembly is suitable for connection to
intra-building or unexposed wiring or cabling only. The intra-building port or ports of the
equipment or subassembly MUST NOT be metallically connected to interfaces that connect to
the outside plant (OSP) or its wiring. These interfaces are designed for use as intra-building
interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 5) and require
isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient
protection in order to connect these interfaces metallically to OSP wiring.
Console port pin assignments
The console port is a standard male DB-9 connector, as shown in Console port pin assignments.

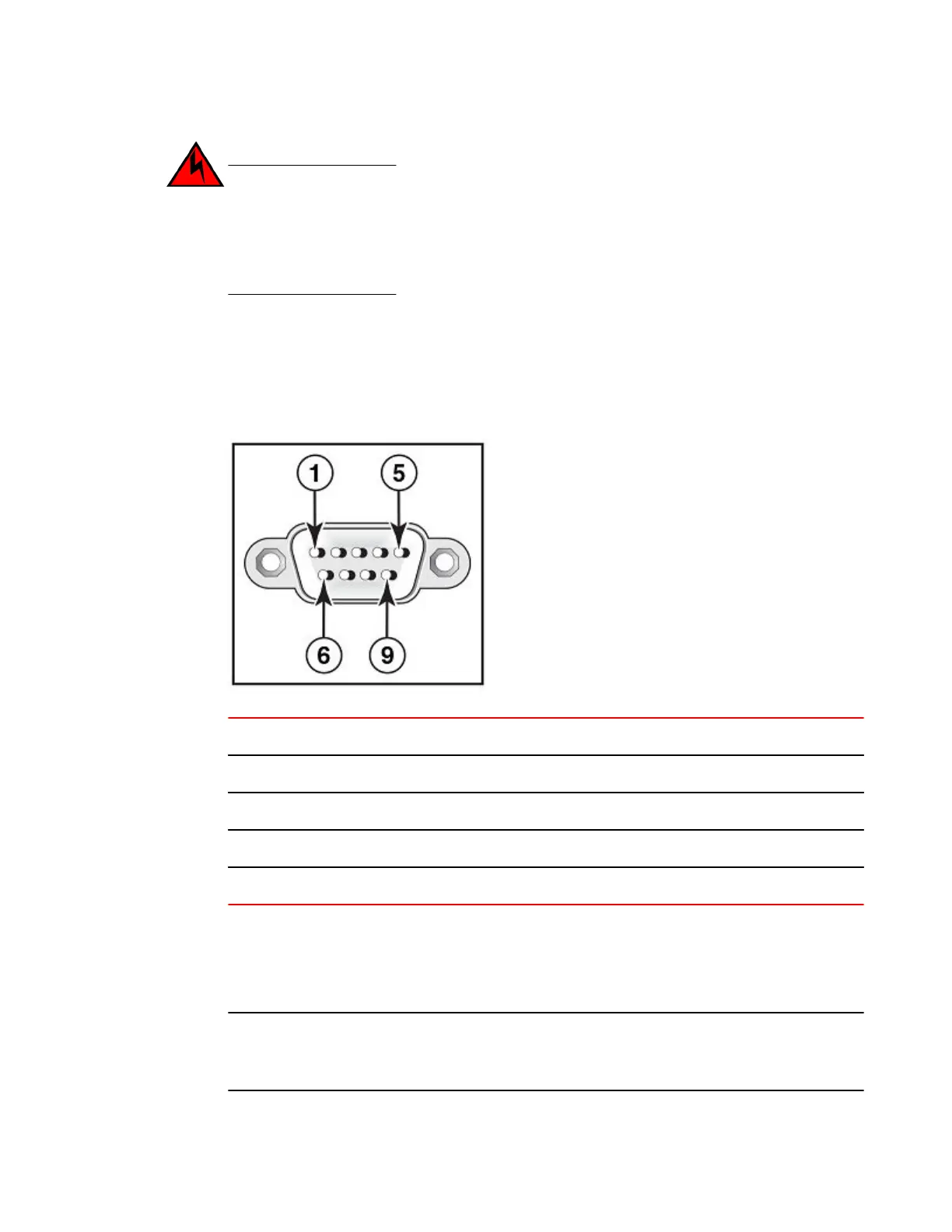

FIGURE 46 Console port pin and signalling details
1 Reserved 2 TXD (output)
3 RXD (input) 4 Reserved
5 GND 6 Reserved
7 Reserved 8 Reserved
9 Reserved
Most PC serial ports require a cable with a female DB-9 connector. However, terminal connections will
vary, requiring a cable with either a DB-9 or DB-25 connector, male or female.
Serial cable options between the Brocade device and a PC or terminal are shown in Figure 47 .
NOTE
As indicated in Console port pin assignments and Figure 47 , some of the wires should not be
connected. If you do connect the wires that are labeled "Reserved", you might get unexpected results
with some terminals.
Console port pin assignments
76 Brocade NetIron CES 2000 Series and NetIron CER 2000 Series Hardware Installation Guide
53-1003823-01
