CAUTION
For a Brocade AC system, use a ground wire of at least 6 American Wire Gauge (AWG). The
ground wire should have an agency-approved crimped connector (provided with the
chassis) attached to one end, with the other end attached to building ground. The connector
must be crimped with the proper tool, allowing it to be connected to both ground screws on
the enclosure.
NOTE
To insure adequate bonding when attaching the provided Panduit LCD6-10AF two-hole ground lug,
a minimum of 20 inch pounds of torque is required to be applied to the mounting hardware used to
attach the ground lug. Use a star washer to ensure an NEBS compliant connection.
Installing a DC power supply
DANGER
Before beginning the installation, see the precautions in “Power precautions.”
Use the following procedures for DC power supplies in Brocade NetIron CES Series, Brocade NetIron
CER Series 2000 series devices.
Follow the steps given below to install an DC power supply.
1. If necessary, remove the power supply locking screws located in the upper left and the bottom right
of the device.
2. If the empty power supply bay has a cover plate, remove the two screws near the edges of the
cover plate to unlock the plate, then remove the plate.
3. Remove the DC power supply from its packaging (Installing a DC power supply).

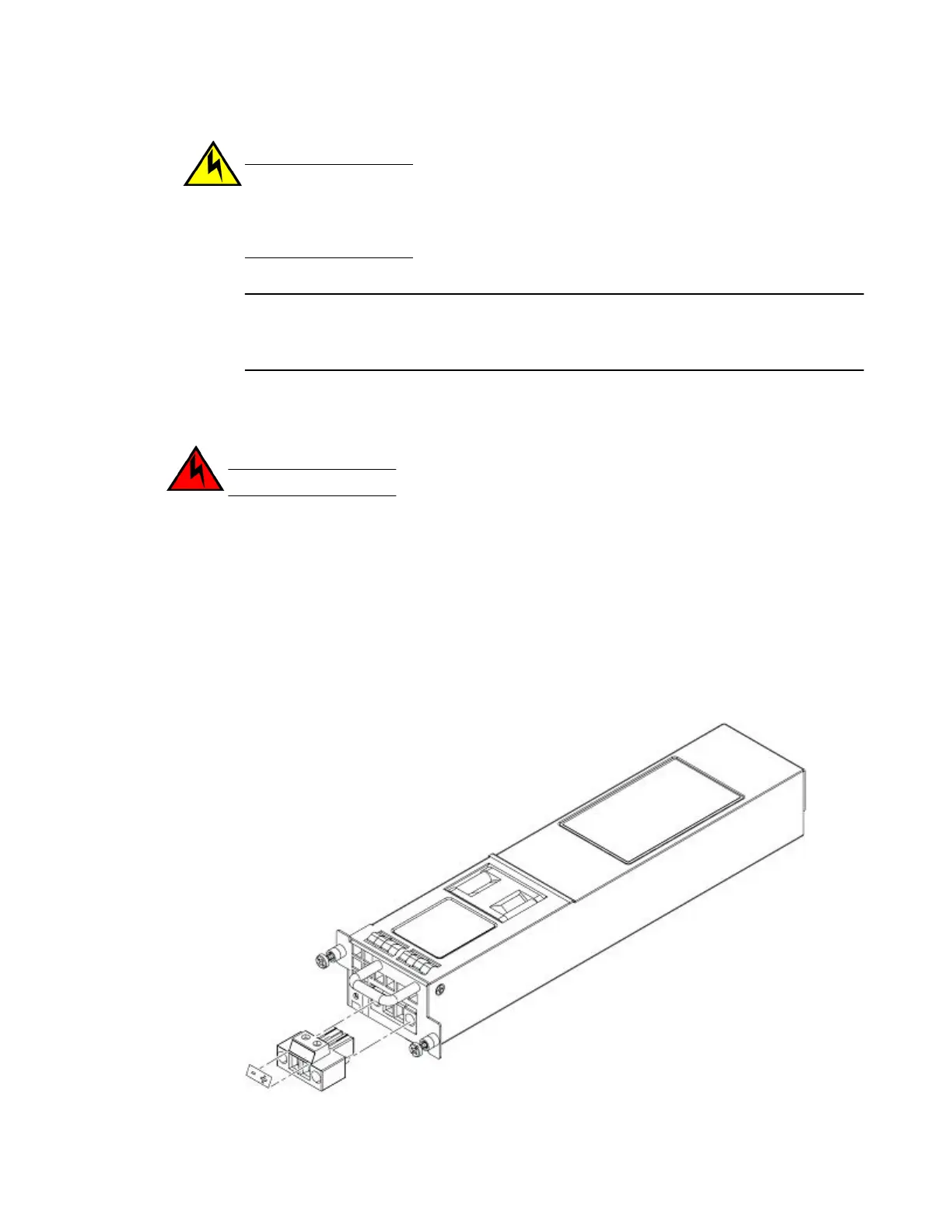

FIGURE 38 The DC power supply
4. Insert the wires into the DC wiring assembly (Installing a DC power supply).
Installing a DC power supply
50 Brocade NetIron CES 2000 Series and NetIron CER 2000 Series Hardware Installation Guide
53-1003823-01
