Follow the procedure given below to install an AC power supply.
1. If necessary, remove the power supply locking screws located in the upper left and the bottom right
of the device (illustrated below).

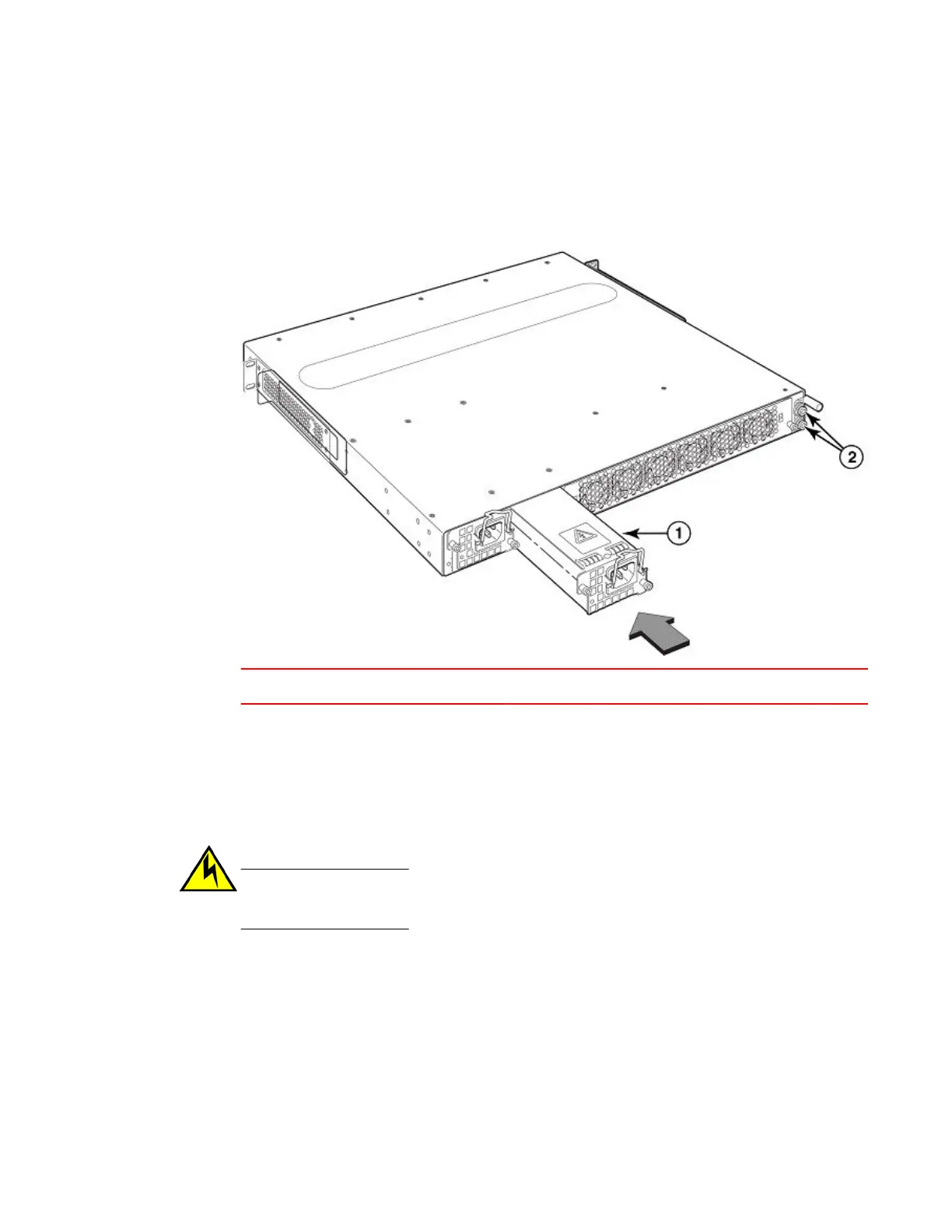

FIGURE 37 Power supply installation
1 Power supply 2 Grounding terminals
2. If the empty power supply bay has a cover plate, remove the two screws near the edges of the cover
plate to unlock the plate, then remove the plate.
3. Remove the power supply from its packaging.
4. With one hand, hold the bar on the front panel of the power supply. With the other hand, support the
underside of the power supply, and insert the power supply into the empty power supply slot. Press
until the supply is completely in the slot, so that the connectors on the back of the supply are fully
engaged with the pins on the power backplane.
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure
the power supply is properly inserted in the guides. Never insert the power supply upside
down.
5. Secure the two screws near the edges of the supply to lock the supply in place.
6. Lift the AC cord retainer clip.
7. Connect the power cord to the power supply.
8. Snap the AC cord retainer clip over the power cord.
9. Connect the plug end of the power cord into outlet.
Installation
Brocade NetIron CES 2000 Series and NetIron CER 2000 Series Hardware Installation Guide 49
53-1003823-01
