1-16
Section 1 Introduction
Models MT 3809 & 3819
Installation and Operation Manual
X-VA-MT3809-3819-eng
Part Number: 541B049AHG
September, 2008

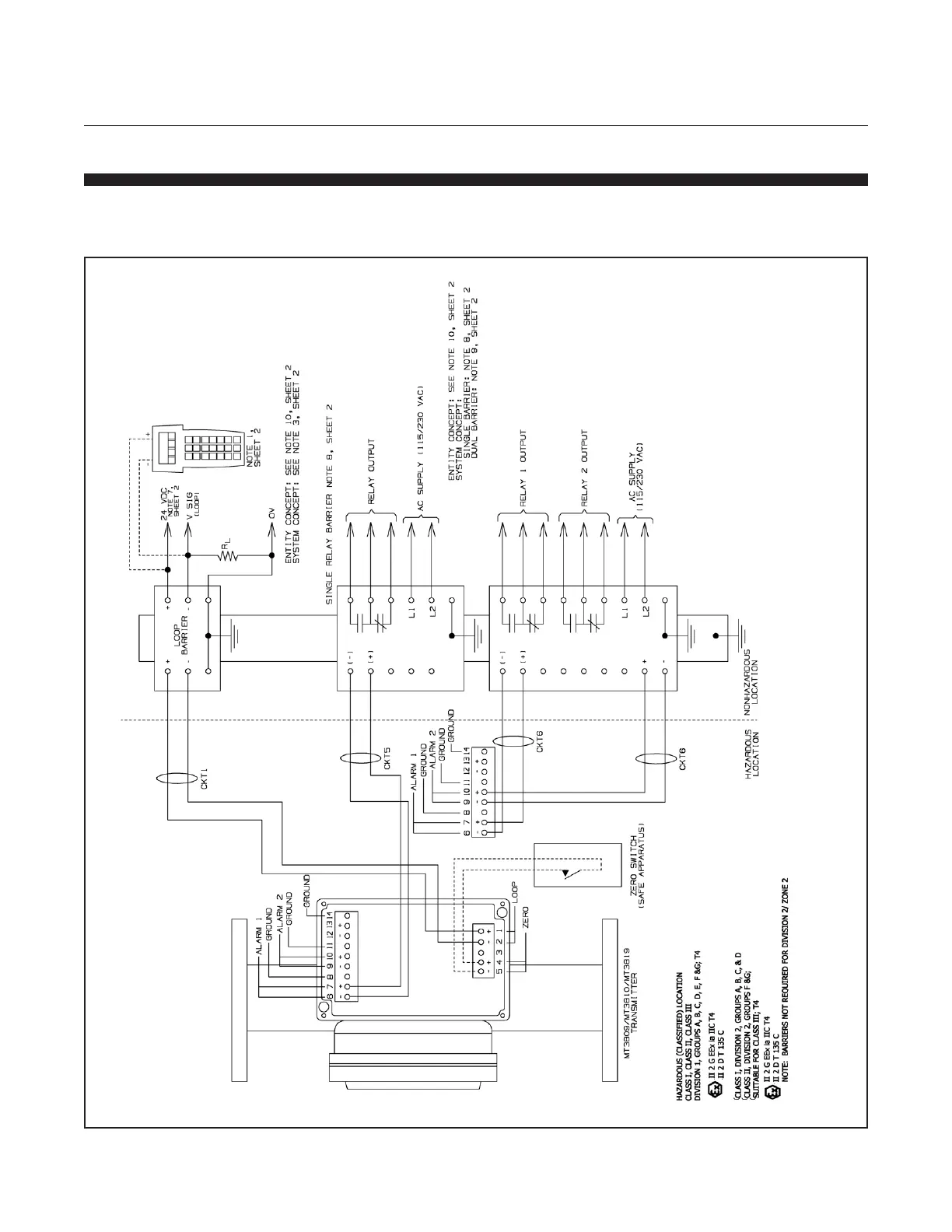

Figure 1-8 Transmitter with Inductive Alarm Wiring Diagram
1-7 Microprocessor Transmitter with Inductive Alarms
This combined system provides both the sophistication of the microprocessor along with the simplicity of one or
two switch inductive alarms. Specifications for the transmitter are as stated previously and specifications for the
front adjustable inductive alarms are as follows. For Wiring Diagrams, Refer to Figures 1-8 and 1-9.
Ref. No.981Y007 - Rev. F Sheet 1 of 2
To Next Page
