Brooks MT 3809 - Multi-Drop SMM Transmitter Analog Output and Power Wiring

2-6
Models MT 3809 & 3819
Section 2 Installation Installation and Operation Manual
X-VA-MT3809-3819-eng
Part Number: 541B049AHG
September, 2008

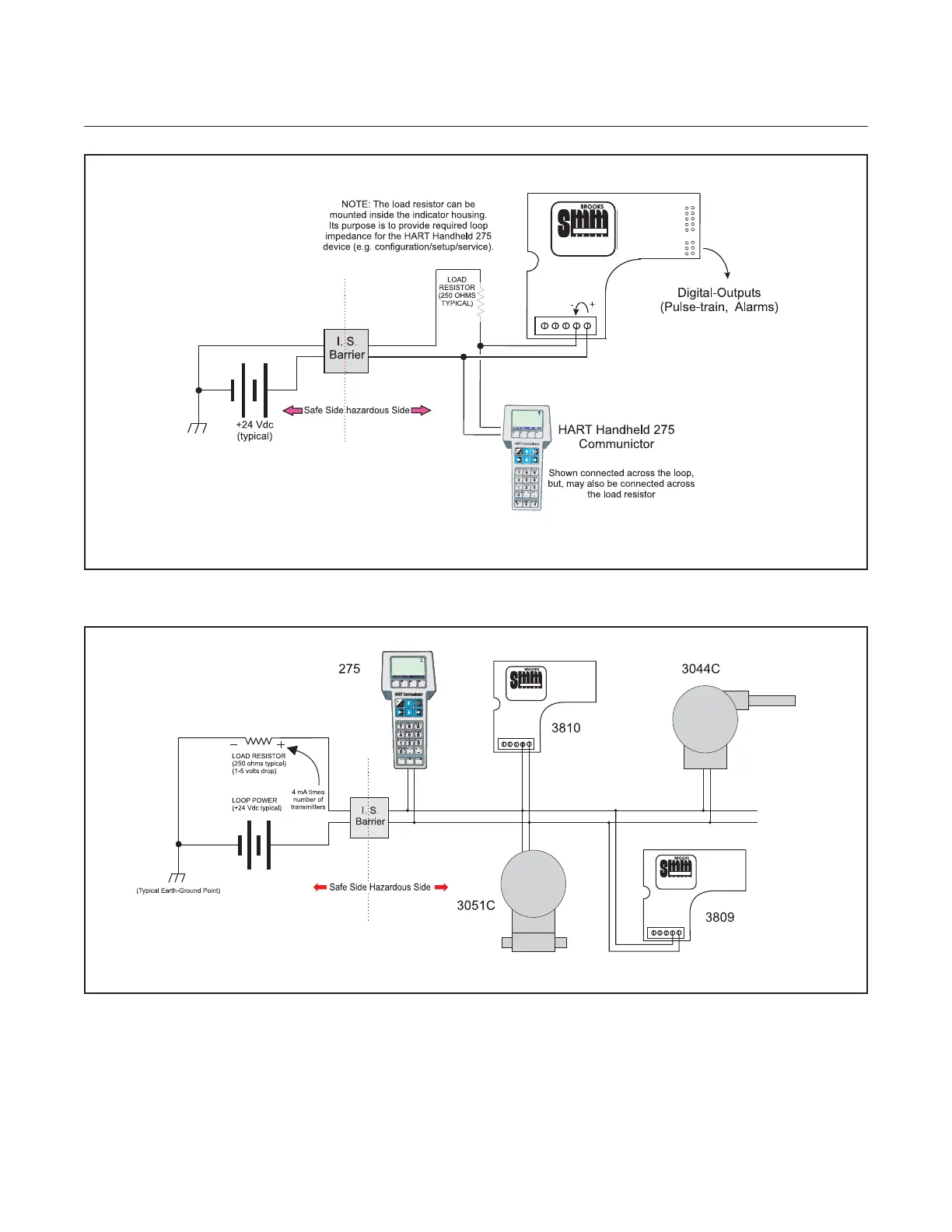

Figure 2-4 Alternate SMM Transmitter Analog Output and Power Wiring (Where 4-20 mA signal is not required)
Figure 2-5 Multi-drop SMM Transmitter Analog Output and Power Wiring
