4.5 Vibration Pad EIB207V
Smoke and Heat Alarms may not provide an early warning for hearing impaired.
Brooks has added additional equipment to provide warning for the hearing impaired
occupants, the Vibration pad EIB207V is a device that can be placed under the pillow
to provide an early warning for hard of hearing occupants.
Note: The Vibration pad does not detect fire, it responds only to a fire detected by
Smoke or Heat Alarm which compromises a part of RFS1 V2 zone detection circuit.

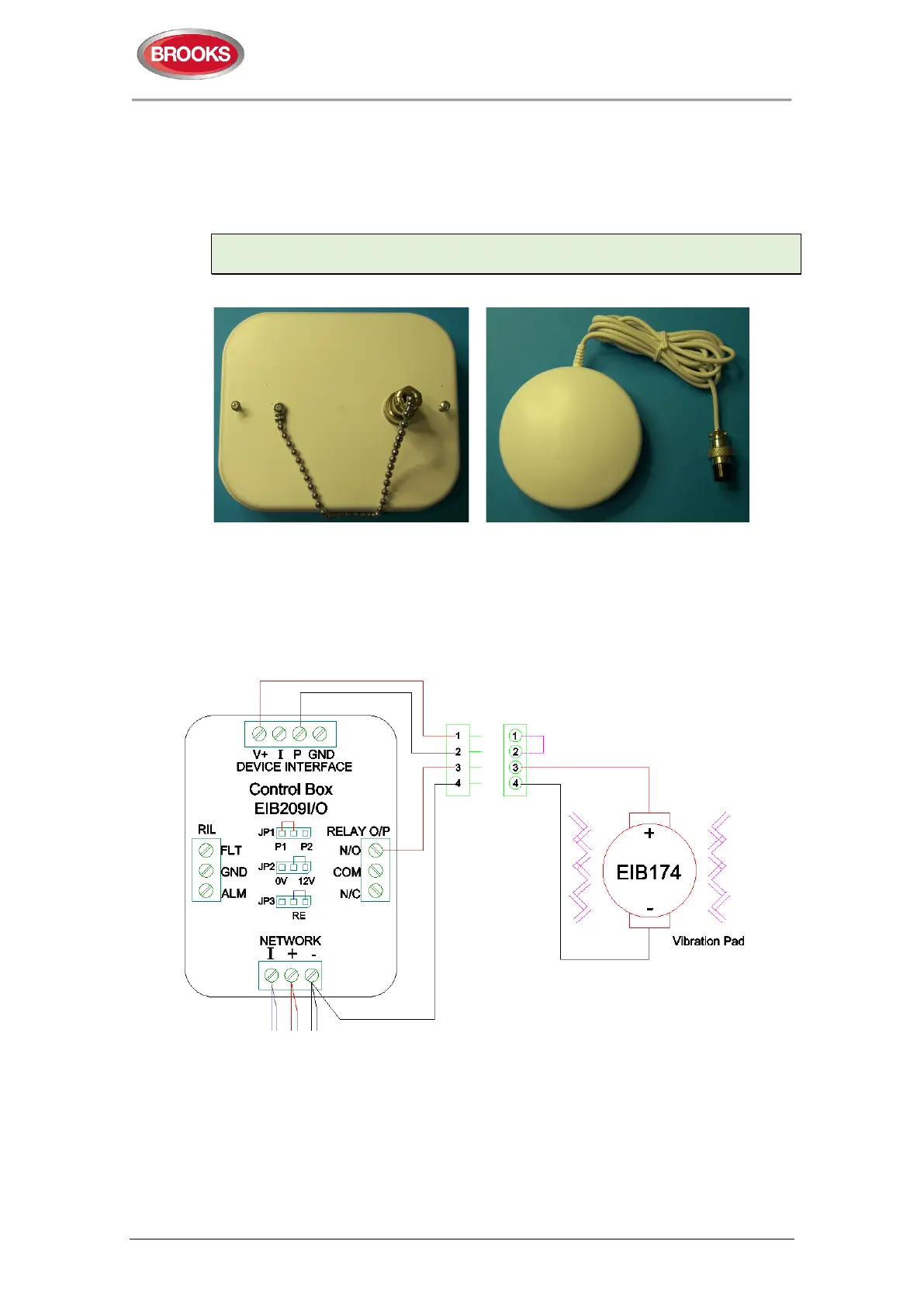

EIB207V Control Box EIB207V Vibration Pad
Figure 15 EIB207V Vibration pad
The diagram shown Figure 16 below is used for wiring a vibration pad to RFS1 V2,
note the jumper link setting. The jumper across pin 1 & 2 in the vibration pad plug is
used to generate a fault when the plug is not fitted in the socket. The relay is
configured to switch +12V
DC
via the NO contact (0V is required from the zone –ve)
Figure 16 EIB207V connection diagram
4.6 Strobe Output
The second type of devices for hearing impaired is the strobe light, white and red
strobes conform to EN54.23 are now available to interface to EIB209I/O.
The connection diagram in Figure 17 below is used to connect a strobe (flashing
light) to the generic input / output module.
