Brother BAS-311E Service Manual

127
BAS-311E.311EL.326E.326EL
Chapter 10. Option parts

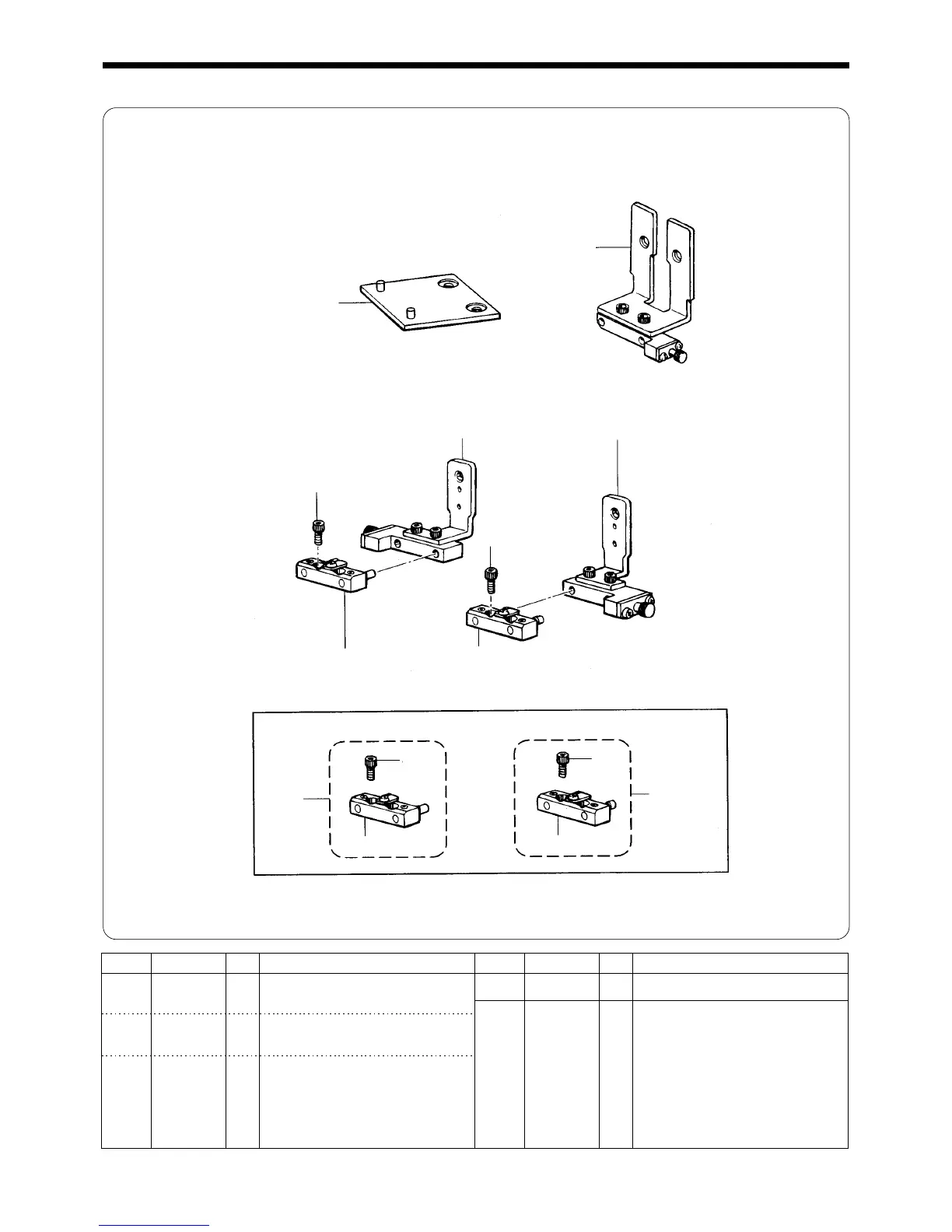

■ One-touch work clamp
CODE QTY NAME OF PARTSREF.NO.
1
2
3
3-1
3-2
3-3
3-4
3-5
4
4-1
4-2
5
5-1
5-2
3-1
3-2
CODE
S24612001
S14841001
S44794001
S20280101
S20286101
S20289101
S20293101
018680822
S20822101
S20289101
018680822
S20823101
S20293101
018680822
S20280101
S20286101
QTY
1
1
1
1
1
2
2
8
1
1
2
1
1
2
1
1
NAME OF PARTS
<For attaching the snap & hook>
ONE-TOUCH HOLDER ASSY,UN
<For change the feed plate setting position>
OT FEED PLATE BRACKET ASSY
<For One-touch work clamp set>
ONE-TOUCH WORK CLAMP SET
ONE-TOUCH HOLDER ASSY,L
ONE-TOUCH HOLDER ASSY,R
WORK CLAMP HOLDER ASSY,L
WORK CLAMP HOLDER ASSY,R
BOLT,SOCKET SM4.37X8
<For supply parts"
WORK CLAMP HOLDER SET,L
WORK CLAMP HOLDER ASSY,L
BOLT,SOCKET SM4.37X8
WORK CLAMP HOLDER SET,R
WORK CLAMP HOLDER ASSY,R
BOLT,SOCKET SM4.37X8
ONE-TOUCH HOLDER ASSY,L
ONE-TOUCH HOLDER ASSY,R
REF.NO.
2
1
3-2
3-5
3-3
3-4
For Supply parts
4
4-2
4-1
5-2
5
5-1
3-1
3-5
✩Parts which have an asterisk (*) parts which have been assembled and adjusted to high precisions. These parts should never be
disassembled.
