Brother BAS-311E Service Manual

70
BAS-311E.311EL.326E.326EL

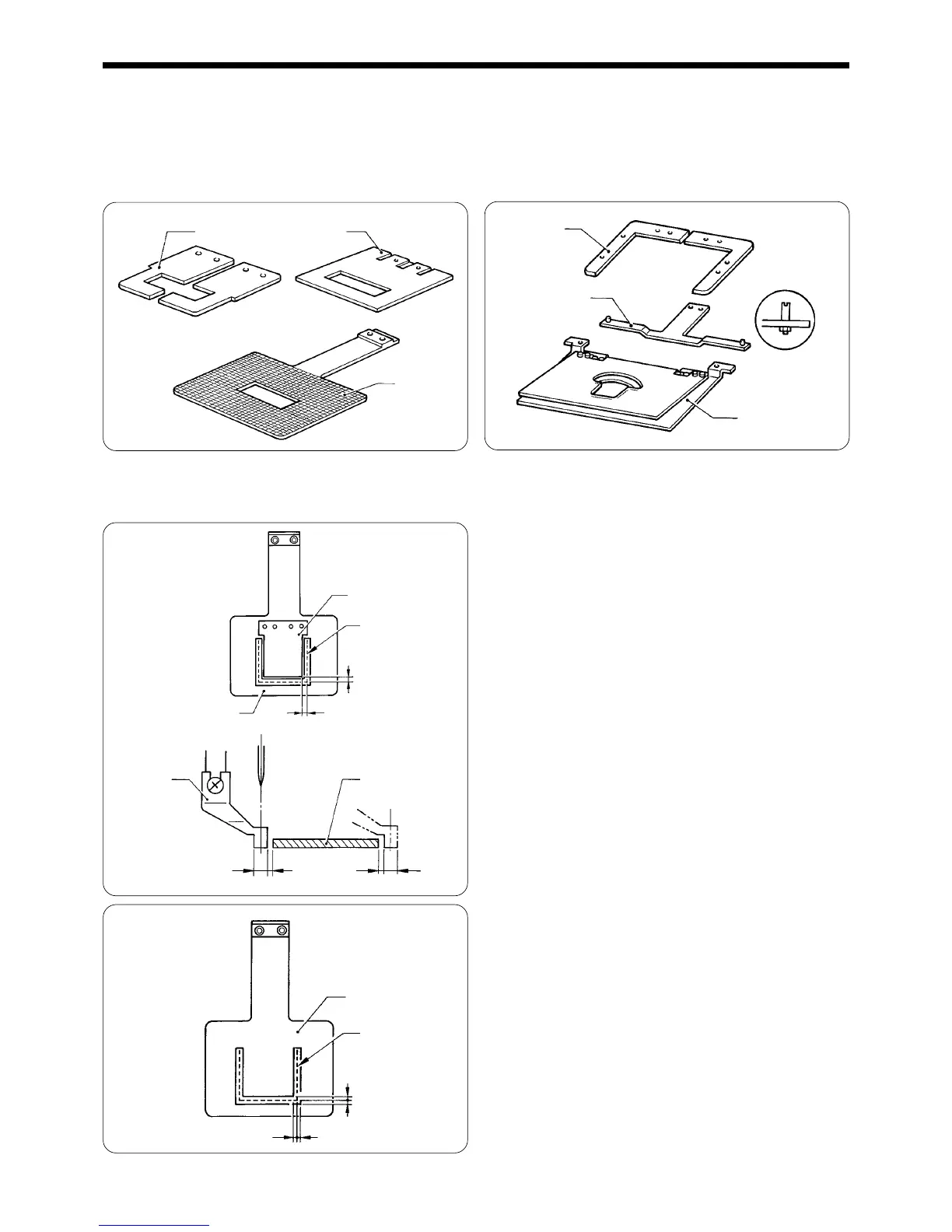

Chapter 5. How to make up the work clamp
Chapter 5. How to make up the work clamp
• The work clamp is available in two types; clamping type and cassette type.
The maximum sewing range is (W × L) BAS-311E (130mm × 60mm), 311EL (220mm × 60mm), 326E (200mm × 100mm),
326EL (220mm × 100mm).
■ Clamping type ■ Cassette type
1. How to make up clamping type work clamp
■ How to make up the work clamp
Cut out the work clamp blank so that the cutout size is
wider than the sewing position by (half of the presser
foot diameter + 1 to 1.5 mm).
D: diameter of the top end of the presser foot
■ How to make up the feed plate
Cut out the feed plate blank 1 to 1.5 mm apart from the
sewing position.
In the case of the left figure, 1 to 1.5 mm margin is re-
quired on both sides of the sewing position.
Work clamp
(separate
plate)
Work clamp
(single type)
Feed plate
Cassette clamp
Cassette support
Cassette clamp
assembly
1 - 1.5mm
1 - 1.5mm
1 - 1.5mm
1 - 1.5mm
Sewing position
Feed plate
1 - 1.5mm
D
Work clampPresser foot
Feed plate
(Feed plate blank)
D/2 + 1 to 1.5mm
D/2 + 1 to 1.5mm
Sewing position
(The needle threads
along)
Work clamp
(Single type work
clamp blank)
