BAS-311E.311EL.326E.326EL
Chapter 1. Mechanical description

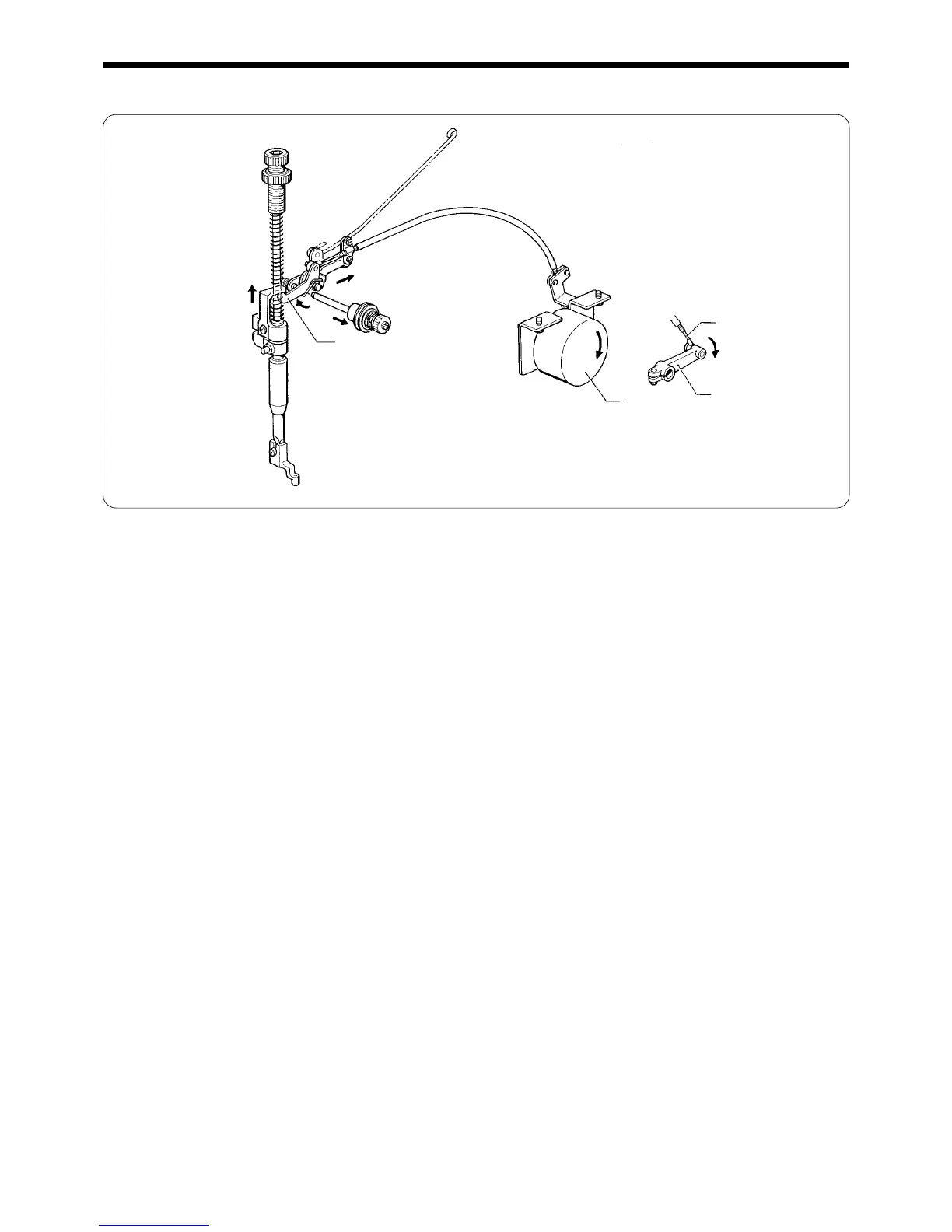

Presser foot mechanism (2)
1.
When the stepping work clamp signal is on, the stepping solenoid
q
operates the lifter lever
w
.
2.
The lifter lever
w
operates the work clamp lifter lever assy
r
via the work clamp lifter wire
e
.
Note:
When the machine stops, the stepping solenoid
q
operates, and the presser foot rises as soon as the work clamp
rises. At this time, tension releasing is performed.
w
q
e
r
14
16
