46
BAS-311E.311EL.326E.326EL
Chapter 3. Assembly

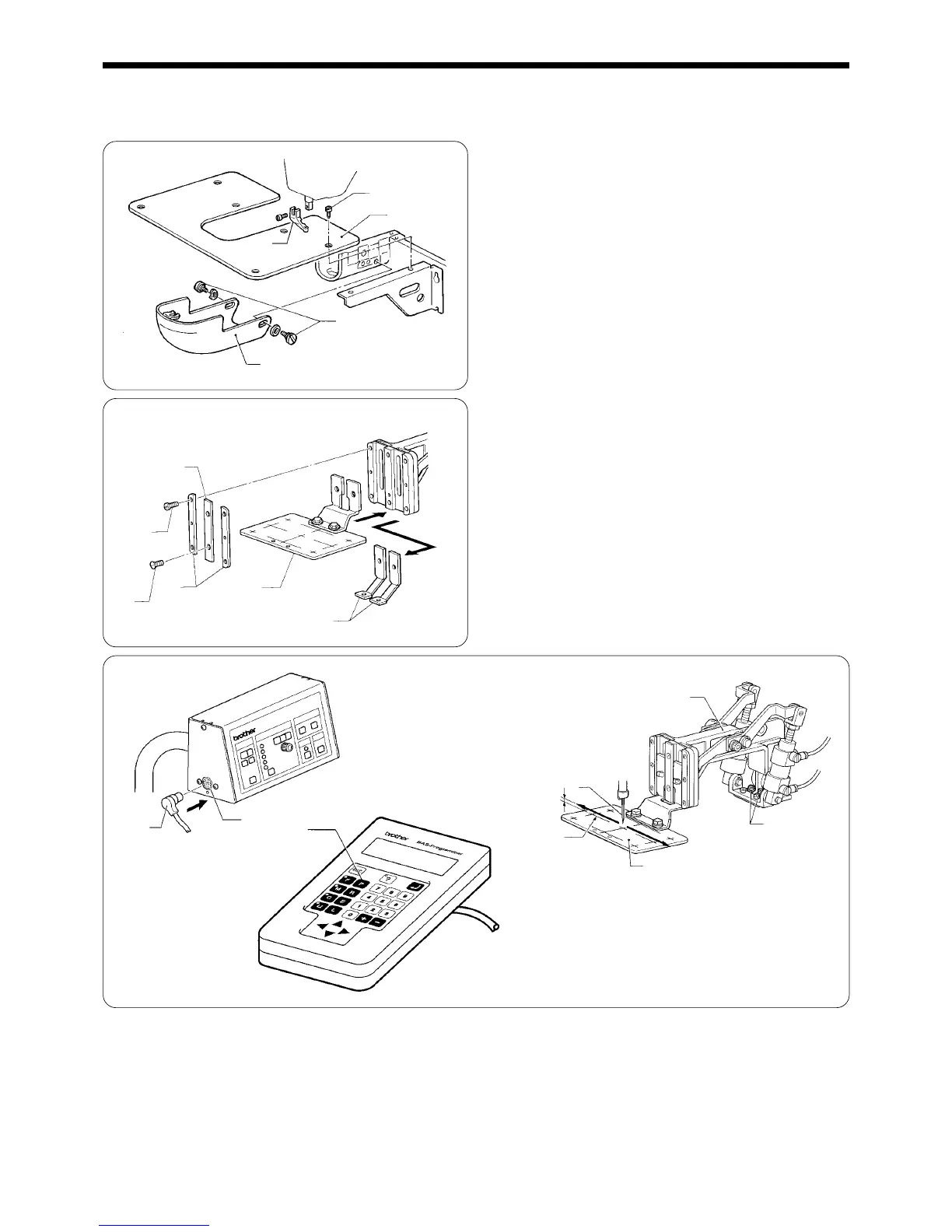

12. Feed guide mechanism (Home position adjustment: X )
311E, 311EL, and 326E
1. Secure the large shuttle hook cover q with the two
shoulder screws w.
2. Secure the needle sub plate e with the screw r.
3. Remove the presser foot t.
4. Remove the screws u, tlat screws o and the work
clamp guide brackets A y, B i and replace the work
clamp !0 with the H-position standard plate !1.
Note: Securely attach the H-position standard plate !1
using the work clamp guide brackets A y, B i
and the flat screws o.
5. Connect the programmer !2 to the operation panel !3.
6. Plug the cord into the wall socket, and turn on the power of the machine.
7. Step on the foot switch to lower the H-position standard plate !1.
8. Press the P key on the programmer !2.
9. Attach the needle !4.
10.Turn the pulley to bring the needle !4 close to the H-position standard plate !1.
11.Press the jog key ( vu ) to adjust the work clamp arm !5 until its X-direction motion is parallel to the X-reference line
of the H-position standard plate !1. Securely tighten the screws !6.
r
e
t
w
q
i
u
o
y
!1
!0
!3
!2
!5
!6
!1
!4
P key
X-reference
line
Parallel
