23
BAS-311E.311EL.326E.326EL
Chapter 2. Disassembly

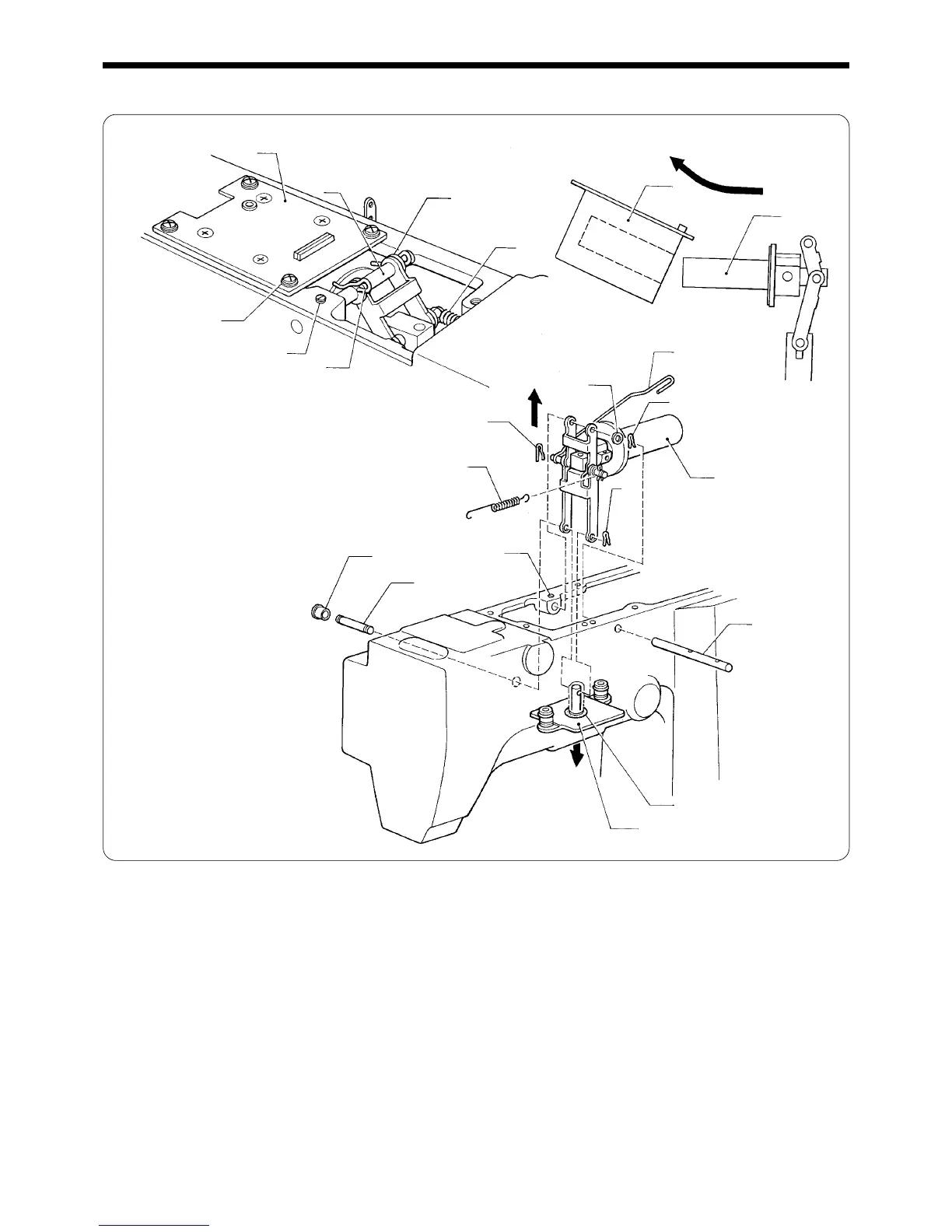

9. Work clamp lifter (Solenoid type)
1. Remove the spring q.
2. Remove the screw w, and the presser solenoid e from the plunger r by lifting the latter from above.
Be sure to hold the plunger r securely so that it does not fall.
3. Remove the snap pin t and the rod y.
4. Loosen the set screw u, and remove the snap pin i, link shaft A o, and the washer !0.
5. Remove the rubber cap !1, the snap pin !2, and link shaft C !3.
Be sure to hold the presser plate !4 and the presser bar lifter lever rubber !5 so that they do not fall.
6. Remove all parts connected to the plunger r by lifting them upward.
!4
!5
u
q
e
t
r
o
!1
!2
i
!0
!3
w
u
q
e
y
r
o
i
!0
