11
BAS-311E.311EL.326E.326EL
Chapter 2. Disassembly
Chapter 2. Disassembly

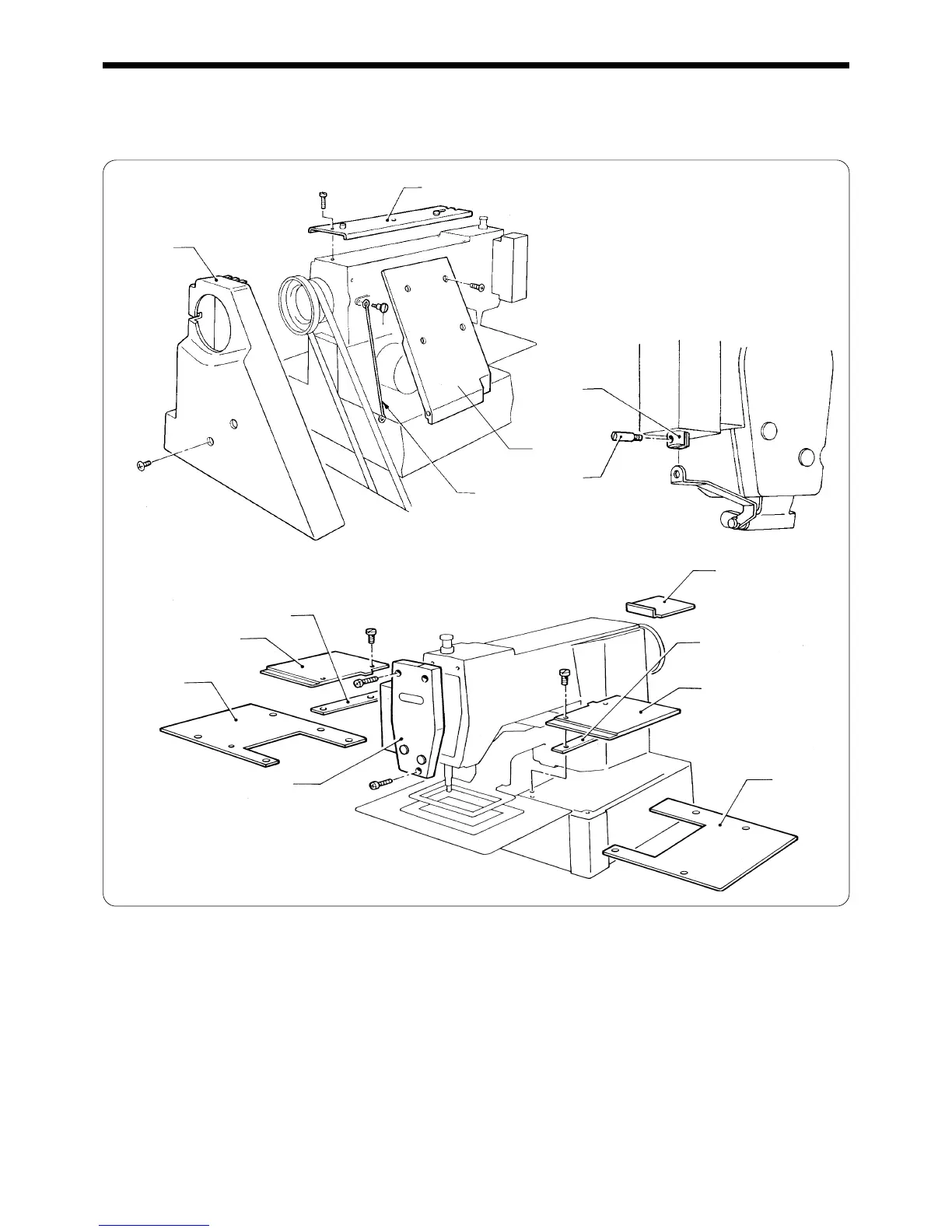

1. Covers (1) 311E
1. Remove the screw, the top cover q, the belt covers w and the rear cover e.
2. Loosen shoulder screw r and remove the work clamp lifter connect rod t.
3. Remove the plunger pin u from the plunger y.
4. Remove the screw and the face plate i.
5. Remove the screw and the X-feed bracket covers o on the right and left and cover spacer !0 Y-feed bracket cover !1.
6. Remove the screw and XY-feed base covers (L) !2 and (R) !3.
w
u
q
e
y
t
r
o
!2
!3
i
!0
o
!0
!1
