90
BAS-311E.311EL.326E.326EL
Chapter 6 Power supply and electrical parts adjustment

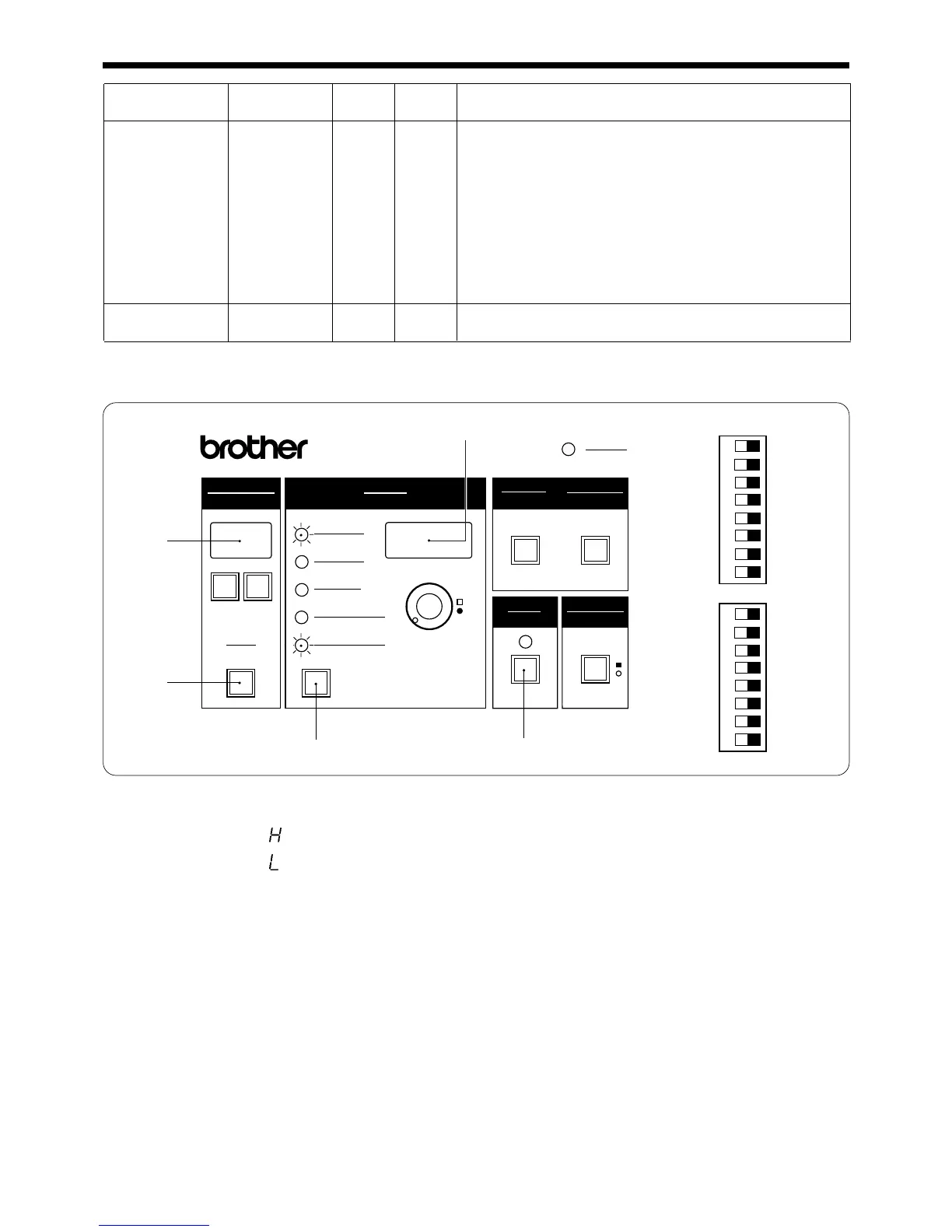

7. Checking the input sensor and DIP switch input
1. When the SPLIT NO. indicator q is lit and the R/W switch e is pressed while the TEST switch w is being pressed, the
X-SCALE indicator r will be lit and the state of the X home position signal will appear on the display t.
■ When sensor is ON
■ When sensor is OFF
2. Each time the MENU switch y is pressed, a different indicator will illuminate and the operating condition for the
corresponding item will appear on the display.
¡When X-SCALE indicator is lit : X home position sensor
¡When Y-SCALE indicator is lit : Y home position sensor
¡When SPEED indicator is lit : Needle up signal (synchronizer)
¡When B.T. COUNTER indicator is lit : 24-split signal (synchronizer)
¡When SPLIT ON. indicator is lit : Needle down signal (synchronizer)
3. If the settings for DIP switch A at the side of the operation panel are changed at this time, the changed switch number
will appear in the left digit of the PROGRAM NO. display u.
4. If the settings for DIP switch B are changed at this time, the changed switch number will appear in the right digit of the
PROGRAM NO. display u.
memo-3A
Possible setting
range
1-3
Units
----
Initial
value
2
Explanation
Change speed limit by stitch length.
(Max. speed remains same)
1:Speed limit by stitch length is up,sewing speed increases.
2:Standard
3:Speed limit by stitch length is down, sewing speed
decreases.
* In case drifting problem occurs at a part of large stitch
length, select 3.
* If you select 1, Please be careful because drifting might
occur depending on sewing condition.
SW No.
memo-3B -
memo-3F
----
----
0
----
Ï
プログラプログラムNO.NO.
PROGRAM NO.PROGRAM NO.
メニュー
MENU
下糸カウンタ
ー
B.T. COUNTER
スプリットNＯ.
SPLIT NＯ.
横倍率
X
-
SCALE
縦倍率
Y
-
SCALE
スピ
ー
ド
SPEED
読/書
R / W
BAS-300E series
